Low Headroom Electric Chain Hoist 5 Ton, H Beam Hoist
Electric chain hoist 5 ton, low headroom hoist design, pendent control electric hoist for sale New Zealand. Check low headroom electric chain hoist 5 ton specification now.
| Application | Material handling, lifting, positioning, assembly, maintenance, loading/unloading, |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Customized material handling cranes solutions available for indoor, outdoor, hazardous, corrosive, cleanroom, and heavy-duty industrial applications. |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Electric Chain Hoist Crane
Tags: electricchainhoistcrane,5ton
Your Trusted Overhead Crane Manufacturer & Supplier
5 Ton Low Headroom Electric Chain Hoist for Sale
Low Profile Motorized Chain Block for H beam
Electric chain hoist 5 ton, low headroom hoist design, pendent control electric hoist for sale New Zealand. Check low headroom electric chain hoist 5 ton specification now.
Basics of 5 ton low headroom electric chain hoist for New Zealand
- Crane Type：5 ton low headroom electric chain hoist
- Date of Placing Oder：2018.09.18
- Date of Delivery ：2018.10.1
- Way of Transportation： By air, to Newzeland.
- Way of Payment：TT 50%
- Destination country： New Zealand
- Destination port：FOB, Qingdao
- First Contact：2016.1
5 ton electric chain hoist main specifications & general requirements
Electric hoist type |
low headroom electric chain hoist |
Working Class |
M3 |
Capacity |
5 ton |
Lifting Height（M） |
6 m |
Crane control |
Pendent control |
Voltage |
400v,60hz,3p |
Color |
Yellow |
Quantity |
2 |
Customized features of 5 ton low headroom electric chain hoist for sale New Zealand
- low headroom chain hoist speed: Lifting speed 0.9/2.8m/min, running speed 21/5m/min
- Two electric hoists can be raised and lowered at the same time and on the other hand can be be used alone
- There is an aviation plug with IP54protection grade, used on the electric chain hoist, which makes the replacement of pendent control line easy.
- Surface anti-corrosion treatment, used in galvanizing workshop
- Schneider for electrical, Shanghai Dedong IP65 for hoist motor
- The low headroom electric chain hoist will be installed on a H beam with a width of 460mm .
- The FEC chain is nickel-plated, for the galvanizing workshop.
Customs declaration information registration
- The actual Chinese and English name of the goods: electric hoist
- Chinese and English name of cargo declaration: electric hoist
- Inland transportation cost from factory to port: USD170
- Air freight: USD2030
- Premium: 0

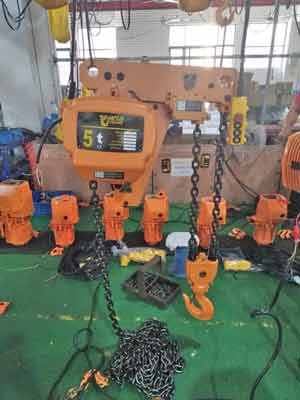

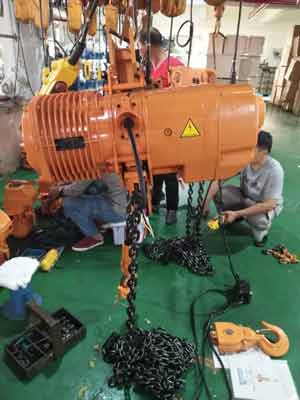

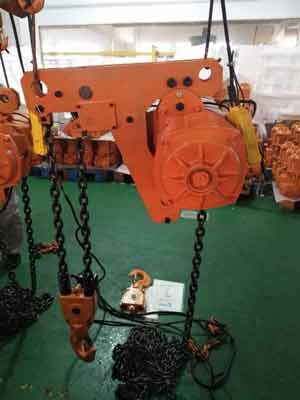

Gallary of 5 electric chain hoist for sale New Zealand
