Rubber Tire Gantry Crane Tailored Work Platform for Valve Welding
Content Quick Link
Rubber tyred Gantry Crane designed with electric chain hoist & workstation platform for welding & assembling embed valve of LNG gas storage equipment.
Lifting requirement
In order to solve the lifting requirement during the work of welding and assembling the embedded valve of the LNG gas storage equipment of the world-renowned cryogenic equipment manufacturer, customized rubber tire gantry crane with innovative concept is provided.

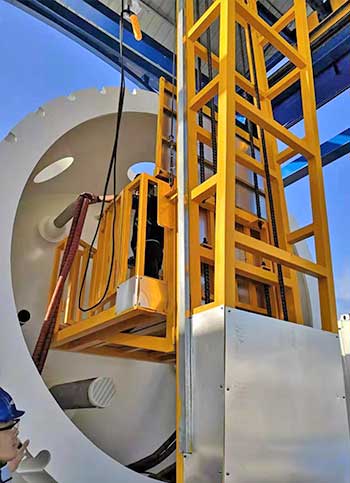

Portable gantry crane customized for valve welding

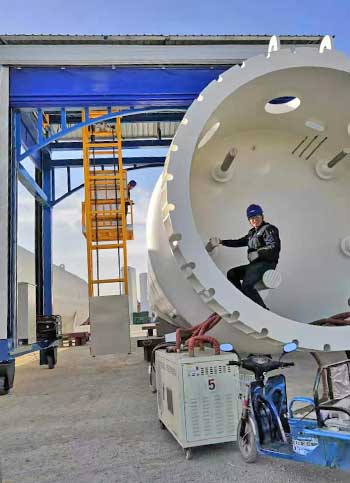

Portable gantry crane customized for valve welding
Customized rubber tire gantry crane & work platform
A trackless rubber tire gantry crane with self power generating design is combined with a lifting platform into a innovative lifting and workstation platform solution.

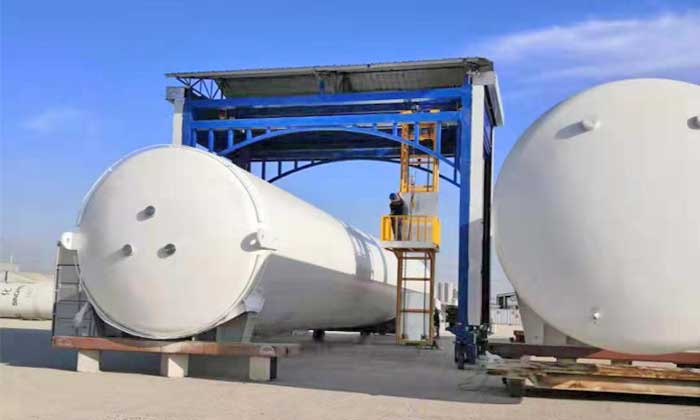

Travelling and moving of Rubber tire gantry crane
Working platform of the customized solution
Features of tailored portable rubber tyre wheel mounted gantry crane
The rubber tyred gantry equipment has made a lot of innovations from design to research and development, to production and debugging. The specific aspects of the tailored portable gantry crane are as follows:
Tire gantry crane system adopts the four-wheel driven system, equipped with a three-in-one medium and large variable speed motor, and the steering system adopts a steering wheel type ring gear steering motor, together with PLC automatic angle sensor control, to make the whole gantry crane system flexible on the in-situ steering control.

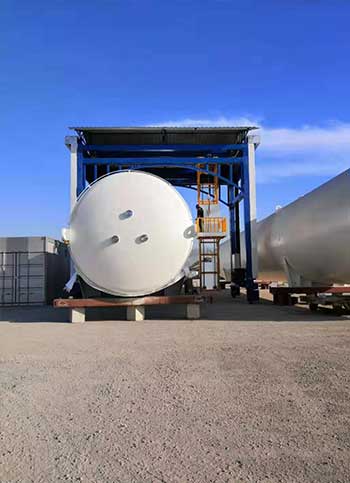

portable rubber tyre wheel mounted gantry crane

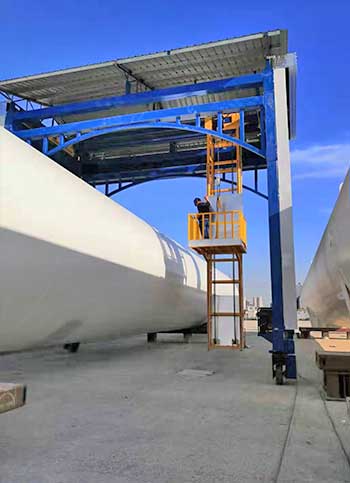

portable rubber tyre wheel mounted gantry crane

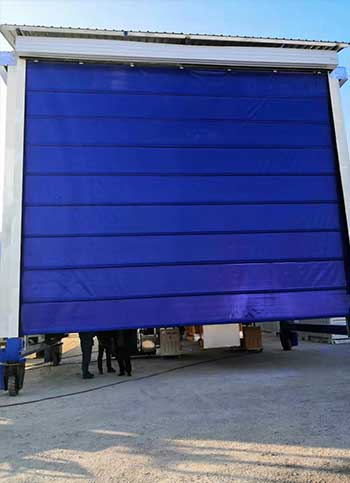

In order to meet the windproof requirements of outdoor valve welding operations, the workstation is equipped with a color steel roof, and fast stacking doors are installed on three sides. When the platform is transported to the working station, covering at the end of the tank body and the stacking door is lowered to form a working room and a relatively comfortable workshop for welding workers, which greatly improves the working environment in the work area.

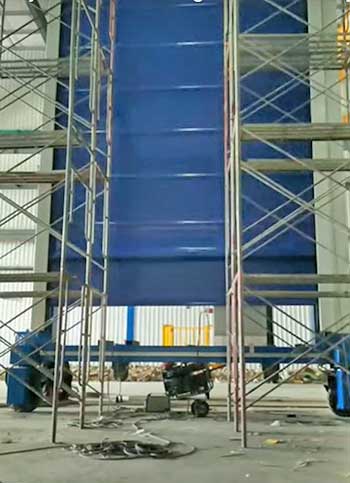

Automatic door to form comportable working environment for workers to improve efficincy
Automatic door to form comportable working environment for workers to improve efficincy
The power of the whole vehicle adopts a silent diesel generator set, which cuts off the limitation of the towing cable operation on the working area of the platform.
The overall design of the workstation is beautiful and simple, and the arc-shaped arch is designed to match the tank body, which integrates the soft beauty into the industrial equipment.
Create value for customers and make work easier, as a professional supplier of non-standard lifting equipment, we will do better!
