Single girder overhead travelling crane, Top running crane

1- 20 ton single girder overhead crane, Robust bridge crane girder, Durable single girder crane, Free single girder eot crane drawing pdf, Best value single girder overhead crane for you!

Lifting Capacity 1ton -20 ton
Lifting Height 6m - 30m
Crane Span 7.5m-28.5m
Working Class A3, A4

Category: Overhead Crane

Your Trusted Overhead Travelling Crane Manufacturer & Supplier

Single Girder Overhead Travelling Crane, Economical Top Running Crane
Typical Chinese Style Wire Rope Hoist Cranes

LD Single girder overhead crane offer 1 stop services for best value overhead crane solution for your workshops. 1- 20 ton single girder overhead crane,Robust overhead travelling bridge crane girder, Durable single girder crane, Free single girder eot crane drawing pdf, Best value China single girderoverhead crane for you!

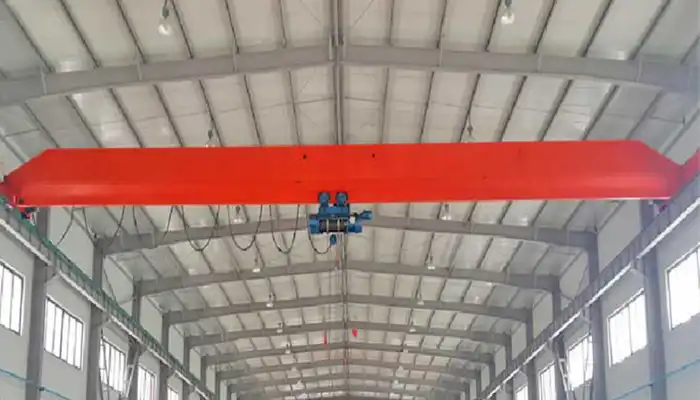

Top running single girder overhead crane

The LD China type crane is a traditional single girder overhead crane equipped with Single speed /double speed wire rope hoist or electric chain hoists for material handling with the capacity up to 20 ton which is an very cost-effective overhead crane solution for small and medium workshops for material handling.

Single girder overhead crane China

Man parameters of single girder overhead crane

  • Overhead crane type: LD traditional China crane type single girder overhead crane
  • Lifting capacity of single girder eot crane :1t-20t
  • Lifting Height of single girder eot crane :6m-30m
  • Span Length of single girder eot crane7.5m-28.5m
  • Working Class of single girder eot crane :A3, A4
  • Ambient Temperature:-20℃-40℃

Main structures & components of the single girder overhead travelling cranes

The LD type single girder overheadcrane is consisted of single bridge beamgirder, two crane rails, end trucks/ end carriages, two runway beams and aoverheadhoist to handle load that moves on the bridge crane beam. The end trucks run on the crane rails which are fixed on the overhead runway beams. For the medium and heavy loads handling is various occasions, the China crane type LD single girder overhead crane is one of the most cost effective lifting equipment for your selection.

Single girder overhead crane China

3 D presentation

Single girder overhead crane China

 LD single girder overhead crane drawing for your reference

Applications of China type LD single girder overhead crane

Single girder overhead travelling eot cranes provide the greatest flexibility for the covering area and the crane movement control for being installed on top of the workshop in the factory, taking the least floor space and meeting the least obstacles in the covering range of the movement, which makes the single girder eot crane widely used in various applications:

LD series single girder overhead crane usually used for general material handling in various places such as plant, warehouse, stock ground, and other different places, such asaccessories manufacturing workshop, tube convey plant working cell, storage warehouse,, parts maintenance, etc.The LD single girder crane is prohibited to be usedin the explosive combustible, corrosivesor other dangerous application environment which needs customized crane designs.

For decades' endeavor, as one of the top-ranking single girder overhead cranes manufacturer, our China type single girder overhead crane is adjustable to meet the changing demands. The single girder crane is easy be tailored basedon the specialized conditions of your facility and the variety of the productions and loads and even your future plan.

Benefits & Featuresof LD single girder overhead travelling crane

The single girder overhead cranes are designed to meet a variety of different applications. The single girder crane is able to provid eexcellent performance at the most cost effective with no need of any compromise.

  • Crane girder: welded box crane girder with, high strength and durability
  • End truck/ End carriage: welded crane box girder construction, torsionally rigid
  • Travelling wheels:Crane wheels with hardened steel surface with highly wear-resistant
  • Connections between the cross girder and end carriage– manufactured to precise machined tolerances for minimum wear
  • Optional lifting hoist:Electric wire rope hoist, Electric chain hoists, Low headroom hoist,
  • Power supply: Adopting crane sliding contact line to ensure high safety.
  • Crane Control: Crane Pendant suspended for separate travel on the crane girderand crane radio remote control is optional.
  • Girder crane coating: Cut to tail manufacturing. Normally, eye-catching yellow.Is the main color for the single girder crane.

With advanced crane technology, the LD type girder crane can move the load to the designated position with high precision. With compact crane design, the single girder overhead crane can minimize the dead weight which will lower your overhead crane cost and other relating building cost, etc That is to say, the higher efficiency to the overhead girder crane and lower cost to you. Our single beam overhead cranes will travel better and work longer but with very minimal crane service!

Single girder overhead crane China

Main Girder
Strong welded box type with I beam track Connected by flange and bolts at the cutting point

Single girder overhead crane China

End Truck
1 Set with two pieces including wheels, motors, gearbox and rubber buffers.

Single girder overhead crane China

C Steel Trolley Cable
Special design for flat cable with first pulley, middle pulley and end pulley to make main girder look tidy

Single girder overhead crane China

Wire Rope Electric Hoist - Chinese style economical rope hoist
Color can be customs made, stable lifting and cross travelling, lower noise

Single girder overhead crane China

Wireless Remote - single girder overhead crane control
Telecrane Brand, normally we will send double transmitter and one receiver

Single girder overhead crane China

Runway & Bus Bar
Runway with accessories like hooked nail. Bus bars with current collector and tensioners

Offering of single girder overhead cranes

The single girder overhead crane consists of one travelling girder beam supported on each side by an crane end truck/ end carriage. The crane hoist commonly travels on the bottom flange of the travelling bridge, to carry loads horizontally. According to different standards, the single girder electric hoist cranes can be grouped into different groups, such as

  • Box girder single girder overhead crane vs. Ibeam single girder overhead crane
  • Wire rope hoist single girder eot crane, vs Chain hoists single girder eot crane
  • Traditional Chinese type single girder overhead crane vs. European standard single girder overhead cranes, etc.

The single girder overhead crane crane is less expensive because of the following reasons:

  • Low crane cost for only one travelling bridge beam girder is needed tosupport and move the trolley and hoist
  • Lower cost in freight.
  • Easy crane installation
  • Hoist trolleydesign is easier than thatof double girder overhead crane.

Get your customized single girder overhead crane

As an experienced overhead crane manufacturer and supplier, various types of single girder cranes are provided including serial of single girder gantry crane and different series of single girder overhead cranes, etc. The single beam overhead travelling crane offering are as follow for your reference. Custom made single girder eot crane is also available.

Thecustomized single girder overhead cranes means the single girder cranes are perfectly meet the needs of your requirementand your application environment in crane size, lifting capacity and crane lifting height, etc. If you need custom made single girder eot crane, please leave us the main parameters of the crane you need or the dimensions of your workshop which the eot crane will be installed. It would be better to have a drawing for reference. Please contact us for your best value single girder eot crane.

6.3 ton overhead crane kit for sale Philippines, complete single girder top running overhead crane system, low headroom design for workshop indoor use.

Free consultation to Confirm Parameters & Specifications and Get

Latest Crane Price & Crane Rate.

  • Types of overhead cranes : _______?
  • Optional: Overhead travelling crane, goliath gantry crane,Slewing jib crane, Single girder or double girder crane,small portable crane or kbk crane, etc.
  • Capacity of overhead crane: _______?
  • Optional: 0.25ton, 0.5 ton, 1 ton, 2 ton, 3ton, 5 ton, 10 ton,15ton, 20ton, 25 ton, 30ton,35ton, up to 550ton, etc.
  • Crane span & lifting height : _______?
  • Crane travelling length : _____?
  • Control of overhead crane:_______?
  • Optional: pendant/ remote/cabin control
  • Voltage supply of overhead crane:_____?
  • Eg,: 380V50/60HZ,3Phase or others,etc.
  • Application/usage of crane:_______?
  • Eg,: Steel mill, ,injection mold, cement,stone, concrete,granite, general manufacturing, etc.
  • Just leave a message via the contact form and our hoist and crane engineer will contact you with in 24working hours.
