41 Ton Container Gantry Cranes for Uzbekistan | Container Crane Project

Container gantry crane 41 ton project for Uzbekistan Automobile industry. Check 41 ton rail mounted gantry crane specifications & production video now.

Crane type Rail mounted gantry crane for container handling
Crane capacity 41 ton
Crane span 32 m
Lifting height 15.2 ( 4+ 1 containers )
Voltage 380V,50HZ,3P
Installation site Uzbekistan

Category: Container Crane

Port Container & Railway Container Crane Manufacturer & Supplier

Rail Mounted Gantry Crane
41 Ton Container Crane Uzbekistan Project

Container gantry cranes, including the rmg crane and rtg crane, container straddle carriers, railway container cranes, and port container cranes, etc. The container gantry cranes are used for port and railway bulk container handling  at container terminals.

Project info of 41 ton container gantry crane for sale Uzbekistan

Rail mounted gantry crane for sale Uzbekistan for container handling, capacity 41 ton, 4+1 containers. Check rmg container gantry crane specifications now.

  • Types of Cranes:Rail Mounted Container Gantry Crane
  • Date of Placing Order: 2021-06-24
  • Date of delivery : 2021.12.22
  • Transportation :Railway
  • Payment: 30% TT prepaid, 35% TT completed main steel structure production, 30% TT before delivery, 5% TT installation completed
  • Destination port: CIP Pitnak
  • Destination country:Uzbekistan
  • First contact:2015-3-21

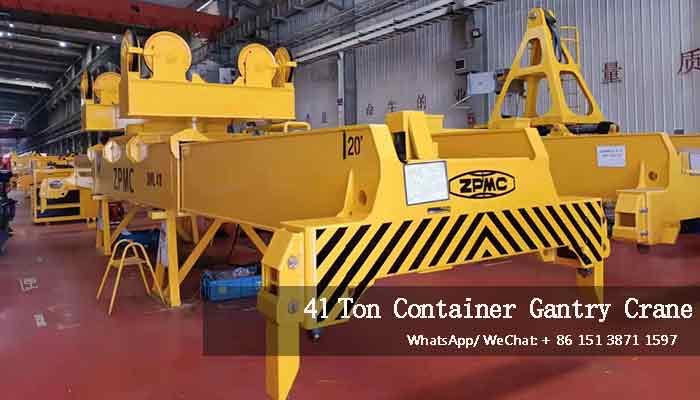

41 ton container spreader for Uzbekistan rail mounted gantry crane project

41 ton container spreader for Uzbekistan  rail mounted gantry crane project

Main Specifications of 41 ton container gantry crane Uzbekistan


1 set

Product Name

Rail mounted container gantry crane

Crane Model


Lifting capacity

41 ton, with no spreader, total capacity 55 ton

Crane span

32 m

Lifting height

15.2 m (4+1)container

Working class


Power supply


Crane control

Driver's cabin control, moving with crane trolley




Outdoor use

Customized features of 41 ton rmg gantry crane

  • 1 spreader: brand Zhenhua 360-degree rotating and retractable 20-foot, 30-foot, 40-foot containers,
  • Single-pole sliding wire: 4x350m 1000A, including relays, etc. Sliding line color requires blue

3, Container gantry crane requirements:

  • The total lifting capacity of the container crane is 55 tons, the lifting capacity under the spreader is 41 tons, and the lifting height is 15.2 meters. The span is 32m, the total gantry crane cantilever length is 9 meters on both sides, and the effective cantilever length is 6 meters on each side
  • Lifting speed with full load of the rmg container crane 0~18m/min, no load 0~25m/min, trolley running 0~60m/min, trolley running 0~80m/min
  • Motor of container crane: Running motor SEW, hoisting motor ABB, bearing SKF, electrical Schneider.
  • The customer's track model is P65, the control input voltage is 220v, the output is 48v, the total power is 283.6kw, and the maximum wheel pressure is 310KN
  • Main hoist for container gantry : 2 ton -27m maintenance hoist in SEW configuration (see reference drawings).
  • Safety requirements of rmg container crane: Phase sequence protection, anti-collision system, overcurrent protection, phase-misalignment protection, overload protection, lifting limit, running limit, grounding protection system, emergency braking system, sound and light alarm, operation monitoring System and standard monitoring system, high-rise safety fence, windproof boots, lighting above the driver's cab and in the working area of the gantry crane, laser infrared sensors are installed in each movement direction, the trolley power supply 7-shaped frame is lengthened to accommodate the power supply pulley when the trolley is at the end of the bridge , Under the bridge and under the outriggers, the camera monitoring system is installed, the pedestrian passage along the full length of the bridge, and the manual rail clamping system. Safety sensors, PLC system. Anemometer, lightning rod.

4, Accessories:
2 sets of brake pads, 10 couplings, 5 washers, 5 lifting limiters, 5 carbon brushes, 5 emergency buttons, 2 electric control coil controller contactors, 2 spreader lights, 2 sets of bearings, 180m wire rope, 4 cab lights.

Gallary of 41 ton container gantry crane for sale Uzbekistan

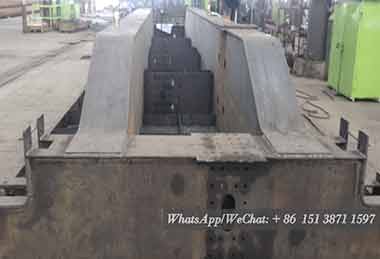

Steel structure of 41 ton rail mounted gantry crane for container handling for Auotomobile industrial in  Uzbekistan

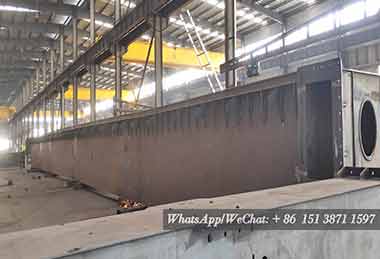

Main girder of 41 ton double girder overhead crane  for sale Uzbekistan

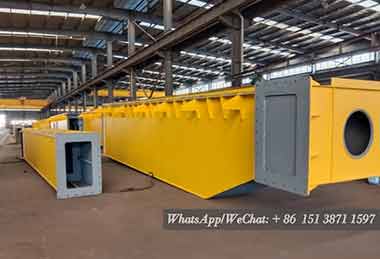

Painted main structure of 41 ton container gantry crane for sale Uzbekistan

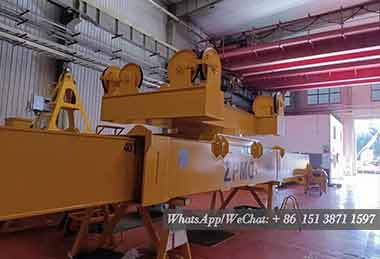

41 ton container spreader for rmg gantry crane Uzbekistan

Production video of 41 ton rail mounted gantry crane for sale

Types of Container handling Cranes

Main specifications of RMG container crane

  • Types of container gantry crane: RMG Crane
  • Lifting capacity of rmg gantry crane: 400t, 100t, 130t, 100+100t
  • Span of rmg container crane : 18~36m
  • Container dimensions of container gantry crane: 20', 40', 45'

Main specificatiosn of RTG Crane

  • Type of container gantry crane : RTG Crane
  • Capacity of container lifting crane : 35t, 40t
  • Working level of container handling crane : A6, A7, A8
  • Span of rubber tyred container crane : 23m, 27m
Main specifications fo container straddle carrier
  • Types of container cranes: Straddle Carrier
  • Capacity of straddle carrier : 35t, 60t
  • Container Layers of straddle carrier : Max. 4

Railway container crane specifications

  • Container crane type: U frame gantry crane for railway application
  • Lifting capacity of railway container crane : 400t, 100t, 130t, 100+100t
  • Span of railway container crane: 18~36m
  • Container dimensions of railway container crane: 20', 40', 45'
