Mining winch
Mining winch & types of mining winch systems for gold, copper,silver, iron, zinc & coal mine.Underground mining winch & explosion proof winch for sale.
| Model | JTK, JTP, JKB, JTPBJZM, JZ |
| Loading Capacity | 0.5 ton to 80 ton |
| Working Speed | 1.3~5.2m/min |
| Work Way | Friction; Electric |
Category: Winch
Your Trusted Mining Winch Manufacturer & Supplier

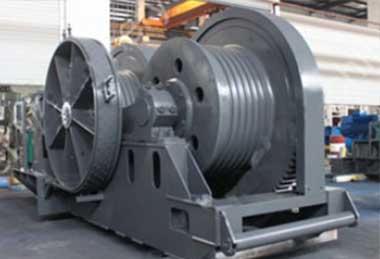

Underground Mining Winch System

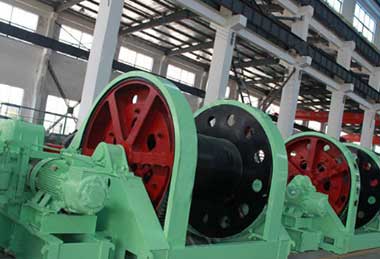

Mine Winch
Mine winch & mining winch for sale. What is mining winch or mine winch? A mining winch is usually an electric winch or a hydraulic winch used in and out mine for material handling such as carrying and dragging minerals. Base on different mining applications and requirements, the mining winch and the underground mining winch systems are customized to combat the harsh application conditions and to ensure safety and working efficiency
Overview of mining winch & underground mine winch
Mining winch and mine winch for material handling in gold mine, copper mine,silver mine, iron mine, zinc & coal mine.Types of mining winch systems are available including underground mining winch, explosion proof winch, friction mining winch, shaft sinking mining winch, and mining hoist winch, etc.

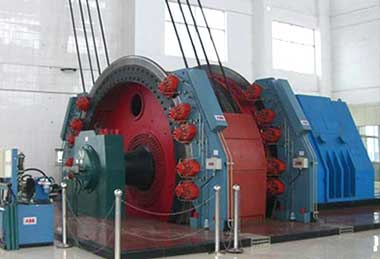

Mine Hoist Winch
The mining hoist winch is mainly adopted in coal, and other various metal and non-metallic mines for pulling and hoisting in the general application . The common used mining hoist winch can be processed with tailed hoisting and pulling winch configuration with high advanced PLC control system, high speed and high lifting capacity,etc.
Mine hoist winch
Model of mining winch : JTK-0.8×0.6
Speed of mining hoist winch: 1.3 m/s
Width of mining hoist winch: 800mm
Lifting capacity of mining hoist winch: 15 KN
Max.diameter: 14 mm
Mining hoist winch for sale.Tailored mine winch are available. Contact us to get your mine winch design & specific mine winch price.

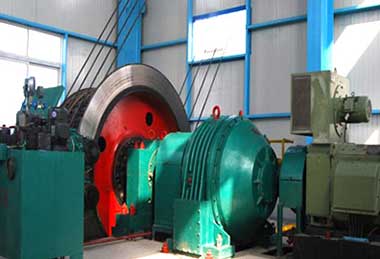

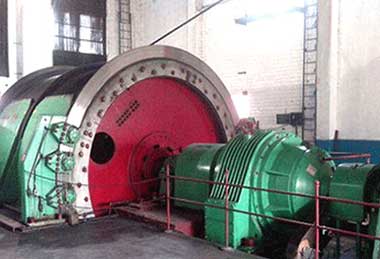

Explosion Proof Mine Winch
Mining explosion proof winch has a wide application and high safety standards which is used in coal mine, metal mine and non-metallic mine in vertical shaft or inclined shaft to hoist or lower coal, material, person and equipment, etc. The explosion proof winch is designed with explosion proof parts and components to ensure safety in the hazardous application where may have the potential risk of the explosive and flammable. The exploison proof mining winch are also can be designed with high advanced PLC control system.
JKB/JTPB Explosion Proof Mine Hoist Winch
Model of mining winch: JTPB-1.2×1 explosion proof winch
Width of explosion proof winch: 1000 mm
Speed of explosion proof winch: 2/2.5 m/s
Breaking force of explosion proof winch: 270 KN
Max.diameter: 20 mm
Mine of explosion proof winchfor sale.Tailored mine winch are available. Contact us to get your mine winch design & specific mine explosion proof winch price.

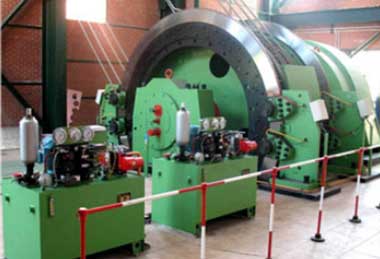

Friction Shaft Sinking Winch
Friction shaft sinking winch is a specially designed mining winch which are mainly used for coal, metal ore and non-metallic mineral suspension Vertical Shaft excavation, water mercury, water pipes, templates, cables and other excavation equipment, etc. The friction type mining winch also can be used to replace construction winch for construction and ground material handling with the features of double drums design, large rope capacity, slow speed and stable operation.
Model of mining winch: 2JZM-25/800
Work type of mining winch: Friction
Pulling load of mining winch : 250 (KN)
Diameter: 52 (mm)
Mine winch for sale.Tailored mine winch are available. Contact us to get your mine winch design & specific mine winch price.

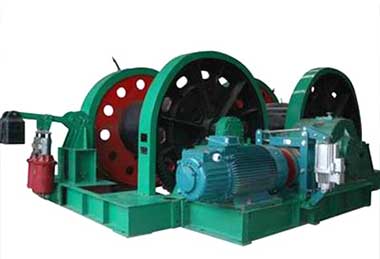

Shaft Sinking Winch
Shaft sinking winches is a special designed mining winch which are mainly used for coal, metal ore and non-metallic mineral suspension Vertical Shaft excavation, water mercury, water pipes, templates, cables and other excavation equipment,etc. The shaft sinking winch are featured as single drum, big load capacity, slow speed which can be used as construction winch for construction and ground handling,etc.
Model: JZ-10/800
Steel rope max static tensity: 100 KN
Rope capacity: 800 m
Steel rope diameter: 32 m
Motor power: 22 kw
Mine winch for sale.Tailored mine winch are available. Contact us to get your mine winch design & specific mine winch price.
Advantages of electric mine winch system
- High Performance- Accurate operation,precise spotting control .reliable and stable performance, and long lasting services,
- Excellent Safety- Various of safety devices are equipped and adopted to ensure safety of operator and winch such as drum and control guard and remote control , etc.
- Durability- Made of high quality materials, our mining winches are with maximum durability and guaranteed to achiever a longer working life.
- Explosion proof for hazardous application - Mining winch with explosion proof winch designs are widely used in hazardous application where the flammable or explosive gas may exist to ensure safety.
- Process design, tailored winch solution - For different applications and operation requirements, tailored mining winch solutions are provided to meet your needs with competitive price.
Mine winch design with explosion proof feature
For the hazardous applications where may have the flammable or explosive gasses or dusts, the design of a winch is usually with the explosion proof feature. The explosion proof winch is usually configured with the parts and components including:
- Explosion proof motor with explosion-proof level of IP66 and F class insulation.
- Controls- Control cabin and remote control. The control cabin is designed for hazardous atmosphere with explosion-proof enclosures.
- Explosion proof limit switch is adopted to secure the operation of mining winch.
- Special paint finish is used for better corrosion resistance, durable and longer working life.
Options and winch accessories for tailored mining winch
Designed for vertical hoisting or horizontal pulling, the mining winch comes in a variety of options and mine winch accessories to fit your specific setup including but not limited to:
- Single or double winch drum, grooved winch drum for improved wire rope spooling, guard for winding winch drum to protect the user
- Pressure roller for better wire rope winding on the winch drum
- Limit switch to limit upper and lower stroke, Load limiter
- Band brake fitted on the winch drum, Emergency crank,
- Clutch for pulling winches
- Control cabin, pendant control or wireless remote control
- Special coating paint for hazardous application
High Quality Mine Winch for Sale
With advanced design concept and processing facilities, all of our hoisting winch and pulling winch are produced with high and with complete after-sales service from winch installation and commissioning, staff training service, and 12-month warranty, etc. It's our services that makes us outstanding among the numerous manufacturers and suppliers.
Free consultation and a professional team are available to help you to find out the suitable mining winch system for your application. Contact us to confirm the specifications of the mine winch and mining winch you need and check what we can to do to save your money with our engineers.
Industrial Applications of Mining Winches
Mining winches are essential for lifting, pulling, and positioning heavy loads across underground, surface, and offshore operations. From deep shaft hoisting to inclined haulage and dredging support, selecting the right capacity and configuration directly impacts safety, efficiency, and long-term operational reliability.
Ming winch and mining winch systems is a vital mining equipment used in various mines and mining projects for material handling such as safe and efficient mineral hoisting, pulling or other operations, etc. The underground mining winch and mining winch systems are applicable to various mines such as coal mine,and metal mine including copper mine, iron mine, zinc mine, silver mine, etc.
The hoisting and pulling winches for mines are specifically designed and fabricated for the particular needs of each mine site and operating conditions, which are essential in deep mining and hydro-power industry to improve efficiency, productivity and enhance safety. According to your operation purpose and mining environmental condition, you can get an well fitted mining winch and mining winch system for your applications.
Shaft Hoisting in Underground Mining Operations
For deep shaft mining projects requiring reliable vertical lifting systems, mining winches are designed to handle high-capacity hoisting of ore, personnel, and equipment with precise control and safety redundancy.
- Typical capacity: 5–50 tons (up to 80+ tons in deep shaft systems)
- Typical loads: Ore skips, cages, drilling platforms
- Real scenario: Deep gold or copper mines using electric winches for 500–1500 m shaft hoisting
- Buyer focus: VFD control, multi-layer drum design, fail-safe braking systems
Inclined Plane Haulage for Coal and Mineral Transport
When conveying bulk materials on slopes where conveyors are inefficient, mining winches provide controlled pulling solutions for rail-mounted haulage systems in coal and mineral operations.
- Typical capacity: 3–20 tons pulling force
- Typical loads: Mine carts, coal tubs, ore wagons
- Real scenario: Coal mines using incline haulage winches on 10–25° gradients
- Buyer focus: Anti-runaway brakes, continuous duty motors, abrasion-resistant wire rope
Dragline and Scraper Operations in Surface Mining
In large-scale open-pit mining environments, mining winches deliver the high line pull required for dragline buckets and scraper systems handling overburden removal.
- Typical capacity: 10–100 tons line pull
- Typical loads: Soil, overburden, fragmented rock
- Real scenario: Dragline systems repositioning material across excavation zones
- Buyer focus: High torque output, shock load resistance, heavy-duty drum construction
Equipment Installation and Maintenance in Mining Sites
For precise positioning of heavy machinery in confined underground or plant environments, mining winches provide controlled lifting and pulling during installation and maintenance.
- Typical capacity: 2–25 tons
- Typical loads: Crushers, conveyors, pumps
- Real scenario: Underground installation using compact hydraulic winches in narrow tunnels
- Buyer focus: Compact design, remote control operation, smooth load handling
Tunneling and Shaft Development Projects
During shaft sinking and tunneling operations, mining winches are critical for continuous material removal and equipment handling under high-duty cycles.
- Typical capacity: 5–30 tons
- Typical loads: Muck buckets, lining segments, drilling tools
- Real scenario: Shaft sinking projects using winches for vertical material transport
- Buyer focus: Corrosion resistance, high-duty rating, automation compatibility
Emergency Rescue and Safety Operations
Mining winches dedicated to safety applications ensure reliable emergency retrieval and personnel evacuation in hazardous mining conditions.
- Typical capacity: 1–10 tons
- Typical loads: Rescue cages, personnel, emergency gear
- Real scenario: Emergency shaft evacuation systems with backup-powered winches
- Buyer focus: Redundant braking, backup power systems, safety compliance
Marine and Offshore Mining Support (Dredging & Subsea)
In offshore and dredging operations, mining winches are used for deploying and retrieving heavy subsea equipment in demanding marine environments.
- Typical capacity: 10–200 tons
- Typical loads: Dredging buckets, subsea tools, pipelines
- Real scenario: Seabed mining systems requiring deep-water winch operations
- Buyer focus: Marine-grade protection, large rope capacity, synchronized control systems
Bulk Material Handling in Processing Plants
Within mineral processing plants, mining winches support maintenance and material handling tasks where controlled pulling or lifting is required.
- Typical capacity: 2–15 tons
- Typical loads: Conveyor sections, hoppers, bulk containers
- Real scenario: Maintenance shutdowns requiring repositioning of heavy plant equipment
- Buyer focus: Energy efficiency, low maintenance, system integration
Mining Winch Buyer FAQs and Application Concerns
This section addresses the most common buyer concerns when selecting mining winches, including capacity sizing, environmental suitability, operational safety, cost considerations, and integration into real mining, industrial, and maintenance environments.
How do I determine the correct capacity for a mining winch?
The correct capacity is based on the maximum load, duty cycle, and safety factor required for your operation.
- Typical loads range from 2–10 tons for maintenance to 20–80+ tons for shaft hoisting
- Include dynamic and shock loads when calculating requirements
- Safety factor usually ranges from 1.5× to 3× of working load
Should I choose an electric or hydraulic mining winch?
Electric winches are ideal for precision and fixed installations, while hydraulic winches are better suited for heavy-duty and mobile applications.
- Electric: energy-efficient, ideal for controlled environments and workshops
- Hydraulic: high torque, better for offshore, rugged, and mobile operations
- Hydraulic systems handle shock loads more effectively
Can mining winches operate in harsh environments like underground or marine conditions?
Yes, mining winches are specifically designed to operate in extreme environments such as underground mines, dusty facilities, and corrosive marine conditions.
- Underground: requires sealed motors and dust protection
- Marine: needs corrosion-resistant coatings and materials
- High humidity or abrasive environments require enhanced sealing and protection
What types of loads are typically handled in industrial mining applications?
Mining winches are used to handle a wide variety of loads depending on the application and industry sector.
- Vertical lifting of ore skips, cages, and personnel
- Horizontal pulling of rail carts and haulage systems
- Positioning of heavy equipment such as crushers and conveyors
What are the main concerns regarding power supply and energy usage?
Power availability and energy efficiency are key considerations when selecting a mining winch system.
- Electric winches require stable and sufficient power supply
- Hydraulic systems require a power pack or diesel-driven unit
- Variable frequency drives (VFD) improve efficiency and control
What safety features should a mining winch include?
Safety is critical in mining applications, and winches must include multiple fail-safe systems.
- Fail-safe braking systems to prevent load drop
- Overload protection and load limiters
- Emergency stop and remote control capabilities
How do I compare the cost of different mining winch systems?
Cost depends on capacity, configuration, customization, and environmental requirements.
- Higher capacity systems cost more due to stronger components
- Automation and custom engineering increase pricing
- Explosion-proof or corrosion-resistant designs add cost
What installation environments and space limitations should I consider?
Mining winches are often installed in constrained or harsh environments, which affects design selection.
- Underground shafts require compact and space-efficient winches
- Surface yards allow larger, high-capacity systems
- Skid-mounted designs are used where space is limited
What maintenance is required for long-term operation?
Regular maintenance ensures safety, performance, and extended service life of the winch system.
- Routine inspection of wire rope and drum condition
- Brake system and motor maintenance
- Lubrication and replacement of worn components
Can mining winches be customized for specific applications?
Yes, most mining winches can be tailored to meet specific operational, environmental, and load requirements.
- Custom drum sizes and rope capacities
- Special coatings for corrosion or explosion-proof environments
- Integration with automation and control systems
Get your customized mining winch, cost-effective crane winch solution
Types of mining winches for sale, your winch shop on-line. No matter what type of mining winch, underground mining winch systems and winch accessories, you can get the right hoisting winch and pulling winch for your specific application and meet your operation requirement satisfactorily.
To provide your the specific mining winch, please help us to confirm the following information of the mining winch you need, which including the following specifications and parameters:
- Loading capacity of mining winch : _____________?(Ton/kN)
- Working speed of mining winch : _____________?(m/min)
- Wire rope length of mining winch : _____________?(m)
- Power supply of mining winch : _____________?
- Optional power supply of mining winch including 220V/230V/380V/400V/415V/440V,single or three phase, or customized.
- Functions or usages of mining winch : _____________? For horizontally pulling or vertically hoisting?
- Specialized requirements to get tailed mining winch design.
Send us a inquiry to get your tailored mine winch design and mining winch price.
