Lightweight Aluminum A-Frame Gantry Cranes: Portable & Rust-Resistant

Introduction: Why Choose Aluminum for A-Frame Gantry Cranes?

A-frame gantry cranes are widely used in small workshops, maintenance operations, HVAC installations, and temporary lifting sites where flexibility and ease of movement are critical. Traditionally made from steel, these gantries are strong but heavy, difficult to transport, and prone to rust without proper coating or maintenance. That's where aluminum A-frame gantry cranes come in.

Aluminum models are becoming increasingly popular—especially among mobile maintenance crews and small business owners—thanks to their lightweight construction and resistance to corrosion. If you need a lifting solution that can move with you, set up quickly, and stand up to tough environments, it's worth taking a closer look at an aluminum a frame gantry or aluminum a frame hoist.

Why More Buyers Are Turning to Aluminum:

• Lightweight yet strong
  You can often carry or roll aluminum gantries by hand without needing a forklift. It's easier on your team and quicker to reposition.
• Rust-resistant in harsh environments
  Aluminum doesn't corrode like steel, making it ideal for use near water, in marine environments, or even in outdoor service yards.
• Fast assembly, no special tools needed
  Most aluminium a frame lifting gantry systems are modular and designed for quick setup. Pin-in-place frames and adjustable height options are common features.
• Fits in tight spaces or mobile operations
  Because of their low weight and collapsible designs, aluminum gantries are perfect for vans, mobile repair trucks, and temporary job sites.

Whether you call it an aluminum a frame hoist or a portable lifting gantry, these cranes are built for real-world jobs where portability, speed, and minimal setup make a difference. And yes—it saves your back too.

What Is an Aluminum A-Frame Gantry Crane?

An aluminum A-frame gantry crane is a type of portable lifting equipment designed with a rigid A-shaped frame on each side, supporting a horizontal beam (or girder) across the top. This beam holds the lifting device—usually a hoist—that can travel back and forth along the span. The structure is built entirely from aluminum, making it lighter and easier to handle than its steel counterpart.

The key difference lies in the material. While steel gantries are known for high load capacity, aluminum gantries trade off a bit of lifting power for excellent mobility, quick setup, and corrosion resistance. These cranes are often mounted on wheels or casters, allowing them to be moved by hand or by one or two operators, even while loaded within rated capacity.

Ask for Aluminum A Frame Gantry Crane Price

Common Configurations and Capacities:

• Capacity range: 500 kg to 5 tons is typical for aluminium a frame lifting gantry models
  (Some heavy-duty designs go up to 10 tons, but most mobile units stay under 5 tons.)
• Adjustable height and span: Many models let you change the height and width to suit your space or load clearance.
• Hoist types: Can be paired with manual chain blocks, electric wire rope hoists, or air hoists—commonly called aluminum a frame hoist setups.
• Wheel options: Rigid or swivel casters, with or without brakes, depending on floor conditions.

Common Terms You'll See:

• Aluminum a frame gantry: Refers to the full gantry system made of aluminum
• Aluminum a frame hoist: Often used when discussing the lifting device paired with the gantry
• Aluminium a frame lifting gantry: A more international spelling but refers to the same equipment—emphasizing lifting use and portability

In short, this is a simple, durable, and user-friendly crane system that works well when lifting needs are light to moderate, but flexibility is a must. Whether it's in a repair workshop or out in the field, the aluminum A-frame crane gets the job done without weighing you down.

Key Benefits of Aluminum A-Frame Gantries

Aluminum A-frame gantry cranes offer a smart solution for industries that need mobility, ease of use, and resistance to harsh conditions. They're especially valued in maintenance, light manufacturing, and service work because they're easy to handle and don't demand a permanent setup. Let's take a closer look at why they're gaining traction among professionals.

Lightweight & Portable

One of the biggest reasons people choose an aluminum a frame gantry over steel is simple: it's light. Really light.

• Easy to move: Most units can be pushed or pulled by a single person, especially with swivel casters.
• No forklift needed: You can transport and assemble it without heavy equipment.
• Fits in service vans or pickups: Ideal for mobile teams working across multiple sites.
• Set it up where you need it, then take it down when done: That flexibility is hard to beat.

Whether you're servicing HVAC systems on rooftops or lifting pumps in a wastewater treatment plant, this crane moves with you—not the other way around.

Rust-Resistant & Durable

If you work in wet or corrosive environments, steel gantries can become a maintenance headache. Not so with aluminum.

• Corrosion-resistant: Aluminum naturally resists rust, which makes it ideal for outdoor work or near salty or humid environments.
• No need for special coatings: You don't have to worry about repainting or adding rust-proof layers.
• Cleanroom friendly: It doesn't shed rust particles or paint flakes, making it suitable for clean environments like food production or labs.

You can park it outside between jobs, rinse it off after use, and expect it to last for years without rust or corrosion eating away at the structure.

Tool-Free Assembly & Height Adjustability

One of the great things about most aluminium a frame lifting gantry systems is how easy they are to put together—and how well they adapt to different spaces.

• Quick pin-and-slot design: No welding or bolting required during setup.
• Adjustable height: Need extra clearance or want to lower the beam to load from the floor? Just adjust the legs.
• Breaks down into components: Easier to store and transport when not in use.

You can go from unloading the crane to lifting a motor within 20–30 minutes—without calling in a rigging crew. That's the kind of convenience that saves both time and labor.

Together, these benefits make the aluminum a frame hoist a practical choice for anyone needing mobile, reliable lifting power without all the weight and rust concerns of traditional steel.

Applications: Where Aluminum A-Frame Cranes Are Most Useful

Aluminum A-frame gantry cranes aren't just light and portable—they're incredibly versatile. You'll find them doing real work across a range of industries, indoors and out. If your job involves lifting equipment, tools, or components in spaces that change often or can't accommodate permanent cranes, these gantries offer a flexible and dependable solution.

Indoor Uses

Inside workshops and industrial buildings, aluminum a frame gantries shine in spaces where overhead cranes aren't practical or where loads need to be lifted in specific locations, not across an entire bay.

• HVAC installations and maintenance
  Move compressors or air handling units safely in tight mechanical rooms or rooftops with limited rigging space.
• Cleanrooms or controlled environments
  Aluminum's non-corrosive surface and clean, smooth frame make it suitable for pharmaceutical, food, or electronics manufacturing where hygiene matters.
• Maintenance workshops
  Ideal for motor, gearbox, or machine servicing where the load changes position, and the crane needs to be mobile.

In many cases, a portable aluminum a frame hoist can replace a permanent solution at a fraction of the cost and with much more flexibility.

Outdoor Uses

Don't let the clean finish fool you—these cranes are tough enough for outdoor work, too.

• Utility and service companies
  Lift pumps, generators, or transformers at remote or roadside locations. No power? No problem—manual hoists or air-powered models work anywhere.
• Construction sites
  Use them to install components, support small lifting operations, or assist with modular builds where space is tight.
• Marine and coastal operations
  Thanks to their corrosion resistance, aluminium a frame lifting gantry setups are a natural fit for ports, docks, and coastal environments.

They hold up well in the sun, salt, or rain, and their mobility makes them ideal for temporary or fast-moving projects.

Remote or Confined Lifting Jobs

These cranes come into their own when you're working in places where a truck crane or large gantry simply won't fit.

• Rooftops, basements, tunnels, and underground plants
  Carry parts in piece by piece, assemble on-site, and lift heavy gear where access is limited.
• Service vehicles and mobile repair teams
  Fits in the back of a van or pickup. Take it to the job, lift the equipment, and move on.
• Rental fleets
  Because of their flexibility and easy handling, aluminum gantries are common in equipment rental operations for short-term lifting needs.

Whether it's a short repair job or a week-long field project, aluminum a frame gantries give you lifting capacity without being tied down to one spot.

Aluminum vs. Steel A-Frame Gantry Cranes

Choosing between aluminum and steel A-frame gantry cranes depends on your specific job conditions—weight, environment, mobility, and how often you plan to move the crane. While both have their place in industrial lifting, aluminum a frame gantries offer some distinct advantages in the right situations.

Aluminium a frame gantry crane

Steel A frame gantry crane

Weight: Aluminum Is Up to 60% Lighter

One of the biggest differences is the weight. Aluminum cranes are much lighter than their steel counterparts—often by 50% to 60% for the same lifting size.

• Easier to move and position by hand
  No forklift or crane needed for transport or setup.
• Ideal for mobile work crews
  You can lift components by hand and roll them across flat surfaces with little effort.
• Safer for manual assembly
  Less physical strain during assembly and disassembly, reducing risk of injury.

If you're frequently setting up, relocating, or storing your gantry crane, aluminum just makes the whole job easier.

Corrosion Resistance: Aluminum Outperforms Steel

In wet, coastal, or chemical-heavy environments, corrosion is a serious issue. Aluminum has a natural resistance to rust and oxidation, which gives it a big advantage.

• Marine use: Ideal for ports, offshore service platforms, and shipyards.
• Humid environments: No paint peeling or surface rust like untreated steel.
• Cleanrooms and food plants: Won't flake or contaminate sensitive areas.

Steel cranes need powder coatings, galvanization, or regular repainting to match the durability of a bare aluminum a frame hoist.

Load Capacity: Steel Handles Heavier Lifting

This is where steel wins—if your lifting needs are beyond 5 tons, steel is often the better option.

• Heavier loads (5 to 20+ tons)
  Steel cranes offer higher rated capacities and more rigid frame structures.
• Long-span cranes
  Steel beams can handle longer spans with less deflection under heavy loads.
• Permanent setups
  If the crane stays in place and handles consistent, heavy-duty work, steel may be more cost-effective.

However, if you're usually lifting under 2–3 tons, aluminum often meets the need while providing easier handling and corrosion resistance.

When to Choose an Aluminum A Frame Hoist Over Steel

Opt for an aluminum a frame gantry if your work involves:

• Frequent setup and takedown across multiple sites
• Lifting tasks under 5 tons
• Work in marine, coastal, chemical, or humid areas
• Cleanrooms, food processing, or electronics manufacturing
• A need to load and unload equipment from trucks, pits, or rooftops

In short, when mobility, environment, and ease of use matter more than sheer lifting power, aluminum a frame hoists are the better fit. Steel may lift more, but aluminum goes more places—and it won't rust while it's there.

Types of Aluminum A-Frame Gantries Available

Aluminum A-frame gantry cranes aren't one-size-fits-all. In fact, there are several different configurations depending on how you plan to use them—indoors or out, stationary or mobile, light use or frequent setup. Understanding the types available can help you choose the right aluminum a frame gantry or aluminum a frame hoist for your operation.

Fixed Height vs Adjustable Height Models

Your lifting environment will determine whether you need a fixed or adjustable height gantry.

Fixed height aluninum gantry crane:

• More stable for repetitive lifting at a constant height
• Often used in small workshops or semi-permanent setups
• Fewer moving parts = less maintenance

Adjustable height aluninum gantry crane:

• Offers flexibility when working with different load sizes or work areas
• Useful for situations where headroom or clearance changes from job to job
• Easily raised or lowered with pin locks or telescopic legs

If you work in varying spaces—like maintenance in different buildings—adjustable height aluminum gantries can make your job smoother and safer.

Ask for Aluminum A Frame Gantry Crane Price

Collapsible or Knockdown Frame Types

Some aluminum gantries are built for ultra-portability. They break down into compact parts you can load into a van or carry by hand.

Knockdown frames:

• Disassemble into 2–3 main sections (legs and beam)
• Easy to store, transport, and reassemble at new locations
• Perfect for mobile technicians or field service teams

Foldable or telescopic frames:

• Some models feature foldable side frames or telescopic legs
• Save space when storing between jobs
• Ideal for those short on storage or working from a service vehicle

This is where aluminum really shines. You won't find many steel gantries with this level of mobility.

Ask for Aluminum A Frame Gantry Crane Price

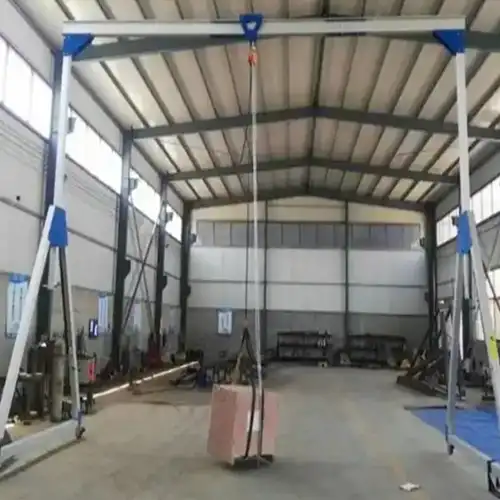

Integrated Aluminum A Frame Hoist Options (Manual or Electric)

An aluminum a frame gantry is only as good as the hoist it carries. The good news? You can pair it with different hoist types depending on your lifting needs.

Manual chain hoists:

• Lightweight, simple, and cost-effective
• Good for low-frequency or precision lifting

Electric wire rope or chain hoists:

• Faster and more efficient for frequent use
• Available in single-phase or three-phase options

Air (pneumatic) hoists:

• Ideal for hazardous environments or where electric power isn't available
• Often used in oil & gas or chemical industries

Ask for Aluminum A Frame Gantry Crane Price

Make sure the hoist capacity matches your gantry rating. And if you're buying a ready-to-use system, ask whether the aluminum a frame hoist is already included or sold separately.

Each type has its strengths. If you're constantly moving from site to site, go collapsible. If you're working in a fixed area, fixed height and wheels may be all you need. Either way, the right configuration can help you lift faster, safer, and with less hassle.

Maintenance & Safety Tips for Aluminum A-Frame Gantries

Keeping your aluminum A-frame gantry crane in good shape is key to safe and trouble-free lifting. Because these cranes are often moved around and set up by hand, a few simple maintenance steps can prevent accidents and extend the life of your equipment. Here's what you need to keep an eye on.

Regular Inspection of Joints and Pins

The connections hold everything together. Worn or loose pins can cause instability or even collapse.

• Check all locking pins, bolts, and fasteners for wear or damage before each use.
• Ensure pins fully engage and are securely locked in place—don't skip this step just because it looks okay.
• Look for cracks or bending in the frame near joints, especially if the gantry is frequently assembled and disassembled.

Check Wheel Locks and Casters

Your gantry needs to stay put when lifting.

• Test caster wheels regularly to make sure they roll smoothly without wobble.
• Engage wheel locks or brakes fully before lifting any load to prevent unwanted movement.
• Replace worn or damaged wheels immediately to maintain stability and ease of movement.

Lubricate Hoist Parts as Per Usage

Hoists—manual or electric—require care too.

• Follow manufacturer guidelines for lubricating chains, gears, and moving parts.
• Regular lubrication reduces wear and keeps hoisting smooth and safe.
• Clean any dirt or debris from the hoist to prevent jamming or damage.

Avoid Overloading — Follow Manufacturer Load Charts

This one's critical. Never guess the weight of your load.

• Always check the rated capacity of your aluminum a frame gantry and hoist before lifting.
• Stay within the specified limits including any safety margin recommended.
• Overloading not only risks dropping your load but can permanently damage the crane frame or hoist.

With these simple but important maintenance and safety habits, your aluminum gantry crane will stay reliable for years. Safety isn't just about following rules—it's about protecting your team and your equipment every single time you lift.

Conclusion: Invest in a Smart, Lightweight Lifting Solution

Choosing the right lifting equipment can make a big difference in your daily work. Aluminum A-frame gantry cranes stand out because they are lightweight, easy to move, rust-resistant, and quick to set up. These features make them a practical choice for many lifting tasks—especially when you need to work across different locations or tight spaces.

If your job calls for frequent, mobile lifting—whether indoors or outdoors—an aluminum a frame gantry offers the perfect balance of strength and convenience. They're designed to get the job done without the hassle of heavy steel cranes or permanent installations.

Ready to upgrade your lifting gear? Request a quote for your aluminum a frame gantry today and find the right model to match your needs. You'll get reliable performance, easy handling, and a solution built to keep your projects moving smoothly.
