2.5 Ton Mobile Gantry Crane for Construction Material Handling
2.5 Ton Mobile Gantry Crane for Construction Materials Handling on a Construction Site
A construction site is full of movement, changing conditions, and materials that need to be placed exactly where the team needs them. In situations like this, a mobile gantry crane becomes more than just a lifting tool—it becomes a practical, everyday solution that helps the site run smoothly. It allows contractors to lift heavy materials safely, move them across tight or busy areas, and position them at different levels without relying on fixed lifting equipment or manual handling.
Using a mobile gantry crane on this site makes sense for one simple reason: the materials being lifted vary in weight, size, and fragility. Some loads are as light as a few hundred kilograms, while others—like tiles, wet works pallets, or metal components—approach the upper range of the required capacity. Having a construction site material handling crane that can follow the work instead of staying in one place helps the team stay productive and reduces downtime caused by waiting for other lifting equipment.
Why a 2.5-Ton Capacity Was Selected
The choice of a 2.5-ton mobile gantry crane is not random. It is based on the actual lifting tasks the contractor deals with every day.
- Many construction materials on-site weigh between 800 kg and 2,000 kg, which fits comfortably within a 2.5-ton working load limit.
- The crane must handle pallets of tiles, wet works materials, doors, and metal components without pushing the equipment near its limits.
- A little extra capacity ensures safer lifting, especially when using lifting accessories like slings, spreader beams, or clamps.
In short, 2.5 tons is the "right-sized" capacity—strong enough for the heaviest materials on this project, yet still manageable, easy to move, and practical for daily use on a construction site.
About the Project Environment
This project involves more than just surface-level lifting. Part of the work requires lowering materials to underground levels, which means the crane must achieve a 9.5-meter lifting height, including the depth below ground.
- The site includes areas with limited access where larger cranes cannot enter.
- Materials must be lifted vertically down into a pit or basement area.
- The load types vary significantly—from precast wall accessories to sanitary ware—so the crane needs to be versatile and stable for different lifting tasks.
Because of this combination of underground lifting, mixed materials, and frequent movement, a mobile gantry crane is not only suitable—it is one of the most practical choices for the job.
Project Background
Site Usage Requirement
The crane is being purchased for the contractor's own site operations, not for rental or resale. This means the equipment must fit the team's daily workflow, withstand constant use, and remain easy for site personnel to operate without depending on external support.
The construction site itself creates a few challenges that call for a flexible and mobile lifting solution. Some areas have tight access where larger cranes or forklifts simply cannot reach. Other sections involve an underground working zone that requires precise vertical lifting to move materials down into a basement or service area. On top of that, the site handles a wide mix of materials—from precast elements to tiles, metal works, and doors—so the crane must adapt to different shapes, weights, and handling requirements.
To keep the project moving smoothly, the team needs lifting equipment that supports safe, quick, and repeatable operations throughout different construction stages. Instead of bringing in different machines for each task, a mobile gantry crane offers one solution that covers most of the lifting needs on-site.
- Works for both light and heavy loads
- Reduces manual handling risks
- Can adjust to the changing layout of the site
- Helps maintain consistent productivity without waiting for third-party lifting equipment
Lifting Scenarios
This project involves several types of lifting tasks, and the 2.5-ton mobile gantry crane must be able to handle all of them reliably.
One common scenario is unloading precast panels and accessories from delivery trucks and moving them directly to the installation area. These items are heavy but compact, and they require smooth lifting to avoid damage.
Another frequent task is lowering materials into the underground zone. The required lifting height is 9.5 meters, which includes both the surface level and the depth below ground. The crane needs to move items such as cement pallets, tiles, metal frames, and sanitary ware safely into the basement without swinging or impact.
Because the crane is mobile, it is not restricted to a single lifting point. The team can relocate it across the site as needed—supporting concrete work one day, material staging the next, and installation work the day after.
Typical usage patterns include:
- Moving precast elements from truck to staging area
- Transporting materials across open slabs or corridors
- Lowering pallets and components into basement levels
- Supporting installation teams working in multiple zones of the site
This flexibility is exactly why a mobile gantry crane fits the needs of this construction environment.
Materials to Be Lifted
On this construction site, the 2.5-ton mobile gantry crane will be used to lift a variety of construction materials. These materials vary in weight, size, and handling requirements, making flexibility and precision essential for safe and efficient operations.
Construction Materials Overview
Typical items include:
- ALC Blocks – lightweight but bulky, often moved in pallets.
- Cement and Sand Pallets – heavy and dense, requiring stable lifting.
- Metal Structures – beams, frames, or fabricated components needing careful alignment.
- Precast Accessories – panels, wall segments, or other modular elements.
- Floor and Wall Tiles – dense and fragile, demanding smooth handling.
- Doors – including fire-rated, glass, and standard doors.
- Sanitary Wares – fragile items like sinks or toilets that need gentle placement.
Using one crane to handle all these materials simplifies site workflow, reduces manual labor, and ensures that even heavy or awkward loads can be moved safely between storage, staging, and installation areas.

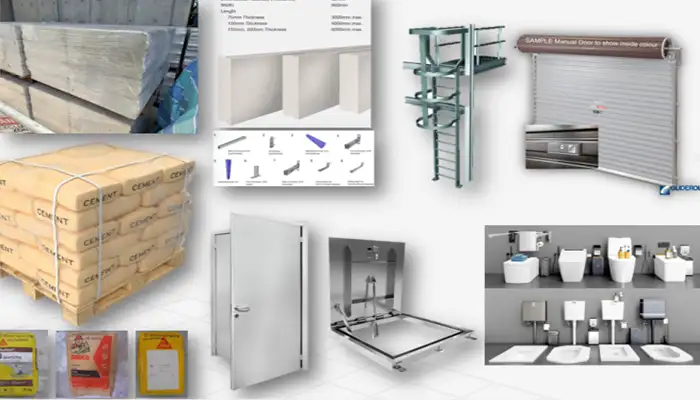

Construction materials that needs to be handled by the portable gantry cranes
Detailed Material Weights
Before planning any lifting operation, it's important to have a clear understanding of the exact weights and handling requirements of the materials on site. Knowing these details helps the crane operator select the right lifting accessories, maintain proper balance, and stay safely within the crane's rated capacity. It also allows the project team to anticipate any challenges when moving bulky or fragile items.
The following table summarizes the main construction materials the 2.5-ton mobile gantry crane will handle, including their typical weight per unit and important notes regarding safe handling:
| Material Type | Weight per Unit | Notes |
|---|---|---|
| Precast Walls & Accessories (1.2 × 0.6 m) | 820 kg/pallet | Regular lifting throughout construction |
| Wet Works Materials (cement screed, floor & wall plaster, etc.) | 1800 kg/pallet | Near crane's working load limit—must verify safety factor |
| Floor/Wall Tiles | 2000 kg/pallet | Heavy, requires stable lifting frame |
| Various Types of Doors | up to 1000 kg | Includes fire/shutters/glass doors |
| Metal Works | 1500 kg max | Includes frames, beams, etc. |
| Access Hatch / Cat Ladders / Louvres / Panels | Variable | Typically 200–800 kg |
| Sanitary Wares | 1000 kg/pallet | Fragile—requires smooth lifting |
After reviewing this table, it becomes clear that the crane must be versatile and stable. The heaviest materials, like tiles and wet works pallets, approach the crane's rated capacity, so careful planning and proper lifting techniques are essential. Meanwhile, fragile items such as doors and sanitary wares require smooth, controlled movement to prevent damage. Understanding these material specifics ensures that every lift is both safe and efficient, and helps the site maintain a steady workflow without delays or accidents.
Lifting Safety Factor Consideration
Ensuring safe lifting is critical on any construction site. The 2.5-ton mobile gantry crane for this project is designed with a 125% overload test, giving a built-in margin of safety for unexpected load variations. This design feature ensures the crane remains stable and reliable, even under slightly heavier loads than its rated capacity during controlled operations.
Key Points to Consider:
- Rated Capacity: 2.5 tons
- Overload Test: 125% of rated capacity for safety verification
- Heaviest Material on Site: Floor or wall tiles weighing 2,000 kg per pallet
- Lifting Accessories: Hooks, slings, or spreader beams add to the total weight
It is essential that the combined weight of the material plus any lifting tackle does not exceed the crane's 2.5-ton capacity. This ensures safe handling of heavy loads while maintaining stability.
Technical Requirements
The 2.5-ton mobile gantry crane must meet several technical criteria to operate safely and efficiently on the construction site. These requirements cover lifting height, power supply, mobility, and site conditions to ensure smooth workflow across all areas.
Lifting Height
The crane needs to achieve a total lifting height of 9.5 meters, which includes both surface level and underground depth.
- The gantry height must allow for truck unloading, vertical travel, and pit depth without interference.
- Sufficient overhead clearance is necessary to prevent collision with structural elements or temporary scaffolding.
This height specification ensures that materials can be moved directly from delivery trucks to their installation locations, including basement or underground areas, without additional handling or lifting equipment.
Power Supply
The crane's electrical requirements depend on the site's available infrastructure. The user will adhere to the supplier's recommendations:
- Standard: 380V / 50Hz / 3 Phase
- Optional: 220–415V depending on country or site-specific conditions
Verifying the correct power supply before installation ensures reliable crane operation and prevents potential downtime or damage to the electrical system.
Mobility Requirements
Mobility is a key factor since the crane will need to move across different sections of the site:
- Wheel Type: PU (polyurethane) wheels or rubber wheels suitable for concrete floors
- Travel Mode: Manual push or motorized travel depending on site traffic and distance
- Maneuverability: Consider the required turning radius or straight-path operation in confined areas
The crane's mobility ensures it can reach all lifting points, including tight corridors, staging areas, and underground zones, without requiring additional equipment.
Site Ground Condition
Proper site preparation is essential for safe crane operation:
- Flatness: Surface must be level within ±10 mm
- Load Capacity: Concrete floor must support the crane's 2.5-ton capacity plus the load weight
- Environment: Indoor or outdoor usage may require anti-corrosion paint and weatherproofing for hoist components
Checking these conditions in advance reduces the risk of tipping, uneven lifting, or damage to both the crane and materials during handling.
Recommended 2.5-Ton Mobile Gantry Crane Configuration
For this construction project, the 2.5-ton mobile gantry crane should be configured to handle a variety of materials, operate safely in tight and underground areas, and provide flexibility for daily site operations. Below is a practical configuration tailored to these needs.
Structural Design
The crane should have a heavy-duty steel frame with a modular, bolt-together structure, making it easy to transport, assemble, and adjust on site.
- Modular Construction: Allows fast on-site assembly without welding
- Adjustable Height (Optional): Useful if the crane is used across multiple floors or varying underground depths
- Durability: Steel frame designed to withstand frequent lifting and movement on concrete floors
This design ensures stability during heavy lifts while remaining flexible enough for multi-zone operations.
Lifting Equipment
Choosing the right hoist is essential for both efficiency and safety:
- Type: Electric chain hoist or wire rope hoist, depending on lifting frequency and load type
- Protection: IP55 motor rating to resist dust and debris common on construction sites
- Weatherproofing: Optional rainproof cover for outdoor operations
- Speed Control: 2-speed lifting function to handle fragile materials like tiles or doors carefully
This setup allows smooth and controlled lifts while minimizing the risk of material damage or operator error.
Wheels and Mobility
The crane must move easily between lifting points:
- Wheels: Four swivel wheels with brakes for stable positioning
- Motorized Travel (Optional): Useful for long distances or frequent relocation
- Forklift Pockets: Allow fast and safe relocation of the crane using a forklift if needed
With this mobility setup, the crane can reach tight corners, staging areas, and underground zones without requiring additional lifting equipment.
Safety Features
Safety is a priority on every lift:
- Mechanical Overload Limiter: Prevents lifting loads beyond rated capacity
- Emergency Stop: Quick power cutoff for unexpected issues
- Anti-Drop Hooks: Prevents accidental release of suspended loads
- Limit Switches: Protect against over-travel at top or bottom positions
- Optional Remote Control: Allows operator to control the crane from a safe distance
These features ensure that the crane operates safely and reliably under all site conditions, protecting both personnel and materials.
Site Challenges & How the Gantry Crane Solves Them
Construction sites often present a mix of challenges that make lifting and moving materials safely more difficult. The 2.5-ton mobile gantry crane is designed to address these issues directly, providing practical solutions for everyday site operations.
Mixed Heavy Materials
Construction sites rarely deal with uniform loads. From wet works pallets to metal frames and tiles, material weights vary significantly. The 2.5-ton gantry crane can handle different weights up to 2 tons safely, giving the team confidence that every lift stays within rated capacity.
- Supports frequent lifting of heavy items without overloading
- Handles irregular-shaped loads such as metal structures or panel assemblies
- Reduces time spent rearranging or staging materials manually
Underground Lifting
Many construction sites include basement or underground levels, requiring precise vertical lifting. With a lifting height of 9.5 meters, the crane can safely lower materials into pits or basement areas.
- Precast panels, tiles, and pallets can be moved directly from delivery trucks to underground locations
- Eliminates the need for additional hoists or temporary lifting setups
- Maintains material stability while moving into confined vertical spaces
Limited Access Area
Site layouts often have narrow corridors, tight corners, or areas where fixed overhead cranes cannot be installed. The mobile gantry crane solves this problem by being fully relocatable.
- Moves easily between multiple work zones
- Can access confined spaces without requiring permanent infrastructure
- Reduces setup time and increases flexibility for changing site conditions
Safety Improvements
Manual handling of heavy or fragile materials carries high risk. The gantry crane reduces these hazards while protecting both workers and materials:
- Minimizes manual lifting, lowering the chance of injuries
- Prevents damage to fragile loads like tiles, glass doors, or sanitary wares
- Ensures controlled, stable lifting with safety features such as overload protection, anti-drop hooks, and limit switches
Delivery, Installation & Commissioning Plan
Efficient delivery and quick setup are critical for keeping construction projects on schedule. The 2.5-ton mobile gantry crane is designed to arrive ready for assembly and be commissioned with minimal disruption to ongoing site work. Careful planning of delivery, assembly, testing, and training ensures that the crane can start operating safely and efficiently.
The overall plan includes several key steps:
- Frame pre-assembled, delivered in modular sections: The crane frame is partially assembled at the factory for quality control. Modular delivery allows easy transportation and reduces the risk of damage during shipping.
- On-site assembly within 3–4 hours: The crane can be quickly assembled using bolts and fasteners, with no welding required. This rapid setup ensures that the crane is ready for operation shortly after arrival.
- Hoist installation and electrical connection: The electric chain or wire rope hoist is installed after frame assembly. Electrical connections are made according to site requirements, with checks for proper alignment and smooth operation.
- Load testing (100% & 125% proof load): A standard 100% load test confirms normal operation, while a 125% overload proof test verifies safety margins and structural stability. All functions, including limit switches and brakes, are tested during this phase.
- Operator training & handover:On-site training ensures operators understand safe lifting procedures, mobility operation, and emergency protocols. Complete handover documentation is provided, including manuals, test certificates, and safety checklists.
Maintenance & Inspection
Regular maintenance and inspection are essential to keep the 2.5-ton mobile gantry crane operating safely and efficiently throughout the construction project. A structured maintenance schedule helps prevent unexpected downtime, extends the crane's lifespan, and ensures compliance with safety standards.
The maintenance plan can be broken down into daily, monthly, quarterly, and annual activities:
- Daily checklist: wheel condition, hook check, control button test: Before starting work each day, operators should inspect wheels for wear or damage, ensure hooks and lifting gear are secure, and test all control buttons for proper function. Early detection of minor issues prevents accidents and operational delays.
- Monthly lubrication: All moving parts, including wheels, hoist gears, and trolley mechanisms, should be lubricated to reduce friction and wear. Regular lubrication ensures smooth operation and minimizes the risk of mechanical failure.
- Quarterly inspection for construction dust and grit: Construction environments generate dust, grit, and debris that can affect crane components. A quarterly inspection should check for accumulation on hoists, rails, and wheels, with cleaning performed as necessary to maintain performance.
- Annual load test certification: Each year, the crane should undergo a full load test to confirm structural integrity and lifting capability. This includes verifying that all safety systems, such as limit switches and overload protection, function correctly under maximum load conditions.
FAQs – 2.5 Ton Mobile Gantry Crane for Construction Materials
When selecting a 2.5-ton mobile gantry crane for construction materials, contractors often have practical questions about lifting capacity, mobility, site requirements, and installation. Here are the most frequently asked questions with clear, practical answers:
1. Can a 2.5t mobile gantry crane safely lift 2000 kg tiles or wet works pallets?
Yes. These loads are within the crane's safe working limit, provided the weight of lifting accessories (slings, hooks, spreaders) does not exceed 500 kg. Always adhere to the 125% rated load test standard to maintain safety margins.
2. Is this crane suitable for underground lifting?
Yes. The crane can be configured to meet the project's 9.5 m lifting height, including underground depth. The gantry structure can be adjusted to safely lower materials into pits or basement areas.
3. Can the crane be moved while carrying a load?
Not recommended unless the crane is equipped with a motorized travel system specifically rated for lifting while moving. Manual relocation should always be done with the crane unloaded.
4. What type of hoist is best for construction sites?
An electric chain hoist is preferred for dusty construction environments and handling mixed materials. It is durable, easy to maintain, and allows controlled lifting of both heavy and fragile items.
5. Does the crane require a fixed power supply?
No. The crane can operate with:
- 380V / 50Hz / 3 Phase site power (standard)
- Optional battery-powered hoist for areas without electrical access
6. Is height adjustable?
Yes. Height-adjustable gantry cranes are available. However, they require additional structural reinforcement to maintain stability during lifts.
7. What ground requirements are needed?
A reinforced concrete floor is recommended to support the crane plus the load. The surface should be level within ±10 mm to ensure smooth mobility and safe operation.
8. What site documents are needed for approval?
Commonly required documentation includes: Load chart, General Arrangement (GA) drawing, Method statement and risk assessment, Load test certificate,
9. How long does installation take?
On-site assembly typically takes 3–4 hours, with no welding required. The modular design allows quick setup and immediate readiness for operations.
Conclusion
The 2.5-ton mobile gantry crane offers a practical and versatile solution for modern construction sites. Designed to handle a wide range of materials, it is capable of lifting everything from 820 kg precast panels to 2,000 kg tiles and wet works pallets safely and efficiently.
Key Advantages:
- Flexible Material Handling: Supports a variety of construction materials including metal structures, doors, and sanitary wares.
- Underground & Multi-Zone Operation: Lifting height of 9.5 meters accommodates underground areas and multiple work zones.
- Mobility & Modular Design: Easily relocated without permanent installations, suitable for tight or changing site layouts.
- Safety Features: Overload protection, anti-drop hooks, and limit switches ensure both operator and material safety.
For contractors managing busy construction sites, this crane delivers efficiency, reliability, and safety in one compact and mobile package. It simplifies workflow, reduces manual handling, and ensures that materials are moved precisely and securely from delivery to installation.
In short, the 2.5-ton mobile gantry crane is an essential tool for contractors who need a combination of strength, flexibility, and dependable safety on site.
Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
