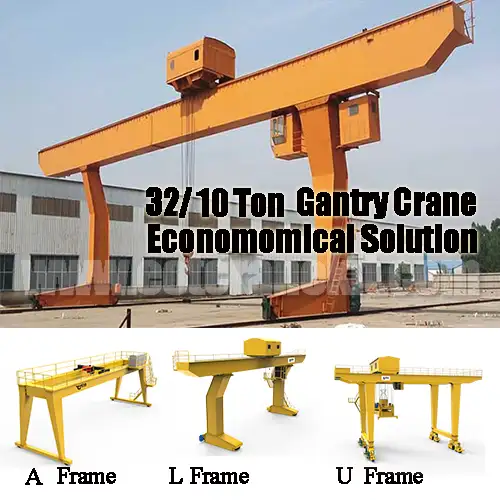

32/10 ton L Frame single girder gantry cranes with top-running open winch trolleys. Cost-effective, easy to install, and ideal for medium-duty yard and outdoor operations. Compare with A-frame double girder cranes for smart, economical lifting solutions.

Gantry cranes are essential equipment in many industrial and outdoor yard operations. They make it possible to move heavy materials safely and efficiently across short or medium distances. From storage yards handling steel products to workshops lifting machinery parts, gantry cranes are versatile tools that save both time and effort.

In this case, we focus on handling heavy loads of 32 tons for main lifting and 10 tons for auxiliary lifting. These cranes are often used in:

• Steel storage yards, for loading and unloading steel bundles or billets.
• Fabrication plants, where large machinery or structural components need to be moved.
• Workshops that require flexible lifting solutions without investing in very heavy infrastructure.

The main purpose of this case study is to show why an L Frame single girder design can be a practical and cost-effective alternative to the more traditional double girder A-frame gantry cranes. By looking at the structure, lifting mechanism, and real-world applications, buyers can understand where this design fits best and how it can reduce overall costs without compromising safety or reliability.

Key points covered in this case:

• How L Frame single girder cranes handle 32/10 ton loads effectively.
• Structural advantages and limitations compared with A-frame double girder cranes.
• Practical applications where this type of crane performs well.
• Cost and installation considerations for medium-duty outdoor and indoor operations.

By the end of this case, the reader should have a clear understanding of why an L Frame single girder gantry crane might be the right choice for their yard or workshop, especially when looking for a solution that balances performance, cost, and ease of installation.

Gantry Crane Design Overview

Understanding the design differences between an L Frame single girder gantry crane and a double girder A-frame gantry crane is crucial for buyers. These differences affect cost, installation, maintenance, and operational flexibility. Let’s break it down.

Main Technical Specifications of L Frame Single Girder Gantry Cranes

For buyers considering L Frame single girder gantry cranes, understanding the technical specifications is key to safe, efficient, and long-lasting operation.

Lifting Capacity and Span

The L Frame gantry crane is designed for flexibility across different applications:

• Capacity options: 5, 10, 16, 20, 32, and 50 tons.
• Span range: 18–35 meters, adjustable to suit yard layouts and operational needs.
• Lifting height: 6–18 meters, suitable for high stacking or clearance handling.

This makes it ideal for steel storage yards, fabrication shops, and workshops handling varying load sizes.

Lifting and Movement Speeds

Speed is a critical factor for efficiency and safety. The L Frame crane offers:

• Lifting speed: 9 m/min for 50-ton models up to 12 m/min for 5-ton models.
• Trolley travel speed: 36.6–39.7 m/min, allowing precise positioning.
• Crane travel speed: 39.7–48.2 m/min, enabling quick movement across the runway.

Work Duty and Track Type

Choosing the correct work duty and track ensures smooth operation and longevity:

• Work duty: All models conform to A5 duty class, ideal for medium to heavy lifting cycles.
• Track type: P43 track for cranes up to 20 tons; QU80 track for 32–50 ton models for enhanced stability and durability.

Trolley and Control

The top-running open winch trolley provides smooth and precise operation:

• Accurate load placement along the span.
• Easy maintenance with accessible components.
• Flexible for indoor and outdoor use.

Control options:

• Manual: suitable for occasional lifting.
• Semi-automatic: motor-assisted for medium-frequency use.
• Electric: fully motorized for frequent, precise lifts.

Power supply typically matches local requirements (380V/3-phase) but can be customized for specific sites.

Structural Material and Durability

Built for long-term performance:

• High-strength steel for the girder and L-shaped legs ensures stability and longevity.
• Protective coatings resist rust, corrosion, and outdoor exposure.
• Maintenance: Simple structure with fewer moving parts reduces downtime and keeps service costs low.

This combination of strength, durability, and low maintenance makes the L Frame single girder gantry crane a practical solution for medium-to-heavy lifting in yards and workshops.

Operational Advantages

Choosing the right gantry crane isn’t just about lifting capacity or span. The design and operational benefits play a big role in determining whether a crane will be practical and cost-effective for your yard or workshop.

L Frame Single Girder

The L Frame single girder gantry crane offers several advantages that make it a smart choice for medium-duty operations:

• Lower initial cost and faster fabrication: With a simpler structure compared to double girder cranes, manufacturing time and material costs are reduced.
• Adequate for medium-duty yard operations: Ideal for lifting steel bundles, machinery, or other heavy loads without oversizing the crane.
• Easier transportation and installation: Lightweight girder and L-shaped legs make it simpler to move and set up, even in confined spaces.
• Maintenance simplicity: Fewer moving parts and a straightforward structure make inspections, repairs, and regular maintenance easier and faster.

This combination of cost-efficiency, ease of installation, and low maintenance makes the L Frame single girder crane a practical solution for many workshops and storage yards.

Economic Comparison with A-Frame Double Girder

Compared to a double girder A-frame gantry crane, the L Frame single girder design provides clear economic benefits:

• Material savings: Uses less steel without compromising stability for medium-duty applications.
• Reduced foundation and civil work costs: Lighter structure means smaller foundations, saving time and construction expense.
• Better suited for less frequent or lighter-duty lifting cycles: For yards or workshops that don’t run heavy lifts continuously, the single girder design meets operational needs at a lower total cost.

In short, while A-frame double girder cranes are ideal for heavy, continuous operations, the L Frame single girder crane often delivers nearly the same performance for medium-duty work, with significant savings on materials, installation, and maintenance.

Practical Applications

Understanding where and how an L Frame single girder gantry crane performs best helps buyers choose the right solution for their yard or workshop. These cranes are versatile and can be applied in a variety of practical scenarios.

Yard Operations

L Frame gantry cranes are particularly effective for outdoor yard work. They handle heavy materials efficiently and reduce the need for manual labor:

• Loading and unloading trucks: Quickly lift steel bundles, machinery, or equipment onto transport vehicles.
• Stacking steel bundles: Organize storage yards with precision, keeping operations safe and orderly.
• Moving machinery: Transport heavy equipment across short distances within a yard or industrial site.

The L Frame design provides stability and ease of movement, even in outdoor environments where space may be limited.

Practical Buying Considerations for 32/10 Ton L Frame Single Girder Gantry Cranes

Before investing in a 32/10 ton L Frame single girder gantry crane, it's important to evaluate several practical factors to ensure the crane meets your operational needs and budget.

Load Profile

Understanding your load requirements is critical for safety and efficiency:

• Confirm the maximum load the crane will handle, including any auxiliary loads.
• Plan for occasional overloads by adding a 10–20% safety margin to the rated capacity.
• Check manufacturer load charts for different span and height combinations.

Span and Runway Limitations

Properly matching crane span and runway ensures smooth operations:

• Measure available yard or workshop space to determine the optimum span.
• Ensure runway length accommodates the full movement of the crane without obstacles.
• Check for potential interference from walls, columns, or other equipment.

Frequency of Operations

The type of operations affects crane choice:

• L Frame single girder cranes are suitable for medium-duty cycles and light to moderate lifting frequency.
• If operations are continuous or extremely heavy-duty, consider a double girder A-frame crane instead.
• Align hoist and travel speeds with the expected workflow to avoid bottlenecks.

Budget vs. Long-Term ROI

Cost considerations go beyond the purchase price:

• L Frame designs generally have lower upfront costs and simpler installation.
• Factor in long-term costs including maintenance, downtime, and energy consumption.
• Consider total return on investment rather than just initial purchase price.

Safety and Compliance Standards

Ensuring compliance keeps operators and equipment safe:

• Verify that the crane meets ISO, CE, and other relevant standards.
• Compliance ensures regulatory adherence and reduces liability risks.
• Check that operator training and maintenance schedules align with safety requirements.

Conclusion

The L Frame single girder gantry crane is a practical, cost-effective solution for medium-duty yard and workshop operations. It combines reliable lifting performance, easier installation, and lower maintenance compared to heavier double girder A-frame designs.

Key Takeaways:

• Match the crane type to operational needs for efficiency and reliability.
• Consider load, span, duty cycle, budget, and compliance when making a decision.
• The L Frame single girder design offers a smart balance between cost, functionality, and practicality for many industrial applications.

Consult with a trusted crane supplier to explore customized L Frame single girder solutions, including top-running open winch trolleys tailored to your yard or workshop requirements.
