Variable speed winch & variable speed electric winch
Various speed winch of JT electric winch series, 0~30 m/min variable speed electric winch, variable speed winch controller&variable speed drive winch motor, etc.
| Winch Type | JT series of variable speed winch |
| Loading Capacity | 3-20 ton |
| Rope Capacity | 20~500 m |
| Working Speed | 0~30 m/min |
Category: Winch
Your Trusted Electric Winch Manufacturer & Supplier
Variable-Speed Winch for Sale
JT Electric Winches: Efficient, Cost-Effective Variable-Speed Winch
Variable-Speed Winches from the JT Electric Winch Series
Variable speed winch of JT series electric winch is a type of electric winch with the features of variable speed winch controller, high speed and low speed's brake, easy usage and operation, high efficient and safe, etc. The JT series of various speed winch are usually adopted for vertically hoisting or horizontally pulling heavy and large loads or objects, such as, steel structure, mechanical equipment, concrete and prefabricated parts and components, and others, etc.

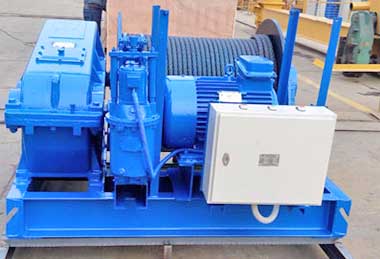

Variable speed winch of JT electric winch series
Variable speed winch of JT electric winch series
Variable speed winch of JT electric winch series
Main Specificaitons of JT Variable Speed Winch
Electric winch Model: JT series of variable speed winch
Loading capacity of electric variable speed winch: 3-20 t
Rope capacity of electric variable speed winch:20~500 m
Working speed of electric variable speed winch:0~30 m/min
Power supply of electric variable speed winch: 220-690V,50/60HZ,3Phase
Main Parts of Variable Speen Winch

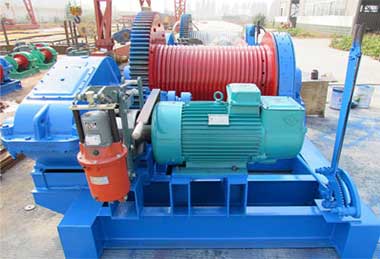

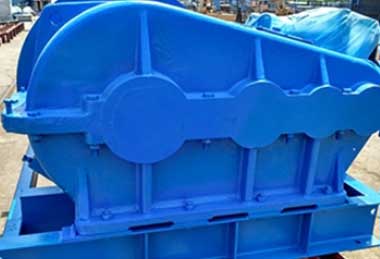

Gearbox System
The gearbox is the core transmission unit of the variable speed winch, designed to convert motor speed into controlled torque output.
Typically equipped with hardened gears and precision machining, it ensures smooth and stable operation under varying loads.
Benefits: Provides high torque capacity, stable speed regulation, improved energy efficiency, and long service life in heavy-duty applications such as construction lifting, mining hauling, and marine operations.

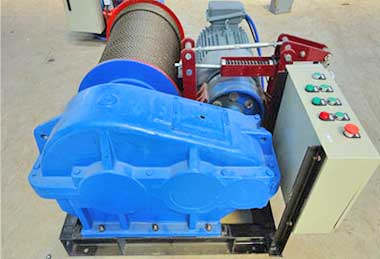

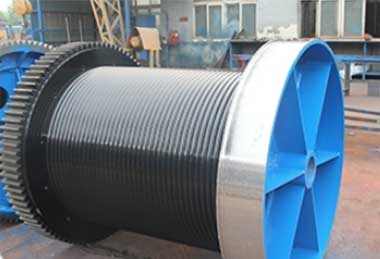

Rope Drum
The rope drum is engineered to wind and store wire rope in an orderly manner, ensuring even distribution of load.
It is manufactured with high-strength steel and often features grooved surfaces to prevent rope overlap.
Benefits: Enhances lifting safety, minimizes rope wear, ensures smooth operation, and supports precise positioning in applications like hoisting, towing, and material handling.

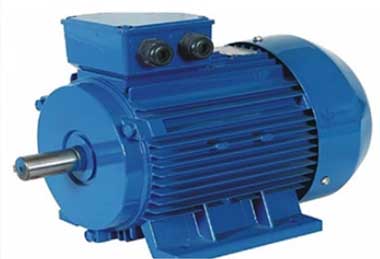

Electric Motor
The electric motor powers the winch and enables variable speed control through frequency conversion or multi-speed systems.
Designed for continuous duty, it delivers reliable performance even in demanding environments.
Benefits: Offers flexible speed adjustment, high operational efficiency, reduced energy consumption, and suitability for precise lifting tasks in factories, ports, and offshore platforms.

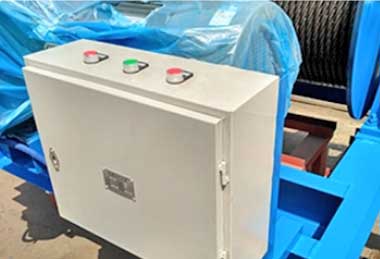

Control System
The control box integrates electrical components, including contactors, inverters, and safety relays, enabling precise operation of the winch system.
It supports remote or automated control modes.
Benefits: Improves operational safety, enables precise speed control, reduces human error, and enhances automation capability for industrial processes.

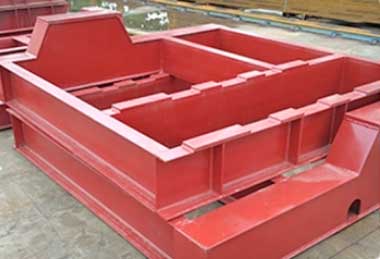

Winch Frame
The winch frame serves as the structural base, supporting all components and maintaining alignment during operation.
It is fabricated from heavy-duty steel with high rigidity and anti-deformation properties.
Benefits: Ensures structural stability, reduces vibration, supports heavy loads, and extends equipment lifespan in harsh industrial environments.

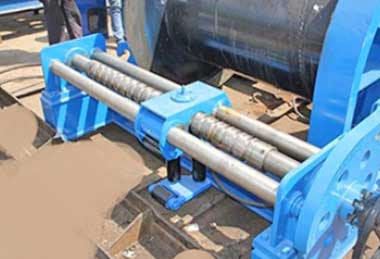

Wire Rope Guide
The rope guide ensures the wire rope is evenly wound onto the drum, preventing tangling or uneven layering.
It operates synchronously with the drum rotation.
Benefits: Reduces rope damage, improves operational safety, extends rope lifespan, and ensures smooth lifting performance.

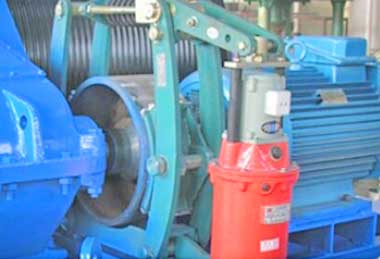

Brake System
The braking system ensures immediate stopping and secure holding of loads.
It typically includes electromagnetic or hydraulic brakes for reliable performance.
Benefits: Enhances safety, prevents load slipping, ensures precise positioning, and supports emergency stopping in critical lifting operations.
Electric Friction Winch
The electric friction winch is designed for long-distance pulling and continuous operation, using friction drive mechanisms instead of direct drum winding.
Benefits: Ideal for large-scale hauling, mining transport, and marine towing applications, offering continuous duty capability, reduced rope wear, and high efficiency over long distances.
Variable Speed Winch – Industrial Applications
JT series electric variable speed winch is mainly use for Road, bridge and building construction or for some special usage for pulling or hoisting.
With process winch design, the electric variable speed winches can be processed to meet your particular conditions including construction site, water conservancy projects, forestry, mining, wharf and other material lifting or towing and other various industrial applications,etc.
Construction & Infrastructure Applications
In construction projects, variable speed electric winches allow precise lifting and positioning of heavy materials such as steel beams and concrete segments. They are used with cranes, hoists, and temporary lifting systems for controlled and safe operations.
- Typical Capacity: 1 ton – 50 ton
- Typical Rope Length: 50 m – 300 m
- Typical Loads: Steel beams, precast concrete, rebar cages, scaffolding
- Applications: High-rise hoisting, bridge cable tensioning, formwork lifting, controlled lowering of structural components
Mining, Shaft Hoisting & Tunneling
Mining and tunneling operations rely on heavy-duty variable speed winches to hoist ore, personnel, and equipment safely. Electric winches with VFD control provide precise speed and smooth braking in deep shafts and underground tunnels.
- Typical Capacity: 5 ton – 200 ton
- Typical Rope Length: 200 m – 2000 m
- Typical Loads: Ore skips, personnel cages, mining machinery, rock debris
- Applications: Shaft hoisting, underground ore haulage, TBM auxiliary pulling, inclined shaft winching
Marine, Offshore & Shipyard Winches
Marine and offshore variable speed winches are used for lifting anchors, mooring lines, subsea equipment, and ship cargo. Electric winches with precise control handle dynamic loads safely in wave-prone environments.
- Typical Capacity: 10 ton – 300 ton
- Typical Rope Length: 200 m – 3000 m
- Typical Loads: Anchors, mooring lines, subsea modules, ship cargo
- Applications: Mooring systems, anchor handling, subsea deployment, shipyard cargo handling
Manufacturing, Steel Mills & Industrial Production
In factories and steel mills, electric variable speed winches allow precise handling of heavy components like steel coils, molds, and machine parts. They integrate with automated production lines for safe and accurate operations.
- Typical Capacity: 0.5 ton – 20 ton
- Typical Rope Length: 20 m – 100 m
- Typical Loads: Steel coils, molds, machinery components
- Applications: Coil handling, die positioning, automated line lifting, maintenance operations
Power Plants, Hydropower & Renewable Energy
Power plants and renewable energy facilities use variable speed electric winches to lift and position turbines, gates, and pipelines. VFD winches provide smooth, controlled movement for sensitive and heavy components.
- Typical Capacity: 2 ton – 100 ton
- Typical Rope Length: 50 m – 500 m
- Typical Loads: Turbines, generators, spillway gates, pipelines
- Applications: Hydropower gate hoisting, wind turbine maintenance, oil & gas platform lifting, power plant installation
Railway, Transport & Heavy Recovery
Railways and transport sectors use heavy-duty variable speed winches for train recovery, railcar handling, and yard operations. Electric winches with precise speed control ensure safety during pulling and positioning of heavy equipment.
- Typical Capacity: 5 ton – 80 ton
- Typical Rope Length: 100 m – 1000 m
- Typical Loads: Railcars, locomotives, maintenance equipment
- Applications: Derailed train recovery, inclined rail pulling, yard positioning
Forestry, Logging & Slope Winching
Forestry operations rely on variable speed electric winches to skid and transport logs safely over rough terrain. Adjustable speed ensures rope integrity and prevents log damage during heavy pulling tasks.
- Typical Capacity: 3 ton – 30 ton
- Typical Rope Length: 100 m – 800 m
- Typical Loads: Logs, timber bundles
- Applications: Timber skidding, cable yarding, slope winching
Variable Speed Winch FAQ
Find answers to common questions about variable speed winches, electric winches, and industrial lifting systems, covering applications, capacities, rope lengths, and loads across multiple industries.
What industries commonly use variable speed winches?
Variable speed electric winches are widely used in construction, mining, marine, manufacturing, energy, rail, and forestry applications.
- Construction: lifting steel beams, concrete segments, formwork
- Mining & tunneling: hoisting ore, personnel cages, machinery
- Marine & offshore: handling anchors, mooring lines, subsea modules
- Manufacturing: coil handling, die positioning, equipment installation
- Energy: turbines, gates, pipelines
- Railways: train recovery, railcar handling
- Forestry: timber skidding and cable yarding
What is the typical lifting capacity of industrial variable speed winches?
Industrial variable speed winches generally handle loads from less than one ton up to several hundred tons.
- Manufacturing & assembly: 0.5–20 tons
- Construction & marine: 10–300 tons
- Mining shaft hoists: 5–200 tons
- Forestry winches: 3–30 tons
- Energy facilities: 2–100 tons
How long can the ropes or cables be on these winches?
Rope lengths vary from 20 meters for indoor applications to over 3000 meters for deep shafts or offshore operations.
- Manufacturing: 20–100 m
- Construction cranes: 50–300 m
- Mining shafts: 200–2000 m
- Marine & offshore: 200–3000 m
- Forestry: 100–800 m
Can variable speed electric winches be used in automated systems?
Yes, they integrate with PLCs, VFD controllers, and automated industrial processes.
- Precise load positioning for steel coils, molds, machinery
- Smooth start/stop and speed adjustments
- Remote control for harsh or unsafe environments
- Continuous or repetitive operations with reduced mechanical wear
What types of loads can they handle?
Variable speed winches can manage heavy machinery, structural components, industrial materials, and natural resources.
- Construction: steel beams, precast concrete, rebar cages
- Manufacturing: dies, molds, steel coils, machinery parts
- Mining: ore skips, rock debris, personnel cages
- Marine: anchors, mooring lines, subsea modules
- Forestry: logs, timber bundles
- Energy: turbines, gates, pipelines
Are electric variable speed winches suitable for outdoor and harsh environments?
Yes, they are built with durable materials for wet, dusty, or high-load environments.
- Marine: corrosion-resistant components for saltwater
- Forestry & logging: rough terrain and slope stability
- Mining: underground dust and moisture protection
- Construction: weather and repeated load cycle resilience
What advantages do variable speed winches offer over fixed-speed winches?
They provide smoother control, improved safety, and versatility across applications.
- Reduces load swing during lifting or pulling
- Enables fine positioning in automated systems
- Minimizes mechanical shock on cables and drums
- Adapts to dynamic environments like offshore or slopes
- Improves efficiency and energy use via VFD motors
How can I choose the right winch for my industrial workshop or project?
Select based on load capacity, rope length, environment, and type of lifting or pulling required.
- Determine maximum load and choose a suitable capacity
- Assess rope length needs for deep shafts or offshore
- Match winch type (electric, VFD, hydraulic) to control requirements
- Consider operational environment (marine, dusty, slope, high altitude)
- Review safety and precision features like soft start, braking, or synchronized lifting
Customized Variable-Speed Winches: Cost-Effective Electric Winch Design
To meet the various industrial needs and your particular application, the tailored electric winch design and fabrication services are available. To provide your the specific variable speed winch, please help us to confirm the following information of the electric variable speed winch you need, which including the following;
- Loading capacity of electric variable speed winch : _____________?(Ton/kN)
- Working speed of electric variable speed winch : _____________?(m/min)
- Wire rope length of electric variable speed winch : _____________?(m)
- Power supply of electric variable speed winch : _____________?
- Optional power supply of electric winch including 220V/230V/380V/400V/415V/440V,single or three phase, or customized.
- Functions or usages of electric variable speed winch : _____________? For horizontally pulling or vertically hoisting?
- Specialized requirements to get tailored electric variable speed winch design.
Send us a inquiry to get your tailored electric variable speed winch design and price.
