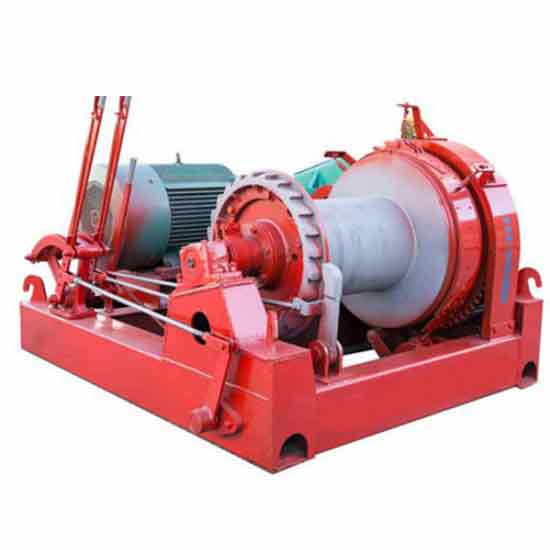

Electric piling winch
Piling winch of JKL electric winch series , 1- 10 ton piling winch, custom piling winch design, manual control & add features to meet your piling winch application.
| Model | JKL |
| Loading Capacity | 1~10 t |
| Rope Capacity | 20~500 m |
| Working Speed | 20~36 m/min |
| Power Supply | 220-690V,50/60HZ,3Phase |
Category: Winch
Your Trusted Electric Winch Manufacturer & Supplier
JKL Electric Piling Winches for Heavy-Duty Lifting
Piling Winchs for Sale - Lift, Pull, and Position with Confidence
JKL Piling Winch
Piling winch of electric winch series is a specialized manual control piling winch ,hoisting winch and pulling winch, with high operation speed hand control brake , and the structural characteristic of rotating shaft, etc. The electric piling winch can be used independently or worked as a hoisting equipment of a process crane, mining hoist machine or other equipment, etc.
The JKL series winch is mainly used for construction factory and mine port and engineering vertical lifting weight drops, especially used in bridge dock construction base engineering freefall punching piling operation. Process design services for the piling winch are available. Contact us to get free consultation on electric winches.
Main parameters of JKL electric piling winch
- Electric winch type : JKL pilling winch
- Loading capacity of electric piling winch : 1~10 ton
- Rope capacity of electric piling winch : 20~500
- Working speed of electric piling winch : 20~36 m/min
- Power supply of electric piling winch : 220-690V,50/60HZ,3Phase
- Application of piling winch: construction site of road, bridge, and buildings, etc., boat, mine, port,process crane,etc.
Tailored electric winch are available. Piling winch with process design for your specific setup. Contact us to get free consultation on the piling winch.

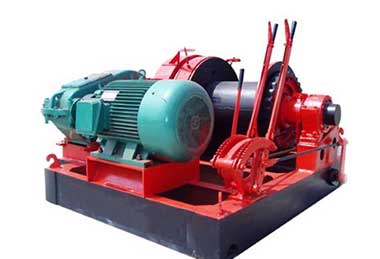

Piling winch of electric winch series

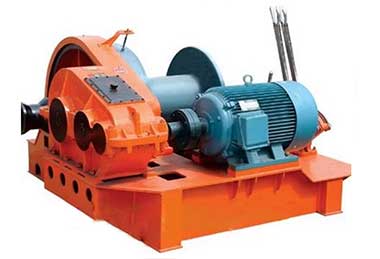

Piling winch of electric winch series

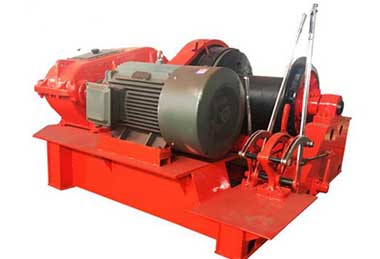

Piling winch of electric winch series
Advantages of piling winch
- Top quality piling winch , competitive price from electric winch manufacturer
- Process piling winch, wide application , cost-effective hoist winch system for your double girder overhead crane and gantry crane.
- Reasonable winch design, compact structure, ,easy to installation and relocation.
- High safety with overload protection, shock protective, explosion-proof performance according to your requirements.
- Good speed control enables empty hook lowering quickly.
Safety features of electric piling winch
- Double Limit Switch, Weight Overload Protection Device
- Current Overload Protection Function, Voltage Lower Protection Function.
- High Quality Polyurethane Materials Buffer to prevent collision
- Emergency Stop System enables the electric winch stop in seconds.
- Lifting Mechanism: Explosive-proof electrical hoist as request.
- Load tests before leaving factory- Dynamic load test :1.1 times rated load& Static load test:1.25 times rated load.
More customized features can be added to the piling winch to meet your particular application. Contact us to get electric winch of process design.
Main Parts of Piling Winch

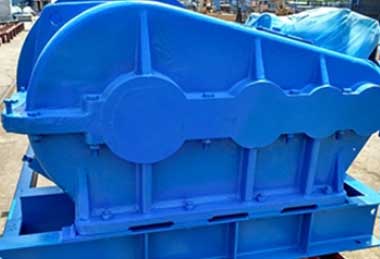

Gearbox System
The gearbox is the core transmission component of an electric piling winch, converting motor speed into controlled torque to drive heavy piling operations.
Hardened gears and precision engineering ensure smooth performance under high-load conditions.
Benefits: Delivers high torque for driving piles, maintains stable operation, improves energy efficiency, and extends service life in construction and foundation works.

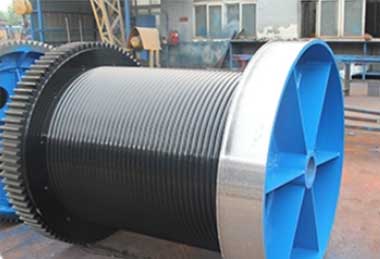

Rope Drum
The rope drum winds and stores the steel wire rope in an orderly manner, ensuring balanced load distribution during pile driving. Grooved surfaces prevent rope overlap and tangling.
Benefits: Enhances lifting and driving safety, reduces rope wear, ensures smooth operation, and provides precise pile positioning in foundation engineering.
Electric Motor
The electric motor powers the piling winch and allows variable speed control for precise pile installation. Built for continuous heavy-duty operation, it delivers reliable performance in construction environments.
Benefits: Provides flexible speed adjustment, high efficiency, energy savings, and precise control for foundation and civil engineering applications.

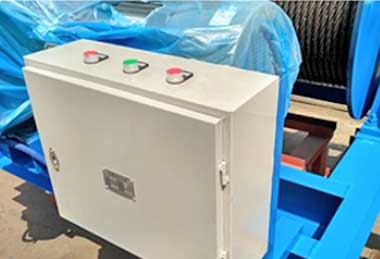

Control System
The control box integrates electrical components for safe and precise winch operation. It supports manual, remote, or automated modes, critical for modern piling operations.
Benefits: Enhances safety, ensures accurate speed and torque control, minimizes human error, and supports automation for construction sites.

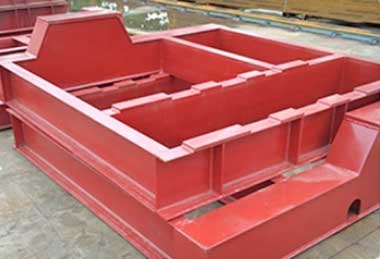

Winch Frame
The frame supports all components and maintains structural integrity under heavy pile-driving loads. Constructed from high-strength steel, it resists deformation.
Benefits: Provides stability, minimizes vibration, supports heavy-duty operations, and ensures long-term durability on construction sites.
Wire Rope Guide
The wire rope guide ensures even winding on the drum to prevent rope tangling or uneven layering during piling operations.
Benefits: Protects rope integrity, improves operational safety, extends rope life, and enables smooth and precise pile installation.
Brake System
The braking system secures the load and allows controlled stopping during pile driving. Electromagnetic or hydraulic brakes ensure reliability.
Benefits: Enhances operator safety, prevents load slippage, allows precise positioning, and provides emergency stop capability in construction operations.

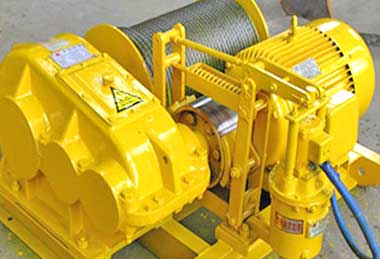

Electric Friction Winch
This friction winch is used for long-distance pile pulling and continuous operation. Friction drive reduces rope wear compared to drum winding.
Benefits: Ideal for large-scale piling, marine foundation works, and mining, offering continuous duty, high efficiency, and reduced rope maintenance.
Industrial applications of JKL electric piling winches
The JKL electric piling winch is a versatile hoisting and towing device widely used across multiple industrial sectors. Its design allows for customization to meet specific operational requirements, making it suitable for heavy-duty lifting, pulling, and material handling.
The JKL electric piling winch are mainly adopted for materials lifting, weight drops pulling and drawing in construction, mine site, and factory. It also can be used as the process winch of derrick and gantry frame and lifting trolley.What's more, the electric winch can be used as main hoisting equipment of various process cranes for different industrial applications.
With process winch design, the electric piling winches can be processed to meet your particular conditions including construction site, water conservancy projects, forestry, mining, wharf and other material lifting or towing and other various industrial applications,etc.
Application conditions of piling winch
- Application temperature of piling winch: -10℃~+40℃.
- Note:when surrounding temperature is below 0℃., lubricating oil should be heated up before the start-up of winch.
- Humidity of piling winch: ≤85%
- Altitude of piling winch: below 1000 m,general application, not hazardous application .
- Power supply of piling winch: 380V,50Hz, 3-phase alternating current power supply and ±5% tolerable voltage difference
- Working duty of piling winch: in use are M4 or M5.
Contact us to get free consultation on piling winch application.
Construction Industry
In the construction sector, heavy materials must be lifted and positioned precisely to ensure safety and efficiency. JKL electric piling winches provide the necessary power and control for a wide range of construction tasks.
- Applications: Lifting and lowering steel beams, concrete blocks, prefabricated components; pulling and positioning piles; assisting derricks, gantry cranes, and tower cranes.
- Typical Loads: 0.5–50 tons depending on winch model.
- Benefits: Smooth, controlled lifting reduces material damage; enables safer handling of heavy loads in tight construction sites.
Mining Industry
Mining operations often require moving heavy loads in challenging underground and surface environments. Electric piling winches provide reliable pulling and lifting power under harsh conditions.
- Applications: Pulling ore containers, drilling equipment, and mining tools; assisting hoisting in underground mines.
- Typical Loads: 1–20 tons.
- Benefits: High durability in harsh environments; can operate under wet, dusty, and high-load conditions.
Factory & Industrial Plants
Factories and industrial plants rely on efficient material handling to maintain production flow. Process winches from JKL integrate seamlessly with cranes and lifting trolleys for automated and precise operations.
- Applications: Process winch for assembly lines, overhead cranes, lifting trolleys; moving heavy machinery parts or raw materials.
- Typical Loads: 0.5–30 tons.
- Benefits: Integration with process cranes for automation; precise load control ensures efficiency and safety.
Water Conservancy & Wharf Operations
In water management and port operations, heavy equipment and materials must be lifted or moved efficiently and safely. Electric piling winches provide dependable power for these environments.
- Applications: Lifting gates, pumps, water-handling equipment; mooring and moving cargo on docks.
- Typical Loads: 1–25 tons.
- Benefits: Corrosion-resistant for marine environments; ensures reliable operation for continuous tasks.
Forestry & Agricultural Applications
Forestry and agriculture often involve transporting and lifting heavy logs or machinery across uneven terrain. Electric winches simplify these tasks while enhancing safety.
- Applications: Pulling and lifting timber logs or agricultural machinery; towing heavy equipment.
- Typical Loads: 0.5–15 tons.
- Benefits: Portable and adaptable to remote sites; reduces manual labor and enhances safety.
Other Industrial Applications
Besides the main industries, JKL electric piling winches can support diverse material handling and hoisting tasks across various sectors. Custom designs allow them to meet specific operational needs.
- Applications: Material handling in warehouses, shipping yards, fabrication shops; custom process winches for specific tasks like weight drop pulling, emergency lifting, or heavy equipment installation.
- Benefits: High adaptability to various environments; robust construction ensures long-term reliability.
FAQs – JKL electric piling winches
Frequently asked questions about JKL electric piling winches, covering applications, capacities, customization, safety, and maintenance. This guide helps you understand the product features and industrial uses.
What is a JKL electric piling winch?
A JKL electric piling winch is a motor‑driven hoisting and towing device designed for heavy-duty lifting, pulling, and material handling in construction, mining, industrial manufacturing, and other sectors. It uses an electric motor and gear system to provide reliable and controlled movement of loads.
What industries use JKL electric piling winches?
These winches are widely used in construction, mining, factories and process plants, water conservancy, wharf operations, forestry, agriculture, warehouses, and other material handling applications.
What types of tasks can they perform?
JKL electric piling winches are suitable for lifting heavy materials, pulling and positioning loads, driving piles during foundation work, serving as towing winches, and acting as process winches in overhead crane or gantry systems.
How do I choose the right model?
Choosing the right winch depends on rated load capacity, line speed, working environment, power availability, and installation type. Each factor ensures safe and efficient operation for your specific application.
What are common load capacities?
JKL electric piling winches commonly range from 0.5 tons to 50 tons, with custom models available for higher or lower loads depending on customer requirements.
What are the power requirements?
Most designs are supplied in standard industrial electric configurations (e.g., three-phase 380–480 VAC), though custom voltages and control options can be provided to match local power availability.
Can the winch be customized?
Yes — options include special drum sizes, longer cable lengths, explosion-proof components, corrosion-resistant finishes, variable speed controls, and remote or PLC integration.
What safety features are included?
Safety features include emergency stop systems, mechanical brakes, limit switches, thermal motor protection, and optional overload protection devices.
How is maintenance handled?
Maintenance includes regular inspection of rope/cable condition, lubrication of gears and bearings, checking brake performance, and motor/electrical inspections. Schedules depend on usage and operating conditions.
Can these winches operate outdoors?
Yes — with weatherproof housing and corrosion-resistant coatings, JKL winches can operate outdoors in construction, marine, and other exposed environments.
What advantages do electric winches have over hydraulic or pneumatic alternatives?
Electric winches offer high energy efficiency, precise speed and position control, lower maintenance, easier integration with automation, and cleaner operation without hydraulic fluids.
Do you provide installation or commissioning support?
Yes — technical support for installation, commissioning, and on-site adjustments can be provided, either remotely or through authorized service partners.
Customized piling winch, cost-effective electric winch design
To meet the various industrial needs and your particular application, the tailored electric winch design and fabrication services are available. To provide your the specific piling winch price, please help us to confirm the following information of the electric piling winch you need, which including the following:
- Loading capacity of electric piling winch : _____________?(Ton/kN)
- Working speed of electric piling winch : _____________?(m/min)
- Wire rope length of electric piling winch : _____________?(m)
- Power supply of electric piling winch : _____________?
- Optional power supply of electric winch including 220V/230V/380V/400V/415V/440V,single or three phase, or customized.
- Functions or usages of electric piling winch : _____________? For horizontally pulling or vertically hoisting?
- Specialized requirements to get tailored electric piling winch design.
Send us an inquiry to get your tailored electric piling winch design and price.
