2 Ton Portable Gantry Crane
Hot Sale Types & Specifications of 2 Ton Mobile Gantry Cranes

For buyers looking at 2 ton gantry cranes, the focus is on light to medium-duty lifting, easy mobility, and flexibility across various workshops and industrial sectors. The following guide covers all major portable gantry crane types, including fixed-height, adjustable, motorized, and rail-mounted options.

PT1-1 Fixed Height Gantry Crane 2 Ton

The PT1‑1 Fixed Height Gantry Crane (2 ton) is a compact and durable steel A-frame portable gantry crane, designed for buyers needing a reliable lifting solution without complex installation. It is ideal for maintenance workshops, small fabrication yards, mold handling, and repair areas.

With smooth-rolling wheels and optional brakes, it functions as a portable, mobile, or rolling gantry crane, making it convenient for relocation and quick setup.

Quick Specs of 2 Ton Portable Gantry Cranes with Fixed Height Design

• Type: Portable / Mobile / Rolling Gantry Crane
• Capacity: 2 tons
• Lifting Height Options: 1015–4015 mm
• Total Height Options: 2000–5000 mm
• Outside Span: 2000–4000 mm
• Inner Span: 1660–3660 mm
• Leg Clearance (H): 685 mm
• Hoist: Manual or Electric Chain Hoist
• Applications: Workshops, mold lifting, small machine handling, equipment loading/unloading

Ask for 2 ton portable gantry crane price

Technical Parameters of 2 Ton Portable Gantry Cranes

PT2-1 Winch-Type Adjustable Gantry Crane (2 Ton)

The PT2‑1 Winch Adjustable Gantry Crane (2 ton) offers height flexibility via a winch-type adjustment mechanism. It is perfect for operations that require different lifting heights, such as HVAC unit installation, mold handling, light machinery repair, and small assembly workshops.

Quick Specs 2 Ton Adjustable Gantry Crane

• Type: Adjustable / Portable / Mobile Gantry Crane
• Rated Load: 2 tons
• Adjustable Total Height: 2600–4000 mm
• Lifting Height Options: 2015 / 3015 mm
• Outside Span: 3000 mm
• Inner Span: 2690 mm
• Leg Clearance: 685 mm
• Mobility: Manually pushed, casters with brakes
• Best For: Workshop flexibility, variable-height lifting, maintenance tasks

Ask for 2 ton portable gantry crane price

Features:

• Adjustable height and span
• Easy disassembly and transport
• Optional electric hoist for heavy lifting
• Height adjustment via sub-stalls before lifting heavy loads
  Applications: Workshops, maintenance yards, assembly lines, temporary lifting, relocations

PT2-1 Winch Type Adjustable Gantry Crane

PT2-2 Worm-Gear Adjustable Gantry Crane (2 Ton)

The PT2‑2 Worm Adjustable Gantry Crane (2 ton) provides precise height control using a worm-gear mechanism, ideal for workshops requiring fine-tuned lifting, laboratory setups, motor assembly, and delicate mechanical handling.

Quick Specs of 2 Ton Adjustable Gantry Crane

• Type: Adjustable / Portable / Mobile Gantry Crane
• Rated Load: 2 tons
• Height Adjustment: Worm-gear mechanism
• Total Height: 2600–4000 mm
• Lifting Height Options: 2015 / 3015 mm
• Span: 3000 mm
• Inner Span: 2690 mm
• Leg Clearance: 685 mm
• Applications: Precision assembly, mold handling, workshop lifting tasks

Ask for 2 ton portable gantry crane price

Technical Parameters – PT2-2 (2 Ton Portable Gantry Crane)
Features:

• Height and span fully adjustable
• Easy disassembly and transport
• Worm adjustment allows precise height control
• Suitable for lifting heavier loads at customized heights
  Applications: Workshops, maintenance yards, assembly lines, temporary lifting, relocations

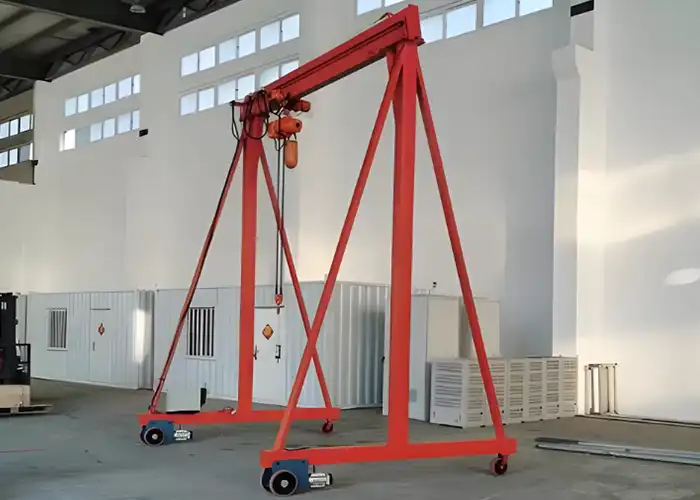

PT-3 Electric Moving Gantry Crane (2 Ton)

The PT‑3 Electric Moving Gantry Crane (2 ton) is ideal for motorized operation in small to medium workshops, production areas, or maintenance yards. Its electric drive enables forward/backward movement and turning without manual pushing.

Quick Specs of 2 Ton Motorized Portable Gantry Crane

• Type: Motorized Mobile Gantry Crane
• Capacity: 2 tons
• Lifting Height Range: 0.7–4.5 m
• Total Height: 2.0–5.0 m
• Span Range: 2.0–4.0 m
• Leg Clearance: 0.41–0.9 m
• Movement: Electric drive, optional manual-electric switch
• Best For: Production lines, workshop handling, frequent load relocation

Ask for 2 ton portable gantry crane price

Features:

• Fully disassemblable for transport and storage
• Adjustable span and height (options from PT2-1, PT2-2, PT2-4)
• Ideal for workshops, maintenance areas, and flexible floor layouts
  Applications: Light to medium-duty lifting, production lines, assembly, and relocation tasks

Technical Parameters – PT-3 Series of 2 Ton of Motorized Portable Gantry Cranes

Note: All cranes use super-low lifting loop chain electric hoists. Lifting height and inner span may slightly vary depending on your specific load and size requirements. Final design will be customized based on your request.

PT-4 Rail-Mounted Electric Gantry Crane (2 Ton)

The PT‑4 Rail-Mounted Gantry Crane (2 ton) provides stable linear movement along rails for precise lifting and repetitive operations. It is suitable for assembly lines, CNC machine loading, and mold-handling production areas.

Quick Specs of 2 Ton Rail Travelling Gantry Crane

• Type: Rail-mounted Electric Gantry Crane
• Capacity: 2 tons
• Lifting Height: 0.67–4.5 m
• Total Height: 2.0–5.0 m
• Span Range: 2.0–4.0 m
• Leg Clearance: 0.41–0.9 m
• Applications: Linear material handling, precise workshop operations

Ask for 2 ton portable gantry crane price

Technical Parameters PT-4 Series of Rail Travelling Gantry Crane 2 Ton

Mobility: Electric drive along floor-mounted rails

• Moves forward/backward along rails
• Optional clutch for manual/electric switching

Features:

• Fully disassemblable for transport and storage
• Adjustable span and height (options from PT2-1, PT2-2, PT2-4)
• Rail-mounted design for stability and precise movement
• Ideal for workshops, production lines, and facilities with track-ready floors

Applications:

• Light to medium-duty lifting
• Production, assembly, and relocation tasks
• Environments requiring stable, guided crane operation

Note: All cranes use super-low lifting loop chain electric hoists. Lifting height and inner span may slightly vary depending on your specific load and size requirements. Final design will be customized based on your request.

Typical Industrial Sectors for 2 Ton Gantry Cranes

• Metal Fabrication & Light Steel Workshops – Handling small beams, molds, or machine parts.
• Automotive & Maintenance Workshops – Engine lifts, vehicle components, or assembly parts.
• Plastic & Mold Production – Mold lifting, handling of small dies.
• HVAC & Electrical Installations – Lifting small air-conditioning units, panels, or transformers.
• Laboratories & R&D Workshops – Precision equipment lifting with adjustable height cranes.
• Maintenance & Repair Yards – Portable and motorized models for flexible lifting of repair components.

FAQ – 2 Ton Portable Gantry Cranes

1. Are 2-ton gantry cranes suitable for small workshops?
Yes. Compact PT1‑1 and PT2‑1 models are designed for space-constrained workshops, with adjustable span and leg clearance for flexibility.

2. How portable are they?
Manual models can be pushed using casters with brakes. Motorized PT‑3 cranes provide powered movement for frequent relocations. PT‑4 requires a rail track but ensures precise linear operation.

3. Which model is best for variable-height lifting?
PT2‑1 Winch-Type and PT2‑2 Worm-Gear Adjustable Gantry Cranes allow safe height adjustment, ideal for mold changes, light machinery, and workshop versatility.

4. Can 2-ton gantry cranes handle molds or machinery parts?
Yes. These cranes can lift up to 2 tons, which covers most small to medium industrial loads, including molds, engines, machine tools, and equipment components.

5. What about maintenance and durability?
All models use steel A-frame structures with bolt-together design. Inspect wheels, hoists, and bolts regularly. Electric hoists require periodic lubrication.

6. Are they suitable for outdoor use?
Yes, with stable, flat ground. Brake-type casters prevent drift. Motorized PT‑3 cranes perform best on smooth surfaces; PT‑4 is best indoors on rails.

7. How fast can they be assembled?

• PT1‑1: Quick bolt-together assembly.
• PT2‑1 / PT2‑2: Straightforward disassembly and height adjustment.
• PT‑3 / PT‑4: Requires professional setup for electric connections or rails.

8. Can I upgrade from 2 tons to higher capacity later?
2-ton models are rated specifically; for heavier loads, consider 3 ton or higher-capacity gantry cranes.
