Electric Chain Hoists

Electric chain hoists mounted on hook, lug, manual or electric hoist trolley for types of electric chain hoist cranes with capacity of 500kg, 5 ton, 10 ton, 32 ton.

Lifting Capacity: 1 ton, 5 ton, 10 ton to 32 ton
Lifting Height: 6m to 48m
Lifting Speed: 0.4/1.2 to 2.4/11.8m/min
Working Class: M3, M4, M5
Ambient Temperature: -20℃ to 40℃

Category: Hoist

Your Trusted Crane Hoist Manufacturer & Supplier

Hook ,Electric & Manual Trolley Mounted
Electric Chain Hoists, Good Hoist Price

Electric chain hoists, cost-effective chain hoist crane solutions
What is an electric chain hoist? Electric chain hoists is a type of small but powerful hoisting equipment for general loads handling from warehouse to construction site. To meet the demands of various applications, the electric chain blocks can be designed to be hook mounted, lug mounted & hoist trolley mounted including electric hoist trolley & motorized electric hoist trolley.

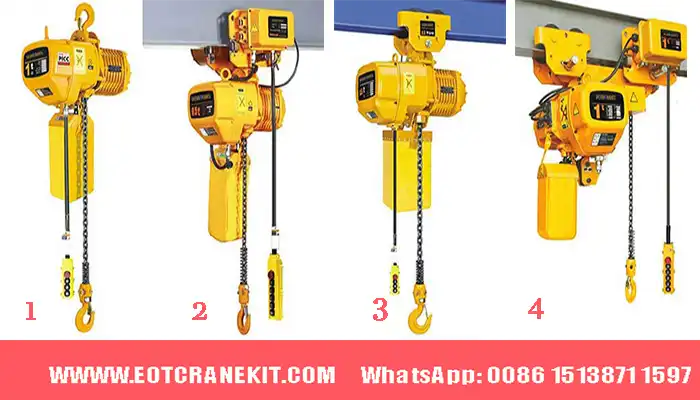

Main types of electric chain hoists

Hook suspension , Electric motor trolley, Manual trolley and Low headroom electric chain hoists

With different mounting types, the electric chain hoists & electric chain blocks can be used on various types of overhead travelling cranes such as overhead cranes, gantry cranes, jib cranes, monorail cranes & H & I beam cranes, etc. All of our electric chain hoist cranes can be customized for your specific setup with good and reliable performances to make the best value of your investment!

Overview of electric chain hoists

A high performance electric chain hoist & electric chain hoist is a cost-effective hoisting solution for various lifting applications where positive load engagement are required at multiple lift points. The standard loading capacity of the electric chain hoists are 0.5 ton, 1ton, 2 ton, 3 ton, 5 ton, 10 ton, 15 ton, 20 ton up to 32 ton and customized electric chain block designs are needed when up 32 tons. The main hoist parameters and specifications are presented for your reference.

Main parameters& specification of electric chain hoists

  • Electric hoist type: standard electric chain hoists
  • Lifting capacity of electric chain hoist: 0.5 ton to 5 ton,35ton, , and customized
  • Lifting height of electric chain hoist: 6m to 100 m
  • Lifting speed of electric chain hoist: 0.4/1.2 to 2.4/11.8m/min
  • Working class of electric chain hoist:M3, M4, M5
  • Ambient temperature of electric chain hoist: -20℃ to 40℃
  • Speed control of electric chain hoist:Single Speed, Dual Speed, Infinitely Variable
  • Power supply of electric chain hoist: Single phase , 3 Phase voltage from 220V -690V , 50/60HZ
  • Hoist control of electric chain hoists: Low voltages handle control & remote control optional

A single-phase electric chain hoist is an ideal lifting equipment for mechanics and smaller shops by plugging into standard electrical outlets simply and conveniently whereas, the Three-phase electric chain hoists are usually used in larger industrial applications where heavy loads are handled on a daily basis.And customized electric chain hoist blocks are available, with rain cover and other featured designs. Contact us to get customized electric chain hoists.

Main types of of electric chain hoists

Based on the types of hoist mount, the standard electric chain hoists can be grouped in hook mounted, lug mounted or eye mounted electric chain blocks, and trolley mounted electric chain hoists, either a motorized or manually powered trolley. With fix hoist design, the electric chain hoists can offer loading lifting up and down vertically. With hoist trolley, the electric chain hoists can be suspended on a fixed overhead beams or monorails to move horizontally and hoists can lift loads vertically.

Hook electric chain hoists

Hook mounted, lug mounted, eye mounted electric chain fall hoists with no trolley

Hook mounted electric chain fall hoists are designed solely for lifting loads up and down vertically. The horizontal handling of the electric chain fall hoists are in conjunction with the hoist trolleys. The electric chain fall hoists with hooks or lugs can be used as fixed hoists mounted on supporting structures, and the electric chain fall hoists with trolleys can be used as travelling hoists running on suitable overhead girder beams or rails.

Main parameters of hook suspension electric chain hoists

  • Electric chain hoist type: Hook mounted & hook suspension motorized chain hoists
  • Capacity f hook suspension chain hoist:300kgs -50tons
  • Insulation grade of hook suspension chain hoist: F class
  • Working class of hook suspension chain hoist:M3, M4, M5
  • Working temperature of hook suspension chain hoist: -40℃ – +40℃

Customized hook suspension electric chain hoists are available ahead of standard electric chain hoists. Click for more on hook suspension chain fall electric hoist. Contact us to get customized hook suspension chain hoist design and fixed type hook electric hoist price.

Motorized trolley & electric trolley electric chain hoists

Powered trolleys or motorized hoist trolley may add a little cost but offering a high efficient chain fall electric hoist solution which will be a cost-effective solution for a high volume material handling. Electric chain blocks with motorized trolley may give you a exceptional return .

Main parameters& specification of motorized trolley electric chain hoists

  • Electric hoist type: standard electric trolley chain fall hoists
  • Lifting capacity of motor trolley electric chain hoist: 0.5 ton to 35 ton
  • Lifting height of motor trolley electric chain hoist: 6m to 48m
  • Lifting speed of motor trolley electric chain hoist: 0.4/1.2 to 2.4/11.8m/min
  • Working class of motor trolley electric chain hoist:M3, M4, M5
  • Ambient temperature of motor trolley electric chain hoist: -20℃ to 40℃
  • Speed control of motor trolley electric chain hoist:Single Speed, Dual Speed, Infinitely Variable
    Customized electric trolley chain fall hoists are available ahead of standard electric trolley chain fall hoists. Click for more on electric trolley chain fall hoists. Contact us to get customized electric trolley chain fall hoist design and electric trolley chain fall hoist price.

Manual trolley electric chain hoists

Manual trolley electric chain hoist is a light duty electric chain fall hoists which is mounted or suspended on a manual trolley or hand operated hoist trolley, equipped on small single girder crane, overhead H Beam & I beam, monorail systems, and other rails, with lifting capacity from 500kg to 20 ton for light duty and small loads handling. Manual hoist trolley are more simple and cheap, which can be grouped into geared trolleys or plain trolley and widely used on manual hoist cranes.

The manual trolley chain fall electric hoist is an economical but effective trolley hoists with the combination of manual trolley and electric chain hoists which will be a cost-effective solution for applications where light duty material handling with frequent vertical lifting but less horizontal movement is required.

Main specifications of electric chain hoists with manual trolley

  • Electric hoist type: electric chain hoists with manual trolley or hand operated trolley
  • Lifting capacity of manual trolley electric chain hoist :500kg, 1ton, 2 ton, 3 ton, 5 ton, up to 20 ton or customized
  • Lifting height of manual trolley electric chain hoist:100m
  • Lifting speed of manual trolley electric chain hoist: 6.8 m/min 5.4 m/min 2.7 m/min
  • Type of manual trolley electric chain hoist: plain trolley or geared trolley
  • Working class of trolley electric chain hoist:M3
  • Working temperature of manual trolley chain hoist: -20℃~+40℃
  • Chain falls design of manual trolley chain hoist: according to the capacity

Customized manual trolley electric chain hoist are available ahead of standard electric chain hoists. Click for more on manual trolley chain fall electric hoist. Contact us to get customized manual trolley chain fall electric hoist design and manual trolley electric chain hoist price.

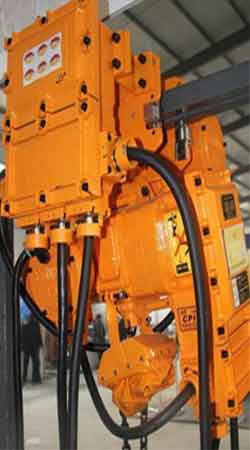

Explosion proof electric chain fall hoists

The explosion proof electric chain hoists are deigned and fabricationsed in accordance with international standards. The explosion proof electric chain hoists are consisted of hoist parts and components with features of explosion proof, spark resistant and high safety , which are widely used in hazadours applications to ensure the safety and improvematerial handling efficicency.

Specifications of Explosion Proof Chain Hoist

  • Capacity of explosion proof electric chain hoist: 0.5t~50t
  • Lifting height of explosion proof electric chain hoist: 3m~30m
  • Working class of explosion proof electric chain hoist: M3, M4, M5
  • Working temperature of explosion proof electric chain hoist: -20℃~+40℃

Customized explosion proof electric chain hoists are available ahead of standard electric chain hoists.Click for more on explosion proof electric chain hoists. Contact us to get customized explosion proof electric chain hoist design and explosion proof electric hoist price.

Low headroom chain electric hoist

Low headroom electric chain fall hoists are specially designed for workshop with limited working space. With customized designs, the lifting height of low headroom electric chain fall hoists can up to 130 meters, which will be a cost-effective chain fall electric hoist solution for your applications.

Main parameters of low headroom electric chain hoist

  • Loading capacity of low profile chain hoist:1.5 ton, 2 ton ,2.5 ton ,3 ton ,5 ton,10 ton & much more with customized design.
  • Lifting height of low profile electric chain hoist:3 ~ 130 m or customized
  • Lifting speed of low profile chain hoist: Single speed: 6.6 m/min; or customized
  • Variable frequency speed: 0.1 ~ 12.5 m/min; or customized
  • Working class of low profile electric chain hoist:M3 ~ M7
  • Working temperature of low profile electric chain hoist:-20 ~ 40 ℃
  • Mounting type of low profile hoist : fixed type & travelling type

Customized low profile electric chain hoist are available ahead of electric chain hoists. Click for more on low profile electric chain fall hoists. Contact us to get customized low profile chain fall electric hoist design and low profile chain fall electric hoist price.

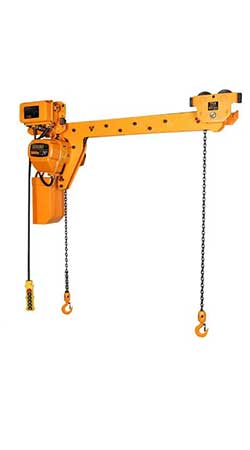

Double hook electric chain fall hoists

The twin hook electric chain fall hoists is developed on the bases of low headroom electric chain fall hoists and it has a very similar structure of the low headroom electric chain fall hoists. The twin hook electric chain hoists are mainly consisted of the components & parts including electric motor, transmission mechanism, chains, hook and safety devices, etc. The distance between the two lower hooks can be customized from 0- 3 meter. All of the twin hook electric chain fall hoists can be customized for your specific setup,with good and reliable performances to make the best value of your investment!

Main parameters of twin hook electric chain hoists

  • Lifting capacity of twin hook electric chain hoists : 0.5~50 ton
  • Standard chain length: 3m (can be customized)
  • Mounting type of twin hook electric chain hoists: With upper hook (fixed) or with trolley
  • Lifting speed of twin hook electric chain hoists : Single/Double speed option
  • Chain diameter of twin hook electric chain hoists : 6.3~11.2mm (as per different capacities)
  • Motor rotate speed:1440r/min(single speed), 2880/960 r/min(double speed),
  • Working duty of twin hook electric chain hoists :M3
  • Working temperature of twin hook electric chain hoists : -40ºC ~ +40ºC

Customized twin hook electric chain hoists are available ahead of standard electric chain hoists. Click for more on twin hook electric chain fall hoists. Contact us to get customized twin hook chain fall electric hoist design and twin hook chain fall electric hoist price.

Customized Electric Chain Hoists Video

75 ton electric chain hoist, customized 75 ton electric chain fall hoist, 75 ton motorized chain hoist design testing

Main components and parts of electric chain hoists

Generally , Electric chain hoist blocks is a light and small lifting equipment, which is consisted of electric motor, transmission mechanism, chains, hook and safety devices, etc. The general features of the electric chain hoist is handy and powerful, compact structure, small size, and light weight., easy installation and operation, with reliable and stable performance and long working life. And all of our electric chain hoist blocks are processed according to international standards.

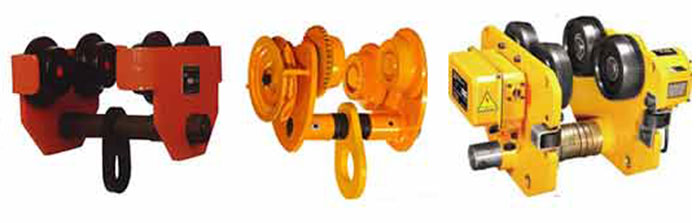

hoist trolley: plain trolley, geared trolley, and motorized trolley

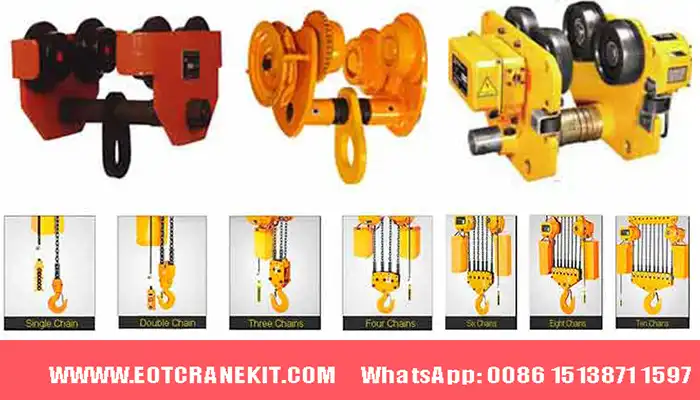

Hook lug Manual trolley and electric trolley for electric chain hoists

  • Plain Trolley: A plain/push is operated by maneuvering the trolley along the Beam by human power via the hoist operator. The operator will grab either the hook or the item being lifted and pull or push the item to move it in the desired direction along the Beam.
  • Geared Trolley: A geared trolley is used by pulling a chain hanging from the trolley to maneuver the hoist along the beam or track. A geared trolley operated by pulling the hand chain.
  • Motorized Trolley: The motorized trolley option has motor equipped on the side of the trolley wheels, and usually has its own control pendant. A trolley speed must be specified when ordering a motorized trolley.

Selecting the right hoist mounting type for your electric chain blocks is very important and error on selection may be very costly or it may cause trouble in your future work which can be avoided totally by contact our electric hoist and crane specialists.

electric chain hoists with different chain fall designs

Applications

Electric chain hoists & electric chain fall hoists have a wide application. The electric chain hoists are mainly used in various types of plants, factory, storage, wind-power stations, logistics, ports, construction field, and other places or workshops for loading & unloading in factories,warehouses, or other workshops for machinery installation, dispatching goods, equipment maintenance with capacity of 500 kg, 1 ton, 2 ton, 3 ton, 5 ton ,10 ton 20 ton , 35 ton ton, and customized .

Generally, the electric chain hoists and chain blocks are ideal hoisting solutions for low headroom applications , high production working environments, and workshops or workstations required periodic lifting and positioning. With different mountings ,ie, hook mounted, lug mounted, trolley mounted, the electric chain hoists are widely used on overhead cranes, gantry cranes, jib cranes, monorail cranes & H & I beam cranes, etc. All of our electric chain hoist cranes can be customized for your specific setup with good and reliable performances to make the best value of your investment!

  • Jib cranes or workstation cranes with free-standing or wall/pillar mounted design are ideal for applications where material handling is centered in a specific working areas with rotating up to 360 degree.
  • A monorail crane is light overhead single beam crane, straight or curved, widely in applications such as manufacturing automation and production lines.
  • An A frame gantry crane is an I-beam or box shaped girder that runs on ground rails in a defined space to assist heavy loads handling.

The electric chain hoists are able to cooperate with various types of overhead travelling cranes to meet your material handling requirements in many applications with high safety,and efficiency. The electric chain hoist cranes will be a good and cost-effective options for you. Contact us to check the chance that we may save your money.

As an electric chain hoist & crane manufacturer and suppliers, we can ensure your electric chain hoists cranes are operating at its very best which are very much suitable to your application conditions. If you need an electric chain hoists, either standard chain hoists or custom designed electric chain hoists with features of spark resistant, explosion proof, or others please feel free to contact us.

Get your electric chain hoists

Trusted hoists manufacturer, best value chain hoist crane solution

As hoist manufacturer and supplier, we are able to provide you electric chain hoists with various mounting types with standard capacity from 500 kg up to 35 ton and customized electric chain hoists with larger tonnages. We are aimed to work out the suitable motorized chain hoists solution to meet your needs at present and in the future.

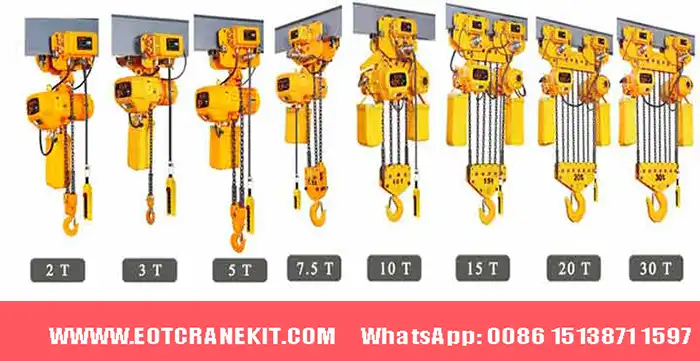

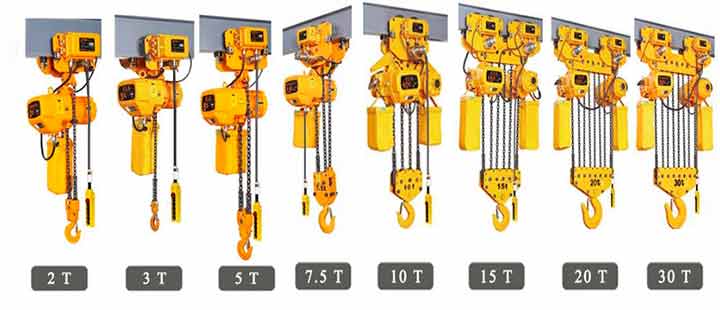

electric chain hoists of various tonnages including 2 ton, 3 ton, 5 ton, 7.5 ton, 10 ton, 15 ton, up to 32 ton

On selecting the right electric chain hoists for your application, and the information needed to required when selecting electric chain hoists:

  • Required capacity : weight of the loads need to be lifting based on current and future needs.
  • Lifting speed : depending on production output needs.
  • Lifting height: highly confined by the building height.
  • Suspension/ mounting type: hook, geared trolley, motorized trolley
  • Power supply : single phase or 3-phase
  • Application environment: In what kind of workshop the electric chain hoist will be used?
  • Duty cycle : how often the electric chain hoist will be operating per day.
  • Budget : consider more than the chain hoist cost, but also the quality and the future maintenance.
