Slewing Jib Crane Rotation Guide -360° & 270° Types

It depends on industrial workspace arrangement and material flow direction.

• Choose 360 degree jib crane if your workshop is open and materials come from multiple directions in daily operation
• Choose 270 degree jib crane if the crane is installed near a wall, column, or fixed production line layout

Simple practical explanation:

• 360° = flexible layout, "work from multiple positions in the workshop"
• 270° = controlled layout, "work only within a defined industrial zone"

This is a very common issue in jib crane rotation systems, and in many cases it is not directly related to overload in industrial use.

Typical causes include:

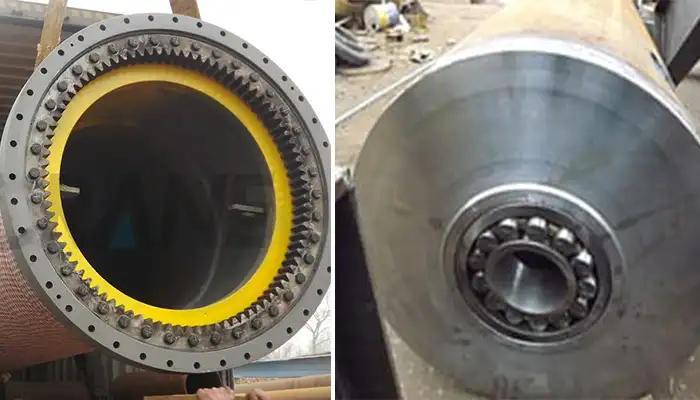

• Dust entering the slewing bearing in workshop environment
• Lack of lubrication or delayed maintenance in rotation system
• Poor installation alignment of column or base plate
• High rotation frequency causing wear in the slewing jib crane system
• Bearing quality not suitable for continuous industrial operation

In workshop language, operators usually describe it as: "it feels hard to turn."

It depends on daily working frequency and load level in industrial operation.

• Manual rotation (0.25–2 ton): Suitable for light duty workstation jib crane use with low frequency lifting tasks
• Semi-assisted rotation (2–5 ton): Balanced option for machining and fabrication workshops, reduces manual pushing force
• Electric rotation system (5–10 ton): Used in high frequency or heavy duty industrial production lines, motor driven and stable

Simple rule: the more frequent the industrial use, the more you should reduce manual effort in rotation system selection.

In most industrial factories, wear is mainly caused by working environment and operation habits, not only design.

Common causes include:

• Dust and debris entering the slewing bearing area
• Lack of regular lubrication in rotation components
• Continuous high-cycle operation in 360 degree jib crane systems
• Poor installation alignment during setup
• Humidity or outdoor exposure affecting bearing service life

In practical terms: daily usage habits and maintenance matter more than expected in industrial operation.

You can do simple on-site checks before purchasing a free standing jib crane or floor mounted jib crane.

• Rotate the jib arm without load → should feel smooth, no tight or rough points
• Stop at different angles → no drifting, rebound, or instability
• Push test (manual type) → should feel light, controlled, and stable
• Ask about slewing bearing type → clear and direct answer is a good sign
• Check maintenance explanation → should be simple, not vague

Simple rule: if rotation already feels rough during demonstration, it will not improve after installation in industrial use.

In practical use, rotation is not an extra function. It is the core working motion of a slewing jib crane system.

A typical industrial working cycle is very repetitive:

• Lift the load
• Swing (rotate) to target position
• Align and adjust position
• Place the load

And then repeat again and again during the shift.

So in workshop terms, lifting happens once per cycle, but rotation happens every cycle. In practice, this is where most of the working time is spent.

If the rotating jib crane bearing system or slewing mechanism is not smooth, it becomes obvious immediately in industrial operation.

• Operators need more force during manual rotation
• Load positioning becomes slower in machining or assembly tasks
• Manual slewing jib crane fatigue increases during long shifts
• Cycle time increases, which directly reduces daily output

In many factories, operators simply say: "this crane feels heavy to turn." In most cases, that is a rotation system issue, not a lifting capacity issue.

Even if you choose a 5 ton jib crane, 10 ton slewing jib crane, or a heavy-duty rotating jib crane system, it can still feel slow in operation if rotation quality is poor.

In industrial ity, this happens because:

• Rated capacity does not reflect rotation torque performance under working load
• Slewing bearing quality has more impact on smoothness than tonnage rating
• High-frequency 360 degree jib crane operation cycles accelerate wear on rotation parts
• Dust, fumes, and humidity in workshops affect long-term stability

Because of this, experienced buyers often do a simple check before purchase—they rotate the jib arm by hand. That gives a very direct feeling of performance.

For buyers selecting a slewing jib crane system, rotation quality directly affects daily production performance in industrial environments.

• Faster material handling in assembly lines
• More accurate positioning in machining and fabrication work
• Lower operator fatigue during continuous shifts
• Higher overall jib crane working efficiency per cycle time

So to keep it simple: lifting defines what the crane can carry, but rotation defines how fast and how smoothly industrial work gets done.

A 360 degree jib crane is used when full circular coverage around the column is required. It allows operators to swing loads in any direction within the working radius.

Common industrial use cases include:

• Open workshops with no wall or structural blockage
• Assembly zones with multiple workstations around one crane
• Maintenance bays where equipment comes from different directions
• General fabrication areas requiring flexible jib crane swing movement

In simple workshop language: "one crane, we can reach everywhere around it."

But in industrial practice, there are important structural requirements:

• Foundation must be stronger due to full-circle loading
• The slewing jib crane bearing system must handle continuous 360° rotation evenly
• Installation alignment must be accurate to avoid uneven rotation over time
• Maintenance access for lubrication should be planned from the beginning

So yes, it gives full flexibility—but it also puts more demand on structure and installation quality.

A 270 degree jib crane is designed for partial rotation. It is commonly installed near walls, columns, or production lines where full-circle movement is not required in industrial workflow.

Typical application scenarios:

• Machine feeding stations beside production lines
• Wall-mounted or column-side installation layouts
• Compact workshops with limited space
• Fixed-direction material flow systems in production areas

In practical workshop terms: "we only rotate where work is needed, not the full circle."

Key practical points:

• More compact and space-efficient design
• Easier installation compared to full 360 degree jib crane systems
• Often more cost-efficient in rotating jib crane system projects
• But working range is limited, so workflow direction must be clearly planned

In industrial projects, selection becomes simple once you look at the actual workshop layout.

• If the workstation is open and materials come from multiple directions → choose a 360 degree jib crane
• If the workstation is along a wall or production line → a 270 degree jib crane is usually sufficient
• If workflow may change or future expansion is expected → 360° gives more flexibility
• If process is fixed and repetitive → 270° is more practical and cost-efficient

Or simply put:
360° means "we want full reach everywhere", while 270° means "we only work in this defined zone."

That is usually how buyers decide when they stand inside the workshop and evaluate space conditions.

In this type, the operator rotates the jib arm by hand. Simple structure, widely used in light workshop handling applications.

Typical use:

• Light assembly stations in industrial workshops
• Maintenance workshops with low frequency lifting tasks
• Small parts handling and positioning areas

Key practical points:

• Operator pushes by hand, no motor involved in rotation system
• Rotation should feel smooth and "light" even without load in use
• If it feels stiff when empty → that is a clear warning sign in jib crane selection
• Works best when jib crane swing movement frequency is low to medium

In simple workshop terms: "if it feels hard to turn on day one, it will only get worse later in industrial operation."

This is a middle-ground solution widely used in industrial workshops—especially machining and fabrication environments.

Typical use:

• Machine feeding stations in production lines
• Fabrication and welding workshops
• Medium-frequency industrial handling systems

Key practical points:

• Reduces pushing force so operators don't "fight" the crane during rotation
• Improves control during positioning and alignment tasks
• Better stability for rotating jib crane load positioning operations
• Good balance between cost and working efficiency in industrial projects

Simply put: not fully manual, not fully powered—something in between that makes daily industrial work easier.

This is used when rotation is frequent or when loads are heavy. The system is motor-driven in industrial operation.

Typical use:

• High-frequency production workshops
• Heavy-duty assembly lines in industrial facilities
• Continuous operation environments

Key practical points:

• Motor-driven rotation, no manual pushing required
• Stable swing movement under load in slewing jib crane systems
• Best choice for heavy duty industrial production cycles
• Suitable for repetitive operations where efficiency matters
• Operator mainly controls direction, system handles rotation force

In simple workshop language: "you press the button, it rotates smoothly, that's it."

To make it simple in industrial selection:

• Low frequency + light load → Manual slewing jib crane
• Medium frequency + controlled workflow → Semi-assisted rotation system
• High frequency + heavy load → Electric jib crane rotation system

Or to put it plainly: the more you use it per day in industrial operation, the more you should reduce manual effort on rotation.

This is a very common issue in industrial operation.

• Greasing is forgotten or delayed during busy production schedules
• Dry running increases resistance in rotating jib crane systems
• Long-term lack of lubrication leads to faster wear on bearing surfaces
• Maintenance gets pushed back—"we'll do it later" kind of situation

In simple workshop words: no grease, no smooth swing. That's it.

Sometimes it's not design problem, but usage intensity.

• Too many rotation cycles per hour in continuous production lines
• Non-stop use in 360 degree jib crane operations
• Heat build-up and continuous stress on slewing components
• Operators keep swinging the arm all day—no pause

In many factories you'll hear this: "this crane never stops turning."
And yes, that kind of duty speeds up wear.

This one is often underestimated, but very important.

• Column not perfectly vertical during installation
• Base plate not properly leveled or tightened
• Small misalignment causes uneven load distribution in rotation
• This affects slewing jib crane stability and bearing life

Or simply put: if installation is not straight, rotation will never feel right.

Environmental conditions also play a quiet but steady role.

• Moisture leads to corrosion in slewing bearing surfaces
• Outdoor jib crane rotation systems wear faster over time
• Temperature changes affect lubrication performance and viscosity
• Long-term exposure reduces smoothness gradually

So yes, it's not sudden failure. It's slow change—you feel it over time.

So at the end of the day, it's not only about design quality.

It ly comes down to this:

• good design
• proper maintenance
• correct daily use

If one of these is missing, the rotating jib crane system will slowly become harder to operate. And operators will notice it first—before anyone else on site.

Next, do a simple stop test.

• Rotate to different positions and release
• The arm should stay in place
• No rebound movement or drifting back
• Stable holding position across full 360 degree jib crane range or 270 degree jib crane arc

If it moves back by itself, that's something to pay attention to.

This is important for manual or semi-assisted systems.

• Push the jib arm gently by hand
• Movement should feel smooth, not jerky or uneven
• No "heavy zones" during swing movement
• Operator effort should feel light and controlled

In simple words: if you already feel tired pushing it empty, imagine when it is loaded.

Don't hesitate to ask directly.

• "What slewing bearing do you use in this slewing jib crane system?"
• Check if it is industrial-grade and suitable for continuous rotation
• Good suppliers will answer clearly, no hesitation
• Weak systems often avoid giving clear details

If the answer is vague… that's already a signal.

This is often ignored, but it matters a lot.

• Ask how often lubrication is required
• Check if maintenance points are easy to access
• See if they have a clear maintenance schedule for jib crane rotation systems
• If they hesitate or cannot explain clearly, be careful

In practice: good equipment always comes with simple maintenance rules.

There is one practical rule many experienced buyers follow:

If it already feels stiff or uneven during the demo, it will not improve after installation.

No matter what the specification says, the rotation performance you feel on site is the truth.
