Overhead Bridge Crane Installation Without Corbels – Guide

Crane corbels are reinforced projections on the side of a building's columns or walls. They act as anchor points for the crane runway beams, carrying the weight of the crane, hoist, and lifted loads.

Key points about crane corbels:

• Support the horizontal load of the crane bridge and trolley
• Reduce stress on the main building structure
• Ensure long-term stability and minimize vibrations
• Commonly found in purpose-built industrial buildings

Without corbels, the building's walls alone usually cannot safely carry the weight of the crane and its maximum load. That's where things get tricky.

Not every workshop or warehouse is designed with corbels. Older buildings, rented facilities, or multi-use industrial halls often lack these projections. Installing an overhead crane in such spaces can be challenging because the crane needs solid support.

Common problems include:

• Risk of structural damage if rails are mounted directly on weak walls
• Difficulty achieving proper alignment of the crane rails
• Higher installation costs due to custom support solutions
• Limited options for crane capacity and span

When corbels are missing, simply attaching rails to the walls isn't safe. Alternative support structures or modifications are necessary to ensure safety, operational efficiency, and compliance with engineering standards.

This guide is designed for engineers, workshop managers, and crane buyers who face the challenge of installing overhead bridge cranes without corbels. It covers practical solutions, installation methods, and safety considerations so that you can plan your crane setup without compromising building integrity or operational efficiency.

By the end of this article, readers will understand:

• How to evaluate the building structure for crane installation
• Different support options when corbels are not available
• Steps to safely install a bridge crane in non-standard environments
• Cost and practical considerations for long-term operation

Even if a structure seems strong enough, legal and safety standards cannot be ignored. Installing a crane without meeting regulations can be dangerous and can lead to fines, liability, or insurance issues.

Important compliance points include:

National and local building codes

• Some codes specify maximum allowable loads on walls, columns, or floors.
• Local authorities may require engineering approvals for structural modifications.

OSHA and ISO requirements for crane installations

• OSHA standards cover crane safety, load testing, and operator safety.
• ISO standards (e.g., ISO 4301, ISO 9927) guide crane classification, installation, and maintenance practices.

Ensuring compliance early in planning saves headaches during installation and prevents costly retrofits or operational downtime.

Buildings without crane corbels are common in multiple sectors. Understanding the type of facility can help identify practical installation solutions.

Steel fabrication plants

• Often need heavy-duty cranes for H-beams, girders, and welded structures.
• Workshops may be older, with walls and roofs not designed for cranes.

Warehouses and logistics facilities

• Usually lighter structures with open floor plans.
• Require cranes for pallet, container, or bulk material handling, often needing underhung or gantry solutions.

Heavy machinery workshops

• Cranes handle machine parts, molds, or presses.
• Structures may be retrofitted from other industrial uses, making corbels rare.

Instead of mounting rails on corbels, steel columns inside the building can carry the runway beams. The crane bridge runs on these rails just like a traditional overhead crane. top running freestanding overhead cranes

Installation method:

• Fabricate or buy steel columns rated for crane loads
• Weld or bolt runway beams on top of the columns
• Ensure precise alignment to prevent mis-tracking of the crane bridge

Structural requirements:

• Columns must handle both vertical loads (crane + load) and horizontal forces from bridge movement
• Floor foundation must be strong enough for the column base plates
• Proper bracing may be needed to avoid sway or vibration

Cost and flexibility considerations:

• Less expensive than fully retrofitting the building, but higher than using underhung cranes
• Columns can be designed to fit existing layouts and future expansions
• Offers more stability than free-standing gantries for long-span or heavy-duty cranes

Freestanding Underhung cranes are suspended from the building roof structure instead of resting on corbels or columns. They run on rails mounted directly to beams or purlins.

Definition and mechanics:

• The crane bridge hangs below the roof structure
• The hoist and trolley travel along the bridge as usual
• Loads are transferred directly to the roof or supporting beams

Load limitations and suitability:

• Typically suited for light- to medium-duty cranes
• Roof or beam structure must be evaluated carefully to ensure it can carry the maximum load
• Works well in warehouses or workshops where floor space cannot be blocked by columns

Advantages:

• Frees up floor space
• Minimal structural modification if beams are strong enough
• Can be installed in multi-purpose buildings without major disruption

Sometimes the building can be modified to support a traditional top-running crane. This involves strengthening roof trusses, girders, or other load-bearing members to carry the crane safely.

Strengthening techniques:

• Adding steel plates, angles, or channels to distribute crane loads
• Welding additional supports or bolting reinforcement members
• Installing cross-bracing or gusset plates to improve stability

When this is feasible vs. costly:

• Feasible in buildings with accessible roof structures and moderate crane loads
• May become expensive or impractical if extensive modifications are required
• Works best when long-term crane operation is planned and floor space must remain free

Choosing the right support method depends on building structure, crane type, load capacity, and operational needs. Free-standing gantries are flexible but occupy space, steel columns give stability, underhung cranes save floor area, and roof reinforcement allows traditional setups in existing buildings. Each solution has trade-offs between cost, complexity, and practicality.

Engineers calculate all loads including bridge, trolley, hoist, and maximum lifted weight.

• Determine vertical and horizontal forces on walls, beams, or columns
• Account for dynamic loads during crane movement, starts, and stops
• Include safety factors, typically 20–30% above max load
• Assess if floor reinforcement is needed for gantries or underhung cranes

Accurate calculations ensure safe and reliable operation.

Choosing the proper crane type early avoids costly modifications.

Single girder vs. double girder:

• Single girder: lighter, easier to install, suitable for small- to medium-duty loads
• Double girder: heavier, more stable, required for long spans or heavy loads

Top-running vs. underhung:

• Top-running: requires strong beams or columns, better for heavy-duty lifting
• Underhung: suspends from roof beams, saves floor space, suitable for lighter loads

Prepare or modify supports to safely carry the crane loads.

• Fabricate steel columns or gantry supports if building cannot carry the load
• Reinforce existing roof trusses or beams for top-running cranes
• Install gusset plates, cross-bracing, or base plates for stability
• Ensure all modifications meet structural engineering standards

Proper preparation ensures safe long-term operation with minimal vibration or misalignment.

Rails must be perfectly level and aligned to guarantee smooth crane travel.

• Use laser leveling tools or precision instruments
• Align rails along the building span accurately
• Secure rails with bolts or welds depending on support structure
• Check straightness and gap tolerances per manufacturer specifications

Accurate rail installation reduces maintenance costs and extends crane lifespan.

Install the hoist and trolley carefully, as this is the core of crane operation.

• Lift the bridge onto rails using temporary hoists or jacks
• Mount trolley and hoist according to manufacturer instructions
• Test movement along the full runway without load
• Inspect for smooth travel, alignment, and braking

Load testing:

• Start with 50% of rated capacity
• Gradually increase to full load while monitoring stability
• Check for vibrations, noises, or misalignment

Conduct a full inspection before putting the crane into regular operation.

• Verify all bolts, welds, and supports are secure
• Confirm load limiters, emergency stops, and safety devices are functional
• Document test loads and results for compliance records
• Train operators on safe operating procedures

Proper commissioning ensures the crane operates safely, reliably, and efficiently from day one.

Cranes installed without corbels may transfer unexpected forces to the building structure. Monitoring vibration and deflection ensures long-term stability.

• Measure vertical and horizontal deflection of beams and rails under load
• Inspect for excessive vibration during crane acceleration or braking
• Adjust rail alignment, support braces, or hoist operation if readings exceed safe limits

Even small vibrations over time can cause rail wear, misalignment, or structural damage.

Cranes must have functional safety devices to prevent accidents and equipment damage.

• Emergency stop buttons accessible from the crane and operator controls
• Overload sensors to prevent lifting beyond rated capacity
• Limit switches to stop trolley and hoist at end positions

Testing these systems during installation ensures the crane responds correctly under emergency conditions.

The installation phase can be more dangerous than regular operation, especially when modifying structures or lifting heavy components.

• Ensure all workers wear personal protective equipment (PPE) such as helmets, gloves, and harnesses
• Use temporary supports and jacks to hold beams and columns in place
• Maintain clear communication between crane operators, riggers, and supervisors
• Keep unauthorized personnel away from the installation area

A well-organized installation reduces the risk of accidents and structural errors.

Installations must meet national and local regulations to ensure legal and operational safety.

• Verify building permits and structural approvals for modifications
• Follow OSHA or equivalent standards for crane installation and operation
• Apply ISO standards (ISO 4301 for classification, ISO 9927 for inspections)
• Keep records of structural calculations, load tests, and safety inspections

Meeting these standards protects workers, ensures insurance coverage, and reduces liability.

Time planning is as important as cost. A crane installation affects production, logistics, and worker safety, so scheduling must be precise.

• Conduct a detailed site survey and structural assessment first.
• Coordinate with structural engineers, crane suppliers, and installation teams.
• Schedule material delivery, steel fabrication, and installation in stages.
• Factor in downtime for production if using the facility during installation.
• Plan for load testing and commissioning after the physical installation is complete.

Realistic timelines prevent rushed work, which can compromise safety and lead to errors.

A crane installation is not just about today—it is about the next 10–20 years of operation.

• Scalability: Will you need to increase crane capacity or add another crane in the future? Choose support structures that allow expansion without major reconstruction.
• Maintenance accessibility: Ensure hoists, trolleys, and runway beams are easy to access for inspection and repairs. Consider adding catwalks or maintenance platforms if needed.
• Operational flexibility: Avoid solutions that block workflow or restrict material handling patterns. Free-standing gantries and underhung cranes often provide more flexibility in changing layouts.

Planning for the future reduces downtime, lowers lifecycle costs, and ensures the crane continues to meet operational needs as production changes.

A logistics facility needed a crane to lift pallets and light bulk materials, but the walls were weak and there were no corbels. The floor was strong enough to support a free-standing solution.

Solution implemented:

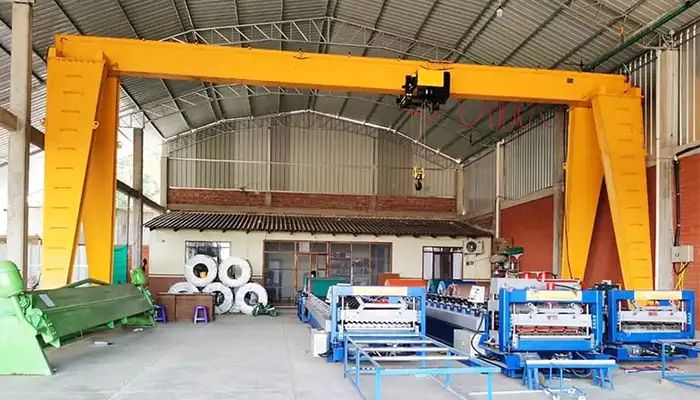

• Built a free-standing steel gantry system spanning the width of the warehouse.
• Designed the gantry columns with load distribution plates to protect the floor.
• Installed a single girder crane with a 5-ton hoist for material handling.
• Completed full load testing and emergency stop verification.

Lessons learned:

• Free-standing gantries provide flexibility in rented or older buildings.
• Floor reinforcement may be needed even for lighter cranes.
• Regular inspection of base plates and bolts prevents long-term settlement or misalignment.

• Conduct a thorough site assessment to identify structural limitations and obstacles.
• Choose a support method that matches crane load, building strength, and workflow needs.
• Reinforce or fabricate supports carefully to minimize vibration and structural stress.
• Align rails precisely and test gradually before full operation.
• Document all calculations, modifications, and tests for compliance and maintenance.

Takeaway: Even without corbels, overhead cranes can be safely and efficiently installed with proper planning, structural solutions, and attention to detail.
