Low Headroom Wire Rope Hoist, Cost-effective Crane Hoist Design
Electric wire rope hoist- low profile, low clearance, low headroom hoist design- for single girder crane, H beam & I beam, saving electric hoist crane costs.
| Hoist Type | Electric wire rope hoist with low headroom design |
| Loading Capacity | 1ton to 32 ton |
| Lifting Height | 6m-30m |
| Working Class: | M3-M4 |
Category: Hoist

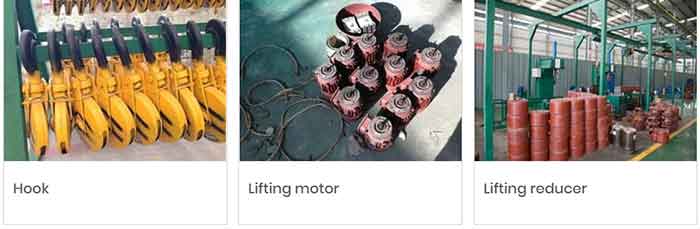

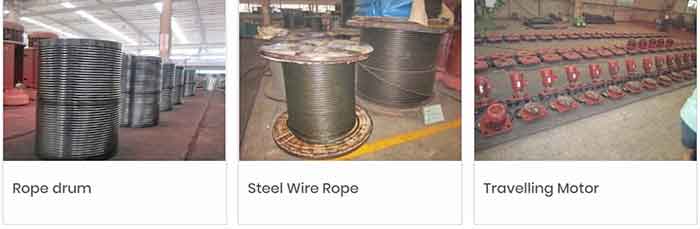

Your Trusted Low Headroom Wire Rope Hoist Manufacturer & Supplier
Low Headroom Wire Rope Hoist 1 Ton to 32 Ton
Low Headroom Wire Rope Hoist | Cost-Effective Crane Hoist Design
Low headroom wire rope hoist is a new type of electric rope hoists developed on the basis of CD& MD electric wire rope hoists, with same working conditions but offering more lifting room. With the features of compact structure, larger lifting height and single & double lifting speeds, the low headroom electric hoists are widely used for general material handling in existing workshops with limited overhead clearance or newly built buildings where the low headroom hoists can increase the utilization rate of working space inside the workshops, reduce the blind area,lower the workshop construction costs and improve customer's investment efficiency. With low profile & low clearance hoist design, the electric wire rope hoist crane will be a cost-effective overhead travelling solutions for you!
Low headroom wire rope hoist, the econonomical solution with capacity up to 32 ton
Main parameters of low headroom wire rope hoists
The wire rope low headroom electric hoist is designed on the base of CD/ MD wire rope hoist,with the same working conditions. The standard low headroom wire rope hois can be used for general material handling with lifting capacity of 1 ton -32 ton, lifting speed of 0.8 -8m/min, and larger lifting height of 6m, 9m, 12m, 18m, 24m, 30m, and up to 60 with customized design. The main parameters and hoist specifications of the standard low headroom electric wirer rope hoists are presented for your reference. Contact us to get customized low headroom hoists by send a inquiry below.
Main parameters of low headroom wire rope hoists
- Electric hoist type:Electric wire rope hoists with low headroom & low profile design
- Maximum Lifting capacity:1ton to 32 ton - 3 ton, 5 ton, 10 ton, 15 ton, 20 ton, up to 32 ton
- Maximum lifting heightof low headroom hoist :6m, 9m, 12m, 18m, 24m, 30m,
- Lift Speedof low headroom wire rope hoist:0.8-8m/min
- Mounting typeof low headroom wire rope hoist:Stationary or Moveable
- Power Supplyof low headroom wire rope hoist:380V 50Hz or on request
- Working class of low headroom wire rope hoist： M3-M4
- Control Method:Pendent Control or Remote Control
- Application: general material handling on single girder hoist crane, h beam & i beam, etc.

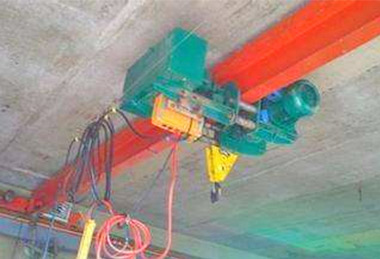

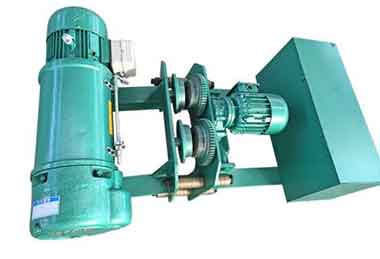

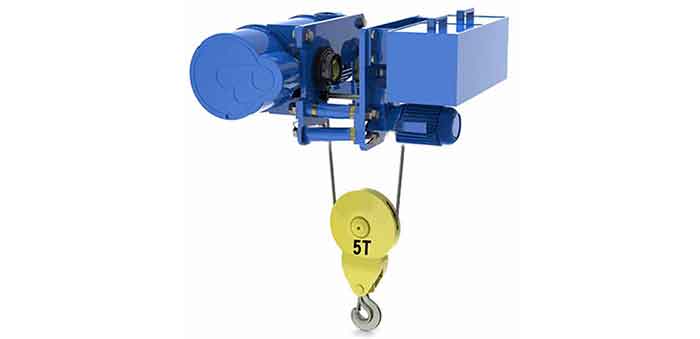

Low headroom electric wire rope hoist design

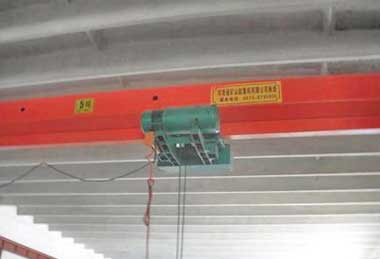

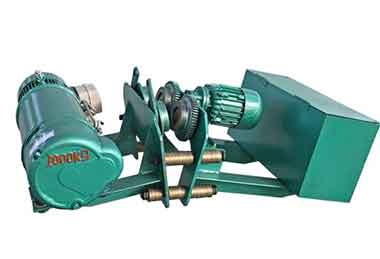

Low clearance electric wire rope hoist design

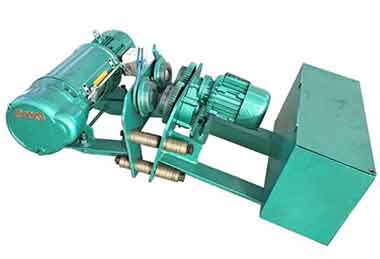

Low profile electric wire rope hoist design
Application of wire rope low headroom electric hoists
The wire rope low headroom hoists can be applied to various types of single girder overhead travelling cranes or suspended H beam & I Beams, either straight or curved, for general material handling vertically and horizontally. Due to low headroom & low profile headroom hoist design, the electric wire rope hoists can offer a larger lifting height compared with the CD/ MD wire rope hoists with same tonnages. When installed on H beam or I beam, the low headroom hoists take super low overhead headroom or clearance increasing the lifting height significantly, which is an outstanding overhead crane hoist solution to improve working productivity and efficiency.
The wire rope low headroom hoists are usually used in the working environment with working temperature -25℃-+40℃，humidity ≤85%，Altitudeunder 1000m, without any hazardous explosive or flammable gas or substances, or corrosive mediums, etc. And also the standard low headroom wire rope hoist can not be used for loading & unloading hot, explosive, & other risky objects or items, which need custom designed hoists, such as explosion proof hoists, or metallurgical use hot metal or ladle handling wire rope hoists, contact us to get more information.

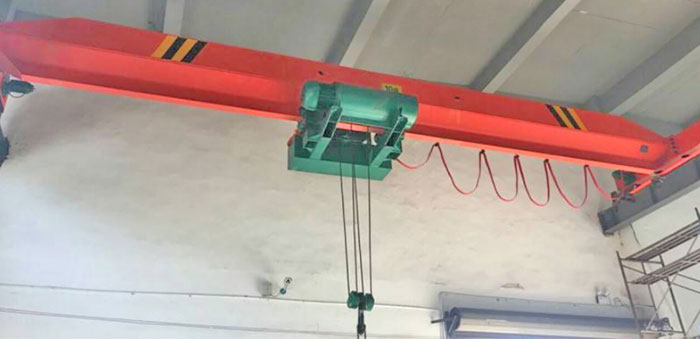

Single girder hoist crane
Single girder hoist crane

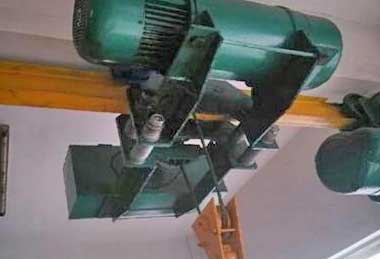

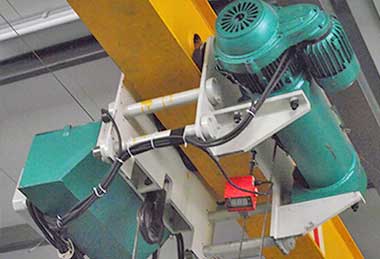

H beam low headroom hoist crane
H beam low headroom hoist crane
Advantages & Features
With low headroom & low profile hoist design, the electric wire rope hoists will be an excellent and economical hoisting equipment for workshops with limited working space or with capacity of 32 ton and lifting height up to 60 meters. The general features and advantages of the low headroom electric hoists will be presented for your reference. More details, please contact us.
- Best clearance height-With ultra low profile design, the specialized wire rope hoistcan increase the lifting height of 200 ~ 500mm, comparing with the basic CD / MD rope hoist
- Reliable wheel driven system - Wheel on both sidesare driven by transmission torque via a hexagonal steel torque with higher reliability and also is beneficial to the installation and regulation of the running parts.
- Versatile design, fixed & travelling hoist -The hoist cover is a welded rectangular structure, surrounded by the mounting bolt holes, which can be modified into thefixed or traveling electric hoist,offering more versatility for your applications and future needs.
- Compact designedcounterweightbox - The box of counterweight can be filled with various steel scraps, stones,or others, which will save the steel and reduce dimensions comparing with the ordinary counterweight hoist.
- Simple design, easy operation -the entire structure of the low headroom hoist is easy to disassemble, install, easy to maintenance
- Various options- The low headroom hoists can be customized with many options for your selection, such assingle and double lifting speed or variable frequency step-less speed control, remote control or pendant control, various protection devices , such as , overload protection, motor overheat protection and other, etc.
Low Headroom Wire Rope Hoist FAQs
Find answers to the most frequently asked questions about low headroom wire rope hoists, including capacities, lifting heights, speed, applications, and industrial use cases.
What is a low headroom wire rope hoist and how is it different from a standard hoist?
A low headroom wire rope hoist is an electric hoist designed for workshops with limited overhead space, providing greater lifting height in a compact design.
- Built on the CD/MD hoist platform with reduced clearance requirements.
- Ideal for retrofitting existing facilities or new buildings with low ceilings.
- Saves construction costs while maximizing usable workspace.
What lifting capacities and heights can low headroom hoists handle?
Low headroom hoists typically lift loads from 1 ton up to 32 tons, with lifting heights from 6 meters to 60 meters depending on customization.
- Common capacities: 3 ton, 5 ton, 10 ton, 15 ton, 20 ton, and 32 ton.
- Height can be customized to match crane or workshop requirements.
- Suitable for single girder cranes, H/I beams, and monorails.
What lifting speeds are available, and can they be customized?
Lifting speeds range from 0.8 m/min to 8 m/min with options for single or dual speed operation.
- Variable frequency step-less speed control is available.
- Double-speed operation allows fast lifting for light loads, slow lifting for heavy loads.
- Speeds can be adjusted to match production line or workshop layout requirements.
Which cranes or structures can these hoists be installed on?
They can be mounted on single girder cranes, H beams, I beams, and straight or curved monorails.
- Supports both fixed and traveling hoist configurations.
- Works efficiently in low clearance workshops due to low profile design.
- Compatible with new constructions and retrofitted existing cranes.
What control and power supply options are available?
Standard supply is 380V 50Hz, with options for pendant or wireless remote control.
- Safe operation in tight or elevated spaces.
- Remote control improves workflow efficiency.
- Optional overload protection and motor overheat sensors.
What are the ideal operating conditions?
Suitable for -25℃ to +40℃, humidity ≤85%, altitude below 1000m.
- Not for explosive, flammable, or corrosive environments without customization.
- Standard hoists handle steel sheets, machinery parts, pallets, etc.
- Custom versions available for metallurgical, high-temperature, or hazardous applications.
How does a low headroom hoist increase lifting height?
The ultra-low profile design increases lifting height by 200–500 mm compared to standard CD/MD hoists.
- Optimized counterweight box and wheel-driven system.
- Compact structure reduces blind spots and improves maneuverability.
- More efficient vertical material handling without increasing building height.
Why are low headroom hoists cost-effective?
They reduce construction costs while maximizing lifting efficiency and workshop space.
- Compact design reduces required crane runway height.
- Optional speed control improves productivity.
- Versatile installation allows future reconfiguration without major modifications.
Can they handle heavy or specialized industrial loads safely?
Yes, they safely handle up to 32 tons, with custom designs for hot, explosive, or delicate materials.
- Suitable for steel fabrication, warehouses, assembly lines.
- Optional overload sensors, limit switches, and thermal monitoring.
- Custom designs exist for metallurgical or high-temperature material handling.
