Portable Gantry Crane for Sale, Custom 6 Ton, 6. 5 Ton Gantry Crane
6 ton portable gantry crane & movable gantry crane for sale. Contact us to get your custom 6 ton gantry crane at cost-effective crane price. Check now.
| Crane Type | 6–6.5 ton portable/mobile gantry crane with adjustable or fixed steel frame; electric chain or wire rope hoist; manual or electric trolley; ISO A3–A5 / FEM 1Am–3M duty class; 380/400/415V, 50Hz, 3Ph for electric systems; |
| Crane Capacity | 6–6.5 ton rated lifting capacity; customized according to load weight, wheel loads, mobility requirements, and operating conditions. |
| Span Length | Typically 3–8 m span; customized according to load distribution, site access, mobility, and required working area. |
| Lifting Height | Typically 3–6 m; adjustable or fixed lifting height available according to application and available headroom. |
| Coverage Area Type | Mobile or localized rectangular coverage within the gantry frame; workshops, machine areas, assembly stations, maintenance areas, warehouses, loading zones, and temporary lifting points. |
| Application | Equipment installation, machinery maintenance, workshop lifting, machine loading and unloading, assembly, warehouse handling, repair operations, and temporary lifting applications. |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Customized 6–6.5 ton capacity, span, lifting height, adjustable or fixed frame, caster/wheel arrangement, electric chain or wire rope hoist, manual/electric trolley, pendant or radio remote control, and application-specific lifting attachments. |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China

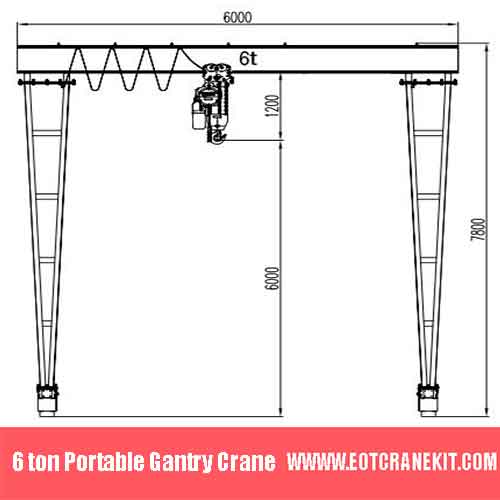

Category: Portable Gantry Crane Drawings
Tags: 6ton
Your Trusted Overhead Gantry Crane Manufacturer & Supplier
6 Ton Portable Gantry Crane for Sale
Custom 6 Ton, 6. 5 Ton Portable Gantry Crane
6 ton portable gantry crane & movable gantry crane for sale. Contact us to get your custom 6 ton gantry crane at cost-effective crane price. Check now.
Yuantai Cranes
Overhead Crane Manufacturer with CE, ISO, SGS, CNEX Certificates.
- Main Specifications - Capacity: 0.5–550 tons | Span: up to 40m | Speed: 0.8–12 m/min | Duty: A3–A7 | Power: 380–690V, 50/60Hz | Control: pendant/remote/cabin
- Full engineering: FEA/PLC/VFD + in-house build + global delivery + on-site support, for workshops, factories, EPC contractors, industrial projects, etc.
- Support: design, manufacturing, testing, service – end-to-end, customized lifting solutions worldwide.
