How to Prepare Rebar Mill Crane Specifications for Steel Plant EPC Tender Documents

Key Takeaway: A Rebar Mill Crane Specification Must Match the Whole Steel Production Process

A crane specification for a rebar mill EPC project is not only a list of lifting capacity and dimensions. It is a technical document that connects steel production process, factory layout, material handling requirements, building structure, electrical system, and future maintenance work.

Many EPC contractors face the same situation. The rolling mill equipment is selected first. The crane comes later. Then problems appear.

• The crane cannot reach some maintenance areas.
• The runway beam needs reinforcement after construction.
• The lifting height is too low for equipment replacement.
• The selected crane duty class cannot handle continuous operation.
• The electrical system does not match the plant power supply.

A well-prepared rebar mill crane specification should be completed during the EPC engineering stage. The main information should include mechanical data, electrical requirements, installation conditions, working environment, and safety requirements.

The goal is simple: the crane should fit the factory before it arrives at the site.

Role of Overhead Cranes in a Rebar Mill Production Line

A rebar mill is a continuous steel production system. Steel billets enter the plant. They move through raw material storage, reheating furnace, rolling mill, cooling bed, finishing area, and finished product storage.

During this process, overhead cranes support daily material handling and maintenance work.

Mechanical Data Required for Rebar Mill Overhead Crane Design

Mechanical data defines the lifting performance, structural design, and service capability of a crane. For an EPC steel plant project, the crane specification should be prepared based on actual production requirements, maintenance scenarios, and future operating conditions.

Before finalizing the crane technical specification, EPC engineers should define the following mechanical design inputs:

Crane Capacity Selection

Crane capacity is usually the first item defined in the EPC technical specification. It represents the maximum safe lifting load of the crane under designed operating conditions.

However, selecting crane capacity only according to daily production material is a common mistake. For rebar mills, engineers should evaluate both production handling loads and future maintenance loads throughout the plant lifecycle.

Typical crane capacity ranges in rebar mills depend on the application area:

A rolling mill may normally handle steel billets and rebar bundles during daily operation. However, after several years of operation, major components may require replacement, including:

• Main drive motors
• Gearboxes
• Rolling mill stands
• Roll assemblies
• Hydraulic cylinders
• Cooling system components

Typical maintenance lifting loads may be significantly higher than normal production loads. For example:

The crane capacity calculation should consider the total suspended load, including:

• Hook block weight (normally 5%-15% of rated capacity depending on crane design)
• Magnet weight
• Coil clamp weight
• Lifting beam weight
• Special lifting tools
• Maintenance lifting attachments

For example, a crane designed for 20 Ton equipment lifting may require a higher rated capacity if the lifting beam and attachments add several tons of additional suspended weight.

A reliable EPC specification should define the maximum lifting scenario, not only the normal production condition.

Crane Span and Factory Layout Coordination

The crane span is the center distance between the two runway rails. It determines the effective working coverage inside the workshop and directly affects material flow and maintenance accessibility.

Typical overhead crane spans in rebar production buildings are:

For rebar production plants, crane span selection should be coordinated with:

• Rolling mill equipment arrangement
• Billet storage area
• Finishing and bundling area
• Maintenance space
• Material transportation route

During EPC design, engineers should verify:

• Building column spacing (commonly 6-12 m depending on building design)
• Runway beam location
• Hook approach distance
• Side clearance
• Maximum equipment maintenance position

For example, if the crane span cannot cover the rolling mill maintenance area, additional mobile lifting equipment may be required. This increases maintenance time, equipment rental cost, and operational complexity.

Lifting Height Requirements

Lifting height defines the maximum vertical distance between the lowest hook position and the highest lifting position.

Typical lifting height requirements for rebar mill cranes include:

The required lifting height should consider:

• Workshop building height
• Equipment installation height
• Motor and gearbox replacement requirements
• Hook block dimensions
• Safety clearance distance

For rolling mill maintenance applications, the lifting height must allow engineers to:

• Remove old components from equipment foundations
• Lift components above surrounding machines
• Move loads safely to maintenance areas
• Install replacement equipment accurately

Duty Class Selection for Steel Plant Cranes

Duty classification is one of the most important parameters for steel plant overhead crane design. It defines how frequently the crane operates, the number of working cycles, and the fatigue requirements of mechanical and structural components.

Two cranes with the same lifting capacity may require completely different designs.

For example, a 20-ton warehouse crane operating several times per day is different from a 20-ton billet handling crane operating every production shift.

Typical operating conditions:

Duty class affects:

• Main girder fatigue design
• Motor selection and service factor
• Gearbox service life
• Brake system reliability
• Wheel and rail loading
• Electrical component durability

Selecting the correct duty class helps prevent premature component failure and reduces unexpected production downtime.

Yuantai Cranes evaluates crane capacity, span, lifting height, and duty classification based on actual steel plant operation requirements. This approach helps EPC contractors select overhead cranes that can support both daily production and long-term maintenance needs.

Information Checklist for EPC Crane Tender Documents

A complete crane technical specification for an EPC project should provide sufficient engineering information for crane manufacturers to design, manufacture, and supply the correct lifting solution.

Missing technical data during the tender stage may cause problems during detailed engineering, such as crane redesign, building structure modification, electrical mismatch, or commissioning delays.

Mechanical Information

Mechanical information defines the crane configuration, lifting performance, and structural requirements.

Electrical Information

Electrical information ensures the crane system matches the factory power network and operating requirements.

Installation Information

Installation requirements should be confirmed before crane manufacturing because the crane system is directly connected with the building structure and factory utilities.

Recommended EPC Tender Preparation Sequence

1. Define lifting applications and material flow requirements
2. Confirm crane capacity, span, lifting height, and duty class
3. Collect electrical power system information
4. Provide crane load data to building structure engineers
5. Confirm runway, rail, and power supply arrangement
6. Complete crane manufacturing, installation, testing, and commissioning

Yuantai Cranes supports EPC contractors by providing crane technical specifications, general arrangement drawings, wheel load information, and engineering data required for steel plant crane projects.

Common Mistakes in Steel Plant Crane Selection

Steel plant cranes are long-term production assets. A mistake made during the EPC design stage may affect daily operation, maintenance efficiency, and future expansion. The following are common crane selection mistakes found in steel plant projects.

Mistake 1: Choosing Crane Capacity Only From Production Data

Some projects select crane capacity only based on normal production materials, such as steel billets, rebar bundles, or finished products.

However, steel plants require cranes not only for production handling but also for equipment maintenance throughout the plant lifecycle.

A crane designed for a rebar mill should consider both:

• Normal production lifting load
• Maximum maintenance lifting load
• Lifting attachment weight
• Future equipment replacement requirements

For example, a rolling mill may normally handle 5-10 ton material loads during production. However, replacement of a main motor, gearbox, or rolling stand may require lifting 15-30 tons or more depending on equipment design.

The total crane load calculation should include:

The correct approach is to select crane capacity based on the maximum expected lifting scenario, not only current production conditions.

Mistake 2: Ignoring Crane Duty Classification

Crane capacity alone does not define crane performance. Duty classification determines how frequently the crane operates, how many lifting cycles it performs, and how much fatigue load the structure experiences.

A 20-ton crane in a warehouse and a 20-ton billet handling crane in a steel plant may have completely different designs.

Duty classification affects:

• Main girder fatigue life
• Wheel and rail loading
• Motor service factor
• Gearbox lifetime
• Brake system design
• Electrical component selection

Selecting a lower duty class may reduce initial investment, but it can increase maintenance frequency and unplanned downtime during operation.

Mistake 3: Confirming Building Design Before Crane Data

This is a common coordination problem in EPC steel plant projects.

The workshop structure is sometimes designed before the final crane technical data is confirmed. Later, when the crane supplier provides actual wheel loads and runway requirements, the building structure may not meet the crane requirements.

Important crane data required for building design includes:

The recommended EPC design sequence is:

1. Define crane application requirements
2. Confirm crane capacity, span, duty class, and operating conditions
3. Receive crane general arrangement drawing and wheel load data
4. Design runway beams and supporting structures
5. Finalize workshop steel structure
6. Install and commission crane system

Early coordination between the EPC contractor, building designer, and crane manufacturer helps avoid structural modifications, schedule delays, and additional project costs.

Practical Checklist Before Ordering a Rebar Mill Crane

Before purchasing an overhead crane for a steel factory, EPC contractors and plant owners should confirm the following technical information. Providing accurate project data at the early stage helps avoid crane redesign, building modifications, and commissioning problems.

Load Requirements

The crane capacity should be based on the maximum expected lifting condition, including production handling and future maintenance requirements.

The selected crane capacity should include all suspended loads, not only the production material weight.

Layout Requirements

The crane layout must match the factory building, production equipment arrangement, and maintenance access requirements.

For example, a rolling mill workshop may require a crane span of approximately 25-35 m to cover the production line and maintenance area. Insufficient hook coverage may require additional mobile lifting equipment during future maintenance.

Operation Requirements

Operating conditions determine crane mechanical design, component selection, and service life.

For a rebar mill operating continuously, the crane design should consider frequent starts and stops, repeated lifting cycles, and long-term fatigue performance.

Engineering Requirements

The crane supplier and EPC contractor must coordinate building and electrical interfaces before manufacturing.

A complete technical checklist allows EPC contractors, building designers, and crane manufacturers to define the correct crane solution before project execution.

Yuantai Cranes provides engineering support for rebar mill and steel plant crane projects, including crane selection, technical specification preparation, runway data coordination, and customized overhead crane solutions.

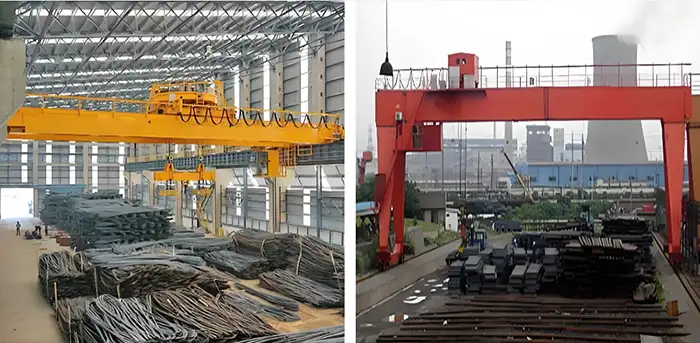

Videos of Steel Rebar Handling

FAQ: Rebar Mill Crane Specification for EPC Projects

1. What is included in a rebar mill crane specification?

A rebar mill crane specification should define all technical requirements required for engineering, manufacturing, installation, and commissioning. It normally includes mechanical data, electrical requirements, structural interface requirements, safety devices, and operating conditions.

For EPC steel plant projects, the specification usually includes:

• Crane capacity and lifting purpose
• Crane type and configuration
• Span and lifting height
• Working duty classification
• Lifting and traveling speed
• Power supply requirements
• Control system
• Runway beam and wheel load data
• Environmental conditions

For example, Yuantai Cranes supplied overhead crane solutions for steel-related industries with specifications such as:

A complete specification allows EPC contractors, crane manufacturers, and building designers to coordinate technical requirements before project execution.

2. How do EPC contractors select overhead cranes for steel plants?

EPC contractors should select steel plant cranes based on the complete production process rather than only lifting capacity.

The main evaluation factors include:

• Material flow between production areas
• Maximum production and maintenance loads
• Crane working frequency
• Workshop layout and runway conditions
• Operating environment
• Future expansion requirements

For example, a rebar mill may require different cranes for different areas:

Experienced crane suppliers such as Yuantai Cranes can participate during the EPC engineering stage to help define suitable crane specifications according to actual plant operation requirements.

3. What type of crane is used in a rebar mill?

A modern rebar mill normally requires different overhead cranes for different material handling tasks.

Common crane applications include:

• Billet Handling Overhead Crane: Used for moving steel billets from storage areas to furnace charging systems. These cranes usually require high duty classification because of frequent operation.
• Rolling Mill Maintenance Crane: Used for lifting motors, gearboxes, roll assemblies, and hydraulic equipment during maintenance.
• Workshop EOT Crane: Used for general maintenance and spare part handling.
• Finished Product Handling Crane: Used for lifting and transporting bundled rebar products in storage and dispatch areas.

The crane configuration depends on the material weight, lifting frequency, working environment, and required positioning accuracy.

4. Why is duty class important for steel mill cranes?

Duty class is critical because steel plant cranes often operate under repeated loading conditions with high production frequency.

Two cranes with the same lifting capacity may have completely different service lives depending on their duty classification.

For example:

Duty classification affects:

• Main girder fatigue life
• Motor and gearbox selection
• Brake system reliability
• Wheel loading
• Maintenance frequency

Selecting the correct duty class helps ensure reliable crane operation throughout the steel plant lifecycle.

5. When should crane suppliers join an EPC project?

Crane suppliers should be involved during the engineering design stage, before finalizing building structures and equipment installation.

Early involvement helps EPC contractors confirm:

• Crane capacity and configuration
• Runway beam requirements
• Maximum wheel loads
• Power supply arrangement
• Maintenance access requirements

For example, before designing a steel workshop structure, the EPC contractor should obtain crane technical data including:

Yuantai Cranes works with EPC contractors during the engineering phase to provide crane technical data, general arrangement drawings, and customized lifting solutions for steel plant applications.

Conclusion: A Good Rebar Mill Crane Specification Starts With Factory Planning

A successful EPC steel plant project needs more than a crane supplier. It needs correct engineering coordination.

The rebar mill overhead crane should be selected based on production process, material flow, equipment maintenance, factory structure, and electrical system.

The most important step is preparing the crane specification early. When capacity, span, lifting height, duty class, and installation requirements are clearly defined, the crane can integrate smoothly into the rebar production line and support long-term plant operation.

Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
