Open winch & electric winch trolley for double girder cranes
Open winch & electric crane winch trolley for Chinese type heavy duty double girder cranes with capacity 5 ton -500 ton, powerful, reliable & stable. Electric crane winch for sale.
| Crane Type | Open Winch / Electric Winch Trolley for Double Girder Overhead Cranes, for heavy-duty industrial lifting with high lifting capacity, robust open-winch construction, multi-part reeving, and customizable hook and trolley configurations. |
| Crane Capacity | Typically 10–550 Ton; customized according to load weight, crane structure, and lifting requirements. |
| Span Length | Trolley Gauge -Typically 1.5–6 m; customized according to the double girder crane rail arrangement and wheel loading. |
| Lifting Height | Typically 6–30 m; customized according to building height and required lifting clearance. |
| Coverage Area Type | Linear lifting coverage along double girder bridge crane runways, suitable for production bays, steel handling areas, assembly zones, maintenance areas, storage facilities, and heavy-load work areas. |
| Application | Heavy-duty lifting, steel mills, power plants, foundries, shipyards, machinery plants, construction projects, warehouses, and large industrial workshops. |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Customized lifting capacity, lifting height, trolley gauge, open winch configuration, number of reeving falls, hook block, drum size, motor and gearbox, trolley frame, control method, duty class, power supply, and safety devices. |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Crane Kit Parts
Tags: cranespare,craneparts,heavylifting
Your Trusted Heavy Duty Open Winch Crane Manufacturer & Supplier
Open Winch Crane Kit 5 to 100 Ton for Sale
Affordable Heavy Duty Winch Trolley for Double Girder Cranes
Open Winch & Electric Crane Winch Trolley for Chinese Type Double Girder Cranes
Build up open winch and electric winch trolleys are adopted on double girder cranes as the lifting system for handling heavy loads with capacity from 5 ton 500 ton. The electric crane winch and open winch cranes are widely used in various types of industrial applications. The build in open winches are very flexible with various possible combinations of individual sub-assemblies of different types to meet diverse individual requirements and application conditions.
Main parameters of the electric open winch for cranes
Designed for heavy loads handling , the electric open winches are fabricated with process design to meet the specific demands of applications and requirements of clients. For process cranes, particularly fabricated motor and reducers are adopted as the lifting system, with lifting capacity up to 500 tons and more. The basin specifications of electric open winch are as following for your reference.
Open winch for cranes, lifting systems of double girder cranes
Main parameters of open winch
- Load capacity of crane open winch: 5 - 500t
- Classification of crane open winchM3-M8
- Hoist output of crane open winch 20 - 140 kW
- 4/2, 8/2, 12/2 rope reeving arrangements
- Crab frame of welded steel construction with optimum weight
- Travel wheels largely wear-free
- Free consultation on open winches for process cranes are available.
These types of open winch and electric crane winch trolley are frequently adopted on the Chinese traditional heavy duty double girder cranes with capacity from 5 ton to 500 ton,with the features of safe, flexible, powerful, reliable & stable.Contact us to get more information on the build up electric crane winches.

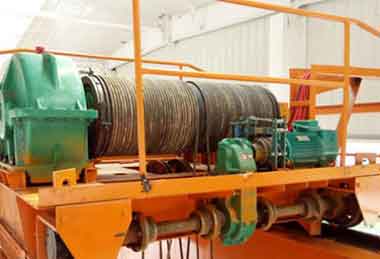

Chinese Style electric winch trolley for overhead travelling crane and gantry crane with CE certificate

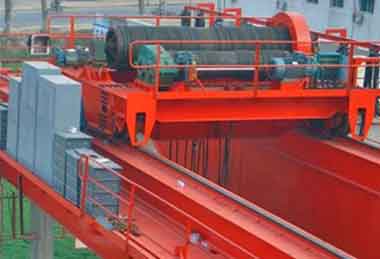

Chinese Style electric winch trolley for overhead bridge crane and gantry crane with CE certificate

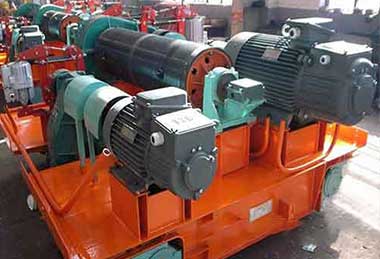

Chinese Style electric winch trolley for overhead crane and gantry crane with CE certificate
Features & advantages of crane open winch trolley
The open winch trolley are mainly consisted of the motor gearbox, hydraulic brake, drum, hook, sheaves, coupling, brake drum etc. The features of the electric crane winches are as following:
- Individualized crane winch- The open winch can be processed with increased lifting capacity, higher lifting speeds,or increased motor size, etc., to meet your industrial crane requirements and applications.
- Vertical lifting - Standard vertical lifting to , prevent lateral displacement of crane hook during the hoisting operation.
- Trolley Frame - The trolley frame of open winch is made of a rigid box girder structure which reduces the weight of the overall winch trolley and lower the wheel load. High strength winch trolley frame are connected by bolts with high strength.
- Wire Rope Drum -Rolled by steel plate and machined with an optimized groove profile, the wire Rope Drum is rigid and long life.
- Rope Sheave Assembly -Rope sheaves are all hardened and lubricated and the reeving arrangements enable the vertical movement of wire rope to extend the serving life.
- Wire Rope -High quality rope with flexible steel core and non-rotation resistance to ensure a long working life.
- Limit Switch -Optional overload limit, Multifunctional travel limits with high precise sensors, and other protection devices to ensure crane winch safety.
- Easy maintenance - Easy accessibility makes the maintenance of the different parts and components convenient and simple.

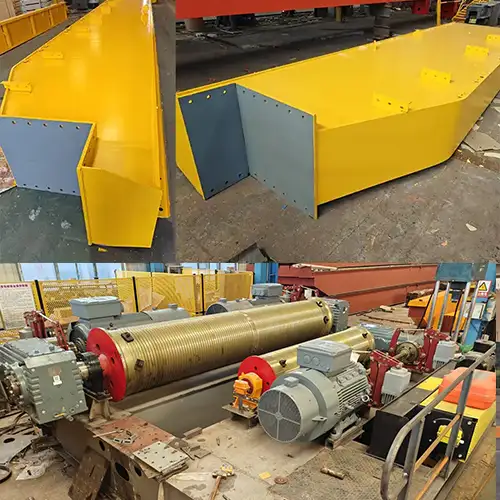

Overview of customized heavy duty winch trolley for double girder crane for heavy and critical load or object handling for industrial use
Gear box / Reducer of builtup open winch trolley
Brake of open winch trolley

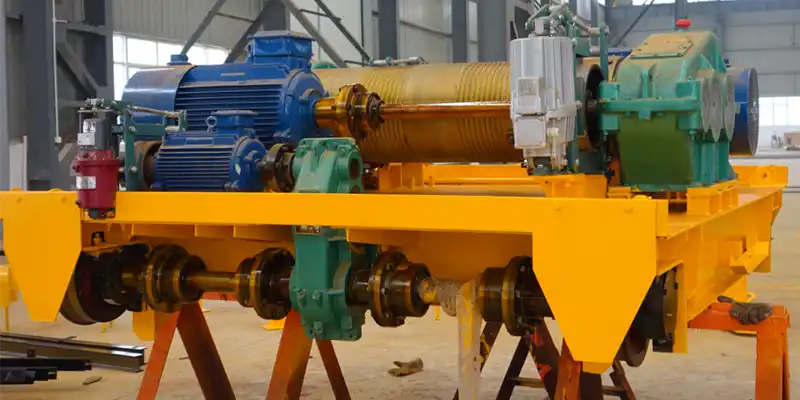

Drive unit of open winch trolley, affordable and durable heavy lifting system for double girder crane
Usage & applications of overhead travelling open winch cranes
Designed for heavy loads handling , the electric open winches are fabricated with process design to meet the specific demands of applications and requirements of clients.The open winch and electric crane winch trolley are frequently adopted on process cranes for heavy load lifting .
According to user requirements, the open winch trolley can be adopted on various types of double girder cranes, equipped with various types of under-the-hook devices for different types of material handling,with capacity from 5 ton to 500 ton, and featured as safe, flexible, powerful, reliable & stable.
15 ton overhead crane double girder design with open winch trolley
Below-the-hook devices for process open winch crane
The processed open winches can be used on various types of double girder cranes, equipped with different under-the-hook devices, and the open winch cranes are can be used for various of heavy duty material handling and applications with high safety, reliability, stability and efficiency.
The process open winch cranes are widely adopted in various industrial applications such as in steel and metal processing, paper-making , power energy industry, petrochemical, and metallurgical industry, and others, etc.
- Spreader beamsfor electric winch crane
- Lifting beam for electric winch crane
- Ladle hookfor electric winch crane
- Lifting tongfor electric winch crane
- Crane C hookfor electric winch crane
- Crane grab bucketfor electric winch crane
- Crane electromagneticsfor electric winch crane
- Slab lifting devicesfor electric winch crane
- Sheet lifter & plate lifterfor electric winch crane
- Coil lifterfor electric winch crane
Tailored open winch, cost-effective process open winch crane solution
Winch open crabs or crane open winch trolley are configured and processed individually from dependable system components that also satisfy the most insistent quality prerequisites. Designed for heavy loads handling , the electric open winches are fabricated with process design to meet the specific demands of applications and requirements of clients with capacity from 5 ton to 500 ton. Send us an inquiry on open winch for your process winch crane. Tailored open winch and best fit process crane makes the best value out of your open winch investment.
