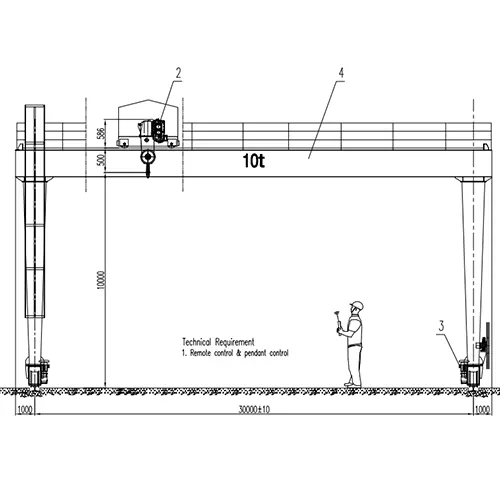

10 Ton Double Girder Gantry Crane Drawing - MGO 10-30 A5
Yuantai Cranes YT-MGO 10t European Double Girder Gantry Crane Drawing (Span 30m, Lifting Height 10m, M5/FEM 2m, VFD Hoist, Cable Reel, P38 Rail)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Gantry Crane
Tags: 10TonOverheadCraneDrawing
Overview: 10 Ton YT-MGO Double Girder Gantry Crane with 30m Large Span for Wide Stockyards
This technical drawing package details a large-span 10-ton European-style double girder gantry crane system (Model: YT-MGO10t-30m A5) engineered by Yuantai Cranes. Designed for material handling across a 70-meter runway length, the system features a 30m span and a 10m lifting height. Built to M5 (FEM 2m) heavy-duty standards, it integrates variable frequency drive (VFD) hoisting, dual pendant and wireless remote control, a motorized cable reel power supply, and end carriages matched to P38 steel rails.
Who is this double girder gantry crane for? Ideal for:
- Large-span storage yards requiring 30m coverage
- Outdoor material handling across wide bays
- Facilities with existing P38 rail infrastructure
- Operations requiring VFD hoisting for precision positioning
- Multi-shift yard operations requiring M5/FEM 2m duty rating
- Projects requiring motorized cable reel power supply
- Wide stockyard operations with 70m runway length
Common search terms for this crane: 10 ton gantry crane, double girder gantry crane, 30m span gantry crane, M5 duty gantry crane, VFD hoisting gantry crane, P38 rail gantry crane, cable reel gantry crane, large span gantry crane, European style gantry crane, YT-MGO gantry crane.
Project & Technical Overview
- Equipment Type: YT-MGO European Double Girder Gantry Crane
- Alternative Names: Large-span gantry crane, wide bay gantry crane, double girder gantry crane
- Model Number: YT-MGO10t-30m A5

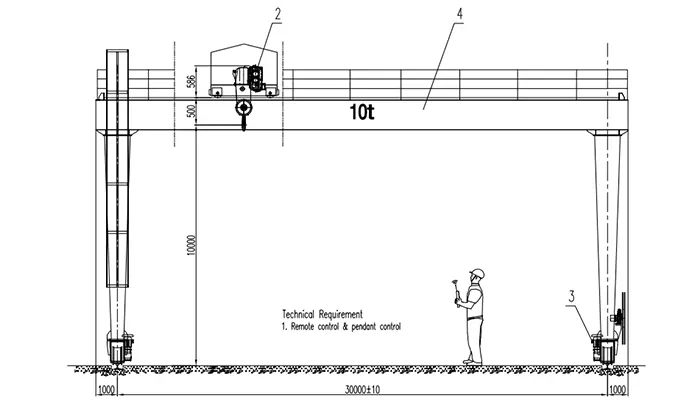

- Drawing PDF: YT-MGO 10t Double Girder Gantry Crane Drawing 30m Span (VFD Hoist, Cable Reel, P38 Rail)
- Crane Manufacturer: Yuantai Cranes
- Duty Class: M5 (FEM 2m) Heavy Duty
- Lifting Capacity: 10.0 t
- Span: 30.0 m
- Lifting Height: 10.0 m
- Designated Rail: P38 Rail Section
- Runway Travel Distance: 70 m
- Control Method: Wireless Remote Control & Independent Pendant Station
- Special Configuration: 30-meter large span yard operations, 70m runway travel, VFD variable frequency hoisting, motorized cable reel power supply, total crane weight of 35.5t, matched to P38 runway rails
- Quantity: 1 unit
Buyer Note: This double girder gantry crane is specifically designed for large-span yard operations with a 30m span. The VFD hoisting provides precision positioning, while the motorized cable reel ensures reliable power transmission along the 70m runway.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | M5 (FEM 2m) Heavy Duty |
| Rated Lifting Capacity | 10.0 t |
| Span (S) | 30.0 m (30000 ± 10 mm) |
| Lifting Height (H) | 10.0 m |
| Designated Runway Rail | P38 Rail Section |
| Trolley Track Gauge | 1.4 m (1400 mm) / Square Bar 40×40 Rail |
| Max. Wheel Load | Gantry Travel: 163.5 kN / Trolley Travel: 48.8 kN |
| Main Power Supply | 380V / 3P / 50Hz |
| Runway Travel Distance | 70 m |
| Gantry Wheelbase / Overall Base Width | 6000 mm (Wheelbase) / 7000 mm (Overall End Truck) |
| Total Crane Weight | 35.5 t |
| Quantity | 1 unit |
Drive Speeds & Motor Ratings
| Component / Motor Drive | Specification |
|---|---|
| Hoisting Speed | 0.8 ~ 5.0 m/min (Stepless VFD) |
| Hoisting Motor | 9.5 kW |
| Trolley Travel Speed | 2.0 ~ 20.0 m/min |
| Trolley Motors | 2 × 0.75 kW |
| Gantry Travel Speed | 2.0 ~ 20.0 m/min |
| Gantry Motors | 2 × 3.0 kW |
| Control Method | Wireless Remote Control & Independent Pendant Station |
System Weight & Duty Rating
| Component | Weight |
|---|---|
| Total Crane Weight | 35.5 t |
| Working Duty Class | M5 (FEM 2m) |
Technical Requirement
Engineering Notice:
- Large-Span Design: 30m span with European box girder structure engineered for M5 (FEM 2m) heavy-duty rating, minimizing structural deflection.
- VFD Stepless Hoisting: Stepless VFD hoisting (0.8–5.0 m/min) prevents acceleration shocks during precision load placement across the wide 30m span.
- Motorized Cable Reel Power Supply: Ensures reliable power transmission along the 70m runway length.
- Heavy-Duty End Trucks: Heavy-duty 6000mm wheelbase end trucks distribute a maximum wheel load of 163.5 kN on standard P38 rails.
- Dual Control System: Equipped with both wireless remote control and independent pendant station for safe operator positioning.
- The dimensional data and layout drawings provided above serve as general technical references. Large-span gantry crane wheel loads require foundation beam verification.
- For specific ground conditions, extended spans, or custom power feeding systems, Yuantai Cranes provides tailored engineering drawings and structural evaluations.
- All drawing content is protected. Unauthorized copying or manufacturing based on this drawing without prior written permission from Yuantai Cranes is strictly prohibited.
Key Facts About YT-MGO 10t Double Girder Gantry Crane (30m, A5)
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for large-span yard operations.
1. What is this double girder gantry crane and what is it designed for?
This is a YT-MGO 10 Ton Double Girder Gantry Crane with a 30m span and 10m lifting height, designed for large-span yard operations across a 70m runway. It features a double girder design with VFD stepless hoisting, motorized cable reel power supply, and P38 rail compatibility.
Ideal applications: large-span storage yards, wide bay outdoor material handling, facilities with existing P38 rails, and operations requiring VFD hoisting for precision positioning.
Alternative names for this crane: large-span gantry crane, wide bay gantry crane, double girder gantry crane, European style gantry.
2. What does "YT-MGO10t-30m" mean in the model number?
- YT-MGO = Yuantai European-style double girder gantry crane series
- 10t = Single lifting capacity: 10-ton hoist
- 30m = Span (distance between runway rail centers) of 30 meters
The lifting height is 10 meters. The crane features a double girder design with VFD stepless control on hoisting (0.8-5.0 m/min) and travel motions (2-20 m/min).
Duty class: M5 (FEM 2m). Power: 380V / 3P / 50Hz. Runway length: 70 m. Rail: P38.
3. What are the key lifting specifications?
| Rated Lifting Capacity | 10.0 t |
| Span (S) | 30.0 m |
| Lifting Height (H) | 10.0 m |
| Designated Rail | P38 Rail Section |
| Trolley Track Gauge | 1.4 m / Square Bar 40×40 |
| Hoisting Speed | 0.8 ~ 5.0 m/min (Stepless VFD) |
| Trolley Travel Speed | 2.0 ~ 20 m/min |
| Gantry Travel Speed | 2.0 ~ 20 m/min |
| Max. Wheel Load | Gantry: 163.5 kN / Trolley: 48.8 kN |
| Runway Travel Distance | 70 m |
| Gantry Wheelbase | 6000 mm |
| Overall Base Width | 7000 mm |
| Duty Class | M5 (FEM 2m) |
| Total Weight | 35.5 t |
Buyer Tip: If your span or lifting height requirements differ, Yuantai can customize the girder length and lifting height to suit your specific yard layout.
4. What is the duty class M5 / FEM 2m and what does it mean for my application?
The duty class is M5 / FEM 2m, which means:
- Heavy duty cycle — suitable for regular daily use
- Rated for up to 2,000–4,000 hours of operation per year
- Ideal for large-span storage yards and wide bay material handling operations
- Perfectly matched to the demanding nature of regular heavy outdoor lifting across wide spans
What does this mean for you? If your yard operates multiple shifts per day with regular lifting, M5/FEM 2m is the right duty class. For continuous round-the-clock operations, consider M6/FEM 3m or higher.
Duty class comparison: M3 = light duty (occasional use), M4 = medium duty (regular intermittent), M5 = heavy duty (regular daily), M6 = extra heavy duty (continuous), M7 = severe duty (round-the-clock).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 380V / 3-Phase / 50Hz
- Hoisting Motor: 9.5 kW (VFD)
- Trolley Motors: 2 × 0.75 kW
- Gantry Motors: 2 × 3.0 kW
- Main Power: Motorized cable reel supply
Control Modes:
- Wireless remote control — ergonomic operation for flexible positioning
- Independent pendant station — backup wired control with safety voltage
Buyer Note: Pre-configured for 380V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 400V, 415V, 440V, or 60Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for large-span yard operations?
- 10t capacity — handles heavy outdoor loads
- 30m span — covers wide stockyards and large storage areas
- 10m lifting height — practical vertical reach for outdoor material handling
- 70m runway travel — covers extensive storage yards with long travel distance
- VFD stepless hoisting — precision positioning on hoisting motion
- P38 rail compatibility — moderate wheel loads (163.5 kN) reduce civil construction costs
- M5 / FEM 2m rating — suitable for regular daily heavy-duty outdoor use
- Dual control system — wireless remote and pendant backup for flexible operation
- 380V 50Hz compatibility — factory-built for international industrial grids
- Motorized cable reel — continuous power supply for long runway operations
Why buyers choose this model: It offers the perfect combination of wide-span coverage, long-runway travel, VFD precision hoisting, and heavy-duty rating for extensive storage yards where reliable 10-ton lifting with 30m span is essential.
How to Get Your Customized Double Girder Gantry Crane
Large-span double girder gantry cranes optimize storage yard coverage while maintaining structural rigidity across wide bays. We tailor each system to match your site layout.
| Process Step | Details |
|---|---|
| Step 1: Submit Site Parameters | Provide yard length, span width, clear lifting height, and required capacity. |
| Step 2: GA Drawing Preparation | Yuantai engineers prepare a custom General Arrangement (GA) drawing within 24 hours for spatial and foundation verification. |
| Step 3: Technical Fine-Tuning | Refine drive options, cable reel specifications, and rail interface parameters to match operational workflows. |
| Step 4: Manufacturing & Delivery | Equipment is built under strict QA protocols, factory pre-assembled, and dispatched to your project site. |
Need a Customized Drawing & Quote for Your Yard?
Send us your yard dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Double Girder Gantry Crane Solution
Yuantai Cranes provides customized YT-MGO Series of double girder gantry crane solutions for large-span storage yards, wide bay outdoor material handling, and facilities requiring VFD hoisting precision. Each crane is configured according to the required capacity, span, lifting height, runway length, duty class, control requirements, and operating environment.
Typical Technical Specifications:
- Capacity: 1–50 ton (This Model: 10.0 t)
- Span: 5–40 m (This Model: 30.0 m)
- Lifting Height: Customized according to application (This Model: 10.0 m)
- Runway Length: Customized (This Model: 70 m)
- Duty Class: M3–M7 / FEM 1Bm–3m (This Model: M5 / FEM 2m)
- Hoist Type: European Electric Wire Rope Hoist (This Model: Single 10t Hoist, VFD)
- Speeds: VFD stepless control on hoisting and travel motions
- Control Method: Wireless Remote Control & Independent Pendant Station
- Power Supply: 220/380/400/415/440/575V, 50/60Hz, 3Ph (This Model: 380V 50Hz 3P)
- Rail Type: P38 (Designated) or Customized
- Applications: Large-span storage yards, wide bay outdoor material handling, and wide stockyard operations
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete gantry crane projects.
Engineering Support & Yard Adaptability
A 30-meter span provides wide coverage across large stockyards. This technical layout illustrates how Yuantai Cranes balances structural stability, VFD lifting control, and power delivery over a 70m runway.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Precise positioning of heavy loads across a 30m span Requires smooth control to avoid shock loads during precision load placement. | Stepless VFD hoisting (0.8–5.0 m/min) prevents acceleration shocks during precision load placement. | 9.5 kW VFD hoisting motor, 30m span |
| Continuous power feed across a 70m outdoor runway Requires reliable power transmission over long travel distance. | Motorized cable reel ensures reliable power transmission along the travel length. | Motorized cable reel, 70m travel distance |
| Structural stability for heavy wheel loading Requires heavy-duty end trucks for high wheel loads. | Heavy-duty 6000mm wheelbase end trucks distribute a maximum wheel load of 163.5 kN on standard P38 rails. | 163.5 kN max wheel load, P38 rail, 35.5t total weight |
| Dual operation modes for yard efficiency Operators need flexibility between remote and pendant control. | Equipped with both wireless remote control and independent pendant station for safe operator positioning. | Remote control & pendant control, 380V / 3P / 50Hz |
How to Evaluate If This Solution Fits Your Yard
- Civil Foundation Load: Foundation beams must support a maximum wheel load of 163.5 kN using P38 steel rails.
- Power Supply Line: Cable reel requires a dedicated 380V / 3P / 50Hz feed connection point along the 70m runway.
- End Truck Footprint: Gantry end carriages feature a 6000 mm wheelbase and an overall base width of 7000 mm; maintain adequate lateral clearances.
- Overhead Workspace: Ensure clearance for a 10.0m effective hook lift height across the entire 30m span.
- Duty Cycle Check: M5 / FEM 2m is suitable for regular daily multi-shift large-span yard operations.
Unsure If This Layout Fits Your Yard?
Send us your site dimensions (Span, Runway Travel Length, and Required Hook Height). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
