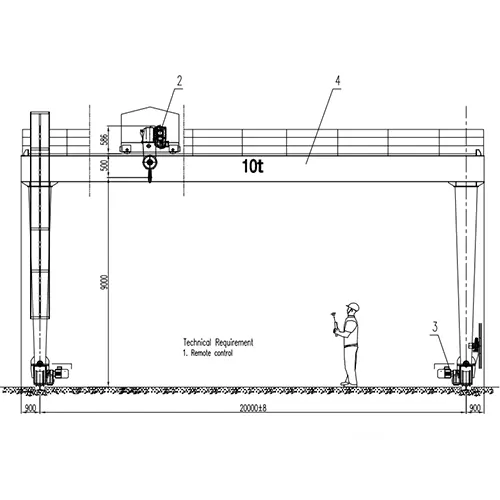

YT-MGO 10t Double Girder Gantry Crane Drawing - MGO10-20 A5
Yuantai Cranes YT-MGO 10t European Double Girder Gantry Crane Drawing (Span 20m, Lifting Height 9m, M5/FEM 2m, Wireless Remote Control, Full VFD Hoisting, P38 Rail)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Gantry Crane
Tags: 10TonGantryCraneDrawing
Overview: 10 Ton YT-MGO Double Girder Gantry Crane for Medium-Span Yard Operations

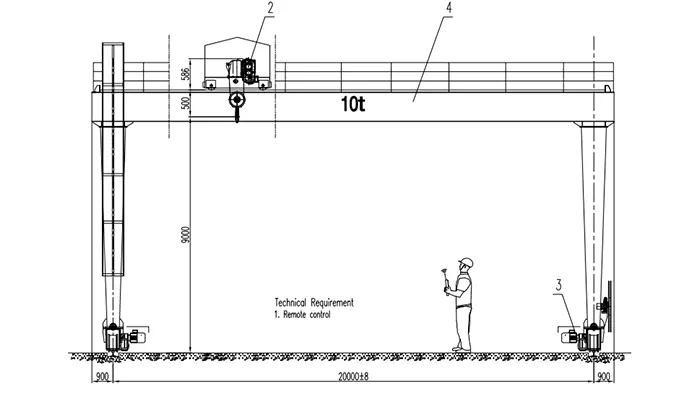

This technical drawing package details a medium-span 10-ton European-style double girder gantry crane system (Model: YT-MGO10t-20m A5) engineered by Yuantai Cranes. Designed for efficient indoor and outdoor material handling, the system features a 20m span and a 9m lifting height. Built to M5 (FEM 2m) heavy-duty standards, it includes an ergonomic wireless remote control, full variable frequency drive (VFD) hoisting, a motorized cable reel power supply, and end trucks matching P38 steel rails.
Who is this double girder gantry crane for? Ideal for:
- Medium-span storage yards and industrial stockyards
- Indoor and outdoor material handling operations
- Facilities with existing P38 rail infrastructure
- Operations requiring wireless remote control for visual clearance
- Multi-shift yard operations requiring M5/FEM 2m duty rating
- Cost-effective runway foundation engineering projects
- Standard 20-meter span applications
Common search terms for this crane: 10 ton gantry crane, double girder gantry crane, 20m span gantry crane, M5 duty gantry crane, wireless remote gantry crane, P38 rail gantry crane, VFD hoisting gantry crane, European style gantry crane, YT-MGO gantry crane, medium-span gantry crane.
Project & Technical Overview
- Equipment Type: YT-MGO European Double Girder Gantry Crane
- Alternative Names: Medium-span gantry crane, double girder gantry crane, wireless remote gantry crane
- Model Number: YT-MGO10t-20m A5
- Drawing PDF: YT-MGO 10t Double Girder Gantry Crane Drawing 20m Span (Wireless Remote, P38 Rail)
- Crane Manufacturer: Yuantai Cranes
- Duty Class: M5 (FEM 2m) Heavy Duty
- Lifting Capacity: 10.0 t
- Span: 20.0 m
- Lifting Height: 9.0 m
- Designated Rail: P38 Rail Section
- Control Method: Wireless Remote Control
- Special Configuration: 20-meter standard span yard operations, stepless VFD variable frequency hoisting, motorized cable reel power supply, total crane weight of 20.2t, matched to P38 runway rails
- Quantity: 1 unit
Buyer Note: This double girder gantry crane is specifically designed for medium-span yard operations with a 20m span. The wireless remote control allows operators to navigate safely away from stacked materials and blind spots, while the P38 rail compatibility reduces civil construction costs.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | M5 (FEM 2m) Heavy Duty |
| Rated Lifting Capacity | 10.0 t |
| Span (S) | 20.0 m (20000 ± 8 mm) |
| Lifting Height (H) | 9.0 m |
| Designated Runway Rail | P38 Rail Section |
| Trolley Track Gauge | 1.6 m (1600 mm) |
| Max. Wheel Load | Gantry Travel: 115.5 kN / Trolley Travel: 39.8 kN |
| Main Power Supply | 380V / 3P / 50Hz |
| Gantry Wheelbase / Overall Base Width | 5000 mm (Wheelbase) / 5900 mm (Overall End Truck) |
| Total Crane Weight | 20.2 t |
| Quantity | 1 unit |
Drive Speeds & Motor Ratings
| Component / Motor Drive | Specification |
|---|---|
| Hoisting Speed | 0.8 ~ 5.0 m/min (Stepless VFD) |
| Hoisting Motor | 9.5 kW |
| Trolley Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Trolley Motors | 2 × 0.55 kW |
| Gantry Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Gantry Motors | 2 × 1.5 kW |
| Control Method | Wireless Remote Control |
System Weight & Duty Rating
| Component | Weight |
|---|---|
| Total Crane Weight | 20.2 t |
| Working Duty Class | M5 (FEM 2m) |
Technical Requirement
Engineering Notice:
- Wireless Remote Control: Ergonomic wireless remote control allows operators to navigate safely away from stacked materials and blind spots for improved visual clearance.
- Full VFD Stepless Control: Variable frequency drives on the 9.5 kW hoisting mechanism (0.8–5.0 m/min) prevent sudden acceleration shocks during heavy lifts.
- Cost-Effective Foundation Engineering: Total dead weight capped at 20.2t with a maximum wheel load of 115.5 kN, matching standard P38 steel rails to reduce civil construction costs.
- Motorized Cable Reel Power Supply: Continuous power feed for yard operations along the runway length.
- The dimensional data and layout drawings provided above serve as general technical references. Gantry crane wheel loads and rail selections require foundation check verification.
- For specific ground conditions, non-standard rail spans, or custom power feeding systems, Yuantai Cranes provides tailored engineering drawings and structural evaluations.
- All drawing content is protected. Unauthorized copying or manufacturing based on this drawing without prior written permission from Yuantai Cranes is strictly prohibited.
Key Facts About YT-MGO 10t Double Girder Gantry Crane (20m, A5)
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for medium-span yard operations.
1. What is this double girder gantry crane and what is it designed for?
This is a YT-MGO 10 Ton Double Girder Gantry Crane with a 20m span and 9m lifting height, designed for medium-span yard operations in industrial stockyards and manufacturing bays. It features a double girder design with full VFD stepless control on hoisting and travel motions, wireless remote control, and P38 rail compatibility.
Ideal applications: medium-span storage yards, indoor and outdoor material handling, facilities with existing P38 rails, and operations requiring wireless remote control for visual clearance.
Alternative names for this crane: medium-span gantry crane, double girder gantry crane, wireless remote gantry crane, European style gantry.
2. What does "YT-MGO10t-20m" mean in the model number?
- YT-MGO = Yuantai European-style double girder gantry crane series
- 10t = Single lifting capacity: 10-ton hoist
- 20m = Span (distance between runway rail centers) of 20 meters
The lifting height is 9 meters. The crane features a double girder design with full VFD stepless control on hoisting (0.8-5.0 m/min) and travel motions (2-20 m/min).
Duty class: M5 (FEM 2m). Power: 380V / 3P / 50Hz. Rail: P38.
3. What are the key lifting specifications?
| Rated Lifting Capacity | 10.0 t |
| Span (S) | 20.0 m |
| Lifting Height (H) | 9.0 m |
| Designated Rail | P38 Rail Section |
| Trolley Track Gauge | 1.6 m |
| Hoisting Speed | 0.8 ~ 5.0 m/min (Stepless VFD) |
| Trolley Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Gantry Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Max. Wheel Load | Gantry: 115.5 kN / Trolley: 39.8 kN |
| Gantry Wheelbase | 5000 mm |
| Overall Base Width | 5900 mm |
| Duty Class | M5 (FEM 2m) |
| Total Weight | 20.2 t |
Buyer Tip: If your span or lifting height requirements differ, Yuantai can customize the girder length and lifting height to suit your specific yard layout.
4. What is the duty class M5 / FEM 2m and what does it mean for my application?
The duty class is M5 / FEM 2m, which means:
- Heavy duty cycle — suitable for regular daily use
- Rated for up to 2,000–4,000 hours of operation per year
- Ideal for medium-span storage yards and industrial material handling operations
- Perfectly matched to the demanding nature of regular heavy outdoor lifting
What does this mean for you? If your yard operates multiple shifts per day with regular lifting, M5/FEM 2m is the right duty class. For continuous round-the-clock operations, consider M6/FEM 3m or higher.
Duty class comparison: M3 = light duty (occasional use), M4 = medium duty (regular intermittent), M5 = heavy duty (regular daily), M6 = extra heavy duty (continuous), M7 = severe duty (round-the-clock).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 380V / 3-Phase / 50Hz
- Hoisting Motor: 9.5 kW (VFD)
- Trolley Motors: 2 × 0.55 kW
- Gantry Motors: 2 × 1.5 kW
- Main Power: Motorized cable reel supply
Control Modes:
- Wireless remote control — ergonomic operation for flexible positioning away from blind spots
Buyer Note: Pre-configured for 380V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 400V, 415V, 440V, or 60Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for medium-span yard operations?
- 10t capacity — handles heavy outdoor loads
- 20m span — versatile coverage for medium-span yards
- 9m lifting height — practical vertical reach for yard operations
- Wireless remote control — improves visual clearance in crowded yards
- Full VFD stepless control — precision positioning on hoisting and travel motions
- P38 rail compatibility — moderate wheel loads (115.5 kN) reduce civil construction costs
- M5 / FEM 2m rating — suitable for regular daily heavy-duty outdoor use
- Cost-effective design — 20.2t total weight optimizes structural efficiency
- 380V 50Hz compatibility — factory-built for international industrial grids
- Motorized cable reel — continuous power supply for yard operations
Why buyers choose this model: It offers the perfect combination of medium-span coverage, wireless remote control flexibility, full VFD precision control, and cost-effective P38 rail compatibility for storage yards and industrial facilities requiring reliable 10-ton lifting with 20m span.
How to Get Your Customized Double Girder Gantry Crane
Medium-span double girder gantry cranes provide optimal coverage and cost efficiency. We tailor each system to match your site dimensions.
| Process Step | Details |
|---|---|
| Step 1: Submit Site Parameters | Provide yard length, span width, clear lifting height, and required capacity. |
| Step 2: GA Drawing Preparation | Yuantai engineers prepare a custom General Arrangement (GA) drawing within 24 hours for spatial and foundation verification. |
| Step 3: Technical Fine-Tuning | Refine anti-sway settings, control systems, and safety features to match your handling workflow. |
| Step 4: Manufacturing & Delivery | Equipment is manufactured under strict QA standards, pre-assembled, and shipped to your project site. |
Need a Customized Drawing & Quote for Your Yard?
Send us your yard dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Double Girder Gantry Crane Solution
Yuantai Cranes provides customized YT-MGO Series of double girder gantry crane solutions for medium-span storage yards, industrial stockyards, and manufacturing bays. Each crane is configured according to the required capacity, span, lifting height, duty class, control requirements, and operating environment.
Typical Technical Specifications:
- Capacity: 1–50 ton (This Model: 10.0 t)
- Span: 5–40 m (This Model: 20.0 m)
- Lifting Height: Customized according to application (This Model: 9.0 m)
- Duty Class: M3–M7 / FEM 1Bm–3m (This Model: M5 / FEM 2m)
- Hoist Type: European Electric Wire Rope Hoist (This Model: Single 10t Hoist, Full VFD)
- Speeds: Full VFD stepless control on all motions
- Control Method: Wireless Remote Control & Pendant Control (Optional)
- Power Supply: 220/380/400/415/440/575V, 50/60Hz, 3Ph (This Model: 380V 50Hz 3P)
- Rail Type: P38 (Designated) or Customized
- Applications: Medium-span storage yards, industrial stockyards, and manufacturing bays
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete gantry crane projects.
Engineering Support & Yard Adaptability
A 20-meter span is one of the most versatile specifications for industrial stockyards and manufacturing bays. This technical layout illustrates how Yuantai Cranes optimizes structural weight, VFD motion control, and wireless operation for maximum handling efficiency.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Line-of-sight visual clearance in crowded yards Operators cannot see load clearly from fixed pendant position. | Ergonomic wireless remote control allows operators to navigate safely away from stacked materials and blind spots. | Control method: Wireless Remote Control |
| Smooth load positioning and anti-sway control Requires smooth control to avoid shock loads during heavy lifts. | Full stepless VFD regulation on hoisting (0.8–5.0 m/min) prevents sudden acceleration shocks during heavy lifts. | 9.5 kW VFD hoisting motor, 2.0–20 m/min travel speeds |
| Cost-effective runway foundation engineering Requires moderate wheel loads to reduce civil construction costs. | Total dead weight capped at 20.2t with a maximum wheel load of 115.5 kN, matching standard P38 steel rails to reduce civil construction costs. | 20.2t total weight, 115.5 kN max wheel load, P38 rail |
| Medium-span yard coverage Needs versatile 20m span for standard industrial yards. | 20m span with 1.6m trolley gauge provides optimal coverage for medium-sized storage yards. | Span: 20m | Trolley Gauge: 1.6m | Lifting Height: 9m |
How to Evaluate If This Solution Fits Your Yard
- Civil Foundation Load: Runway foundation must support a maximum wheel load of 115.5 kN using P38 steel rails.
- Power Supply Line: Motorized cable reel requires a dedicated 380V / 3P / 50Hz industrial power connection along the runway.
- End Truck Clearances: Gantry end trucks feature a 5000 mm wheelbase and an overall width of 5900 mm; maintain a minimum 900 mm lateral side clearance.
- Overhead Workspace: Ensure an unobstructed 9.0m hook lift height and 1.6m trolley gauge clearance across the 20m span.
- Duty Cycle Check: M5 / FEM 2m is suitable for regular daily multi-shift yard operations.
Unsure If This Layout Fits Your Yard?
Send us your site dimensions (Span, Runway Travel Length, and Required Hook Height). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
