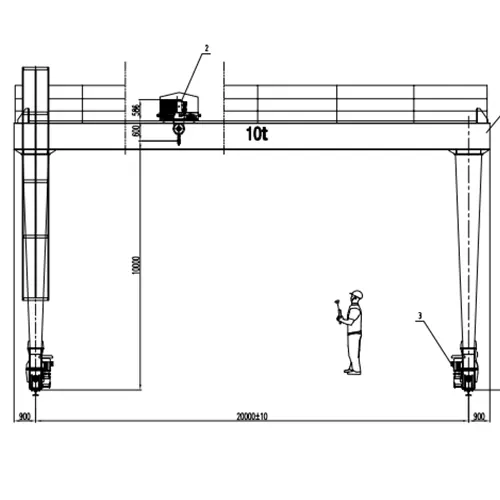

YT-MGO 10t Double Girder Gantry Crane Drawing - MGO 10-20 A5
Yuantai Cranes YT-MGO 10t European Double Girder Gantry Crane Drawing (Span 20m, Lifting Height 10m, M5/FEM 2m, Outdoor VFD, Anemometer, 120m Runway, P38 Rail)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Gantry Crane
Tags: 10TonGantryCraneDrawing
Overview: 10 Ton YT-MGO Outdoor Double Girder Gantry Crane with Anemometer and 120m Runway
This technical drawing package details a 10-ton European-style double girder gantry crane system (Model: YT-MGO10t-20m A5) engineered by Yuantai Cranes for outdoor material handling applications over a 120-meter runway length. The crane features a 20m span, a 10m lifting height, and an overall structure height of 12100mm. Built to M5 (FEM 2m) heavy-duty standards, it is equipped with full variable frequency drives (VFD) across all motions, dual pendant and wireless remote control, an integrated anemometer wind speed safety system, a cable reel power feed, and end carriages matched to P38 steel rails.
Who is this outdoor double girder gantry crane for? Ideal for:
- Outdoor storage yards and stockyards requiring 120m runway
- Facilities requiring 10m hook lift height for tall stacking
- Open-air material handling with wind load monitoring requirements
- Facilities with existing P38 rail infrastructure
- Operations requiring full VFD stepless control on all motions
- Multi-shift outdoor operations requiring M5/FEM 2m duty rating
- Projects requiring integrated anemometer wind safety systems
Common search terms for this crane: 10 ton gantry crane, outdoor gantry crane, double girder gantry crane, 20m span gantry crane, 10m lifting height gantry crane, M5 duty gantry crane, anemometer gantry crane, P38 rail gantry crane, 120m runway gantry crane, European style gantry crane.
Project & Technical Overview
- Equipment Type: YT-MGO European Double Girder Gantry Crane
- Alternative Names: Outdoor gantry crane, wind-monitored gantry crane, tall lift gantry crane
- Model Number: YT-MGO10t-20m A5

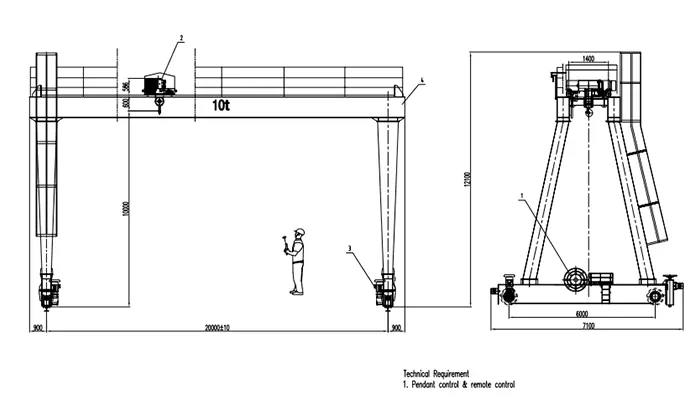

- Drawing PDF: YT-MGO 10t Outdoor Double Girder Gantry Crane Drawing 20m Span (10m Lift, Anemometer, 120m Runway)
- Crane Manufacturer: Yuantai Cranes
- Duty Class: M5 (FEM 2m) Heavy Duty
- Lifting Capacity: 10.0 t
- Span: 20.0 m
- Lifting Height: 10.0 m
- Overall Height: 12100 mm (12.1 m)
- Designated Rail: P38 Rail Section
- Runway Travel Distance: 120 m
- Control Method: Wireless Remote Control & Independent Pendant Station
- Special Configuration: Outdoor stockyard service, 120m long runway travel, integrated anemometer wind monitoring system, full VFD motion control, total dead weight of 21.4t, matched to P38 steel rails
- Quantity: 1 unit
Buyer Note: This outdoor double girder gantry crane is specifically designed for tall stacking operations in open-air environments. The integrated anemometer provides wind speed monitoring for safe operation, while the 10m lifting height accommodates tall outdoor material stacking across the 120m runway.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | M5 (FEM 2m) Heavy Duty |
| Rated Lifting Capacity | 10.0 t |
| Span (S) | 20.0 m (20000 ± 10 mm) |
| Lifting Height (H) | 10.0 m |
| Overall Height | 12100 mm (12.1 m) |
| Designated Runway Rail | P38 Rail Section (Recommended) |
| Trolley Track Gauge | 1.4 m (1400 mm) |
| Max. Wheel Load | Gantry Travel: 128.6 kN / Trolley Travel: 43.4 kN |
| Main Power Supply | 415V / 3P / 50Hz |
| Long Travel Runway Distance | 120 m |
| Gantry Wheelbase / Overall Base Width | 6000 mm (Wheelbase) / 7100 mm (Overall End Truck) |
| Total Crane Weight | 21.4 t |
| Quantity | 1 unit |
Drive Speeds & Motor Ratings
| Component / Motor Drive | Specification |
|---|---|
| Hoisting Speed | 0.8 ~ 5.0 m/min (Stepless VFD) |
| Hoisting Motor | 9.5 kW |
| Trolley Travel Speed | 2.0 ~ 20.0 m/min (Stepless VFD) |
| Trolley Motors | 2 × 0.75 kW |
| Gantry Travel Speed | 2.0 ~ 20.0 m/min (Stepless VFD) |
| Gantry Motors | 2 × 2.2 kW |
| Control Method | Wireless Remote Control & Independent Pendant Station |
| Wind Safety System | Integrated Anemometer |
System Weight & Duty Rating
| Component | Weight |
|---|---|
| Total Crane Weight | 21.4 t |
| Working Duty Class | M5 (FEM 2m) |
Technical Requirement
Engineering Notice:
- High Hook Lift for Outdoor Stacking: Rigid double-girder frame engineered to achieve a 10.0m effective hook height within an overall structure envelope of 12100mm.
- Anemometer Wind Safety System: Equipped with a digital anemometer to issue early wind warnings and interface with drive interlocks during adverse weather.
- Full VFD Stepless Control: Stepless VFD regulation on 2 × 2.2 kW travel motors ensures controlled acceleration across 120m of P38 steel rail.
- Dual Control System: Equipped with both wireless remote control and independent pendant station for safe operator positioning.
- The dimensional data and layout drawings provided above serve as general technical references. Outdoor gantry crane installations require foundation load verification and wind load safety assessments.
- For specific ground conditions, non-standard rail spans, or custom power supply configurations, Yuantai Cranes provides tailored engineering drawings and structural evaluations.
- All drawing content is protected. Unauthorized copying or manufacturing based on this drawing without prior written permission from Yuantai Cranes is strictly prohibited.
Key Facts About YT-MGO 10t Outdoor Double Girder Gantry Crane (20m, A5)
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for outdoor tall stacking operations with wind monitoring.
1. What is this outdoor gantry crane and what is it designed for?
This is a YT-MGO 10 Ton Outdoor Double Girder Gantry Crane with a 20m span and 10m lifting height, designed for tall stacking operations in open-air environments. It features a double girder design with full VFD stepless control on hoisting and travel motions, integrated anemometer wind monitoring, and P38 rail compatibility for 120m runway operations.
Ideal applications: outdoor storage yards, tall stacking operations, open-air material handling with wind monitoring requirements, and facilities with existing P38 rails.
Alternative names for this crane: outdoor gantry crane, wind-monitored gantry crane, tall lift gantry crane, European style gantry.
2. What does "YT-MGO10t-20m" mean in the model number?
- YT-MGO = Yuantai European-style double girder gantry crane series
- 10t = Single lifting capacity: 10-ton hoist
- 20m = Span (distance between runway rail centers) of 20 meters
The lifting height is 10 meters with an overall height of 12100mm. The crane features a double girder design with full VFD stepless control on hoisting (0.8-5.0 m/min) and travel motions (2-20 m/min).
Duty class: M5 (FEM 2m). Power: 415V / 3P / 50Hz. Runway length: 120 m. Rail: P38.
3. What are the key lifting specifications?
| Rated Lifting Capacity | 10.0 t |
| Span (S) | 20.0 m |
| Lifting Height (H) | 10.0 m |
| Overall Height | 12100 mm |
| Designated Rail | P38 Rail Section |
| Trolley Track Gauge | 1.4 m |
| Hoisting Speed | 0.8 ~ 5.0 m/min (Stepless VFD) |
| Trolley Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Gantry Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Max. Wheel Load | Gantry: 128.6 kN / Trolley: 43.4 kN |
| Runway Travel Distance | 120 m |
| Gantry Wheelbase | 6000 mm |
| Overall Base Width | 7100 mm |
| Duty Class | M5 (FEM 2m) |
| Total Weight | 21.4 t |
Buyer Tip: If your span or lifting height requirements differ, Yuantai can customize the girder length and lifting height to suit your specific outdoor yard layout.
4. What is the duty class M5 / FEM 2m and what does it mean for my application?
The duty class is M5 / FEM 2m, which means:
- Heavy duty cycle — suitable for regular daily use
- Rated for up to 2,000–4,000 hours of operation per year
- Ideal for outdoor storage yards and industrial material handling operations
- Perfectly matched to the demanding nature of regular heavy outdoor lifting with tall stacking
What does this mean for you? If your yard operates multiple shifts per day with regular lifting, M5/FEM 2m is the right duty class. For continuous round-the-clock operations, consider M6/FEM 3m or higher.
Duty class comparison: M3 = light duty (occasional use), M4 = medium duty (regular intermittent), M5 = heavy duty (regular daily), M6 = extra heavy duty (continuous), M7 = severe duty (round-the-clock).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 415V / 3-Phase / 50Hz
- Hoisting Motor: 9.5 kW (VFD)
- Trolley Motors: 2 × 0.75 kW
- Gantry Motors: 2 × 2.2 kW
- Main Power: Motorized cable reel supply
Control Modes:
- Wireless remote control — ergonomic operation for flexible positioning
- Independent pendant station — backup wired control with safety voltage
Buyer Note: Pre-configured for 415V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 380V, 400V, 440V, or 60Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for outdoor tall stacking operations with wind monitoring?
- 10t capacity — handles heavy outdoor loads
- 20m span — covers wide outdoor storage yards
- 10m lifting height — accommodates tall outdoor material stacking
- Integrated anemometer — wind speed monitoring for safe outdoor operation
- 120m runway travel — covers extensive outdoor storage yards
- Full VFD stepless control — precision positioning on hoisting and travel motions
- P38 rail compatibility — moderate wheel loads (128.6 kN) reduce civil construction costs
- M5 / FEM 2m rating — suitable for regular daily heavy-duty outdoor use
- Dual control system — wireless remote and pendant backup for flexible operation
- 415V 50Hz compatibility — factory-built for international industrial grids
Why buyers choose this model: It offers the perfect combination of tall stacking capability, wind monitoring safety, long-runway travel, full VFD precision control, and heavy-duty rating for outdoor storage yards where reliable 10-ton lifting with 10m lift height is essential.
How to Get Your Customized Outdoor Double Girder Gantry Crane
Outdoor wide-clearance gantry cranes require precise engineering to balance wind resistance, power transmission over long runways, and wheel load distribution. We customize each system to match your site layout.
| Process Step | Details |
|---|---|
| Step 1: Submit Site Parameters | Provide yard length, span width, clear lifting height, total runway distance, and power supply standards. |
| Step 2: GA Drawing Preparation | Yuantai engineers prepare a custom General Arrangement (GA) drawing within 24 hours for spatial and foundation verification. |
| Step 3: Technical Fine-Tuning | Refine wind protection systems, anti-sway parameters, and power feeding mechanisms based on civil engineering specifications. |
| Step 4: Manufacturing & Delivery | Equipment is built under strict QA protocols, factory pre-assembled, and dispatched to your project site. |
Need a Customized Drawing & Quote for Your Yard?
Send us your yard dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
