Hook design & process: Hoist hook, crane hook block & hook pulley group

Lifting hooks of crane hoists and overhead travelling cranes are one of the most common and vital crane kits. The crane hooks are usually widely used for lifting loads which are suspended on the wire rope of the lifting mechanism with pulley set and other components and some hoist hooks are suspended on hoist chain blocks. Our hoist hook, crane hook block, hook pulley and hook groups can be used for various applications such as factory workshops,steel, waste management,automobile, storage and logistics , metallurgy, mines, petroleum, chemical and ship terminal with high quality and high safety. All of our crane hooks has been undergone 3 times of static load test with loading capacity from 5 tons to 600 tons,etc.

Safety is always the top concern when selecting the hoist hook and crane hook. With tailored hook designs and top class materials, our lifting hooks are produced with high standards and meet your requirements highly.

European style lifting hook - Star crane hooks

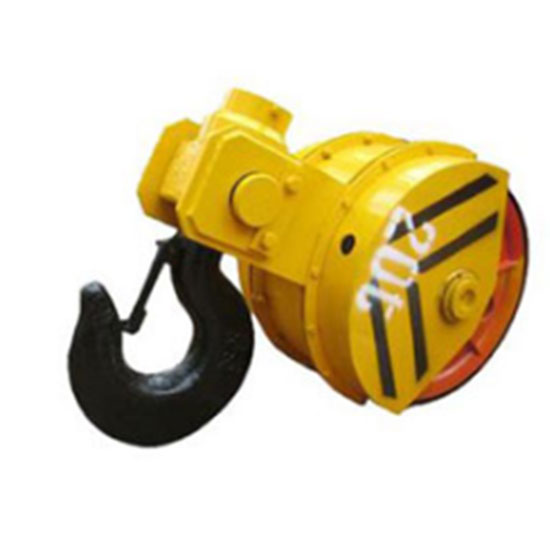

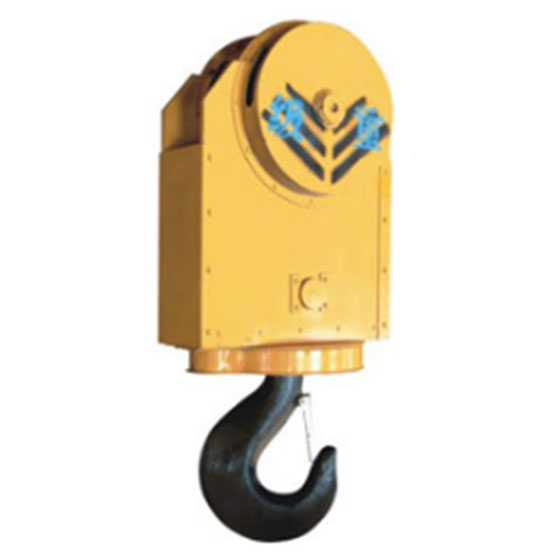

European style FEN standard crane hook blocks

European style FEN standard crane hook blocks

European style FEN standard crane hook blocks

The European style crane hook group is with ergonomic hook design, featured as compact structure, light weight, easy installation, and high safety. The lifting hook is made of alloy steel with heat treating, offering high strength and safety which has under gone proof test with twice working load limit. With compact crane hook design, the European style hook groups are able to provide higher crane hook approaching distance horizontally and vertically and making the best space utilization of the customer's existing factory building. If you need tailored european style hook design, please feel free to contact us to get particular hook design service.

Types of lifting hooks & rigging hooks offering

The lifting hooks and rigging hooks are designed and processed in a variety of styles to meet particular needs to lift load of particular type and size. Based on shapes, processing , operation and other features, the lifting hooks and rigging hooks can be grouped into different types, such as, swivel hook, eye hooks, clevis hook, shank hook , and chain hooks, etc. No matter what types of crane hooks and hoist hooks you needed, we can design and process the hoist hook and crane hook to meet your needs. If you need any lifting hook or rigging hook, please feel free to contact us.

Eye Hooks, Clevis Hooks, & Swivel Hooks

To attached the hook to a crane , hoist or a sling, the lifting hooks can be designed with an eye , clevis or a swivel top which are the most commonly used rigging hooks, that is, the eye hooks, clevis hooks and swivel hooks.

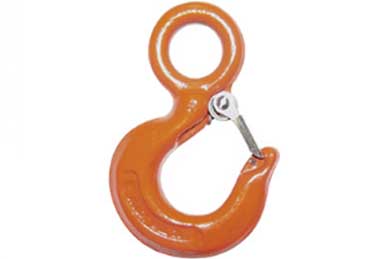

Eye Hooks

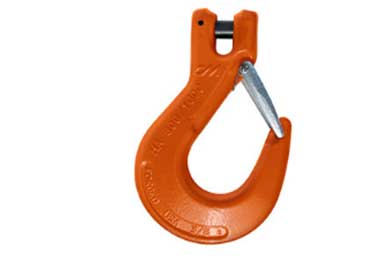

Clevis Hooks

Swivel Hooks

Eye Hooks

Lifting hooks with eye hook design is connected with a sling permanently and is a permanent part of the sling which will be taken out of service entirely if the sling eye hook is bent, cracked or stretched. However, you can move and place the the eye hooks flexibly to connect a lifting position according to your needs.

Clevis Hooks

Clevis hooks is a type of lifting hooks with a "U" shaped clevis top which can be connected to a chain sling easily and quickly by a bolt or pin. With flexible connection design, the clevis hooks is a good alternative to eye hooks which do not need a certified welder to connect the hook to the chain slings and also can be replaced quickly and easily when necessary. Here please bear in mind that proof-testing are needed to all the lifting hooks and slings when come into use. Compared with eye hooks, the clevis hooks are pivoted side to side to help connect the hook to a lifting point without much flexibility.

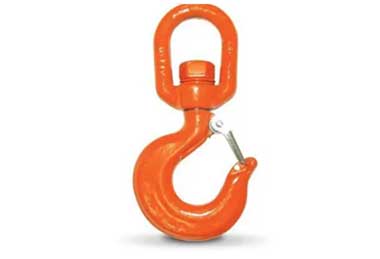

Swivel Hooks

Lifting hooks with a swivel top hook design offers a 360° rotation movement which can be grouped into Positioning swivel hooks and true swivel hooks with bearing.

Positioning Swivel Hook is designed to swivel when the aligning and positioning of the hook onto the pick point is required to secure the attachment to the load but is not allowed to be rotated under loading.

True Swivel Hook with Bearing is designed with a bearing which enables the 360°rotation under loading possible, which can prevent rigging from twisting under loading effectively.

Crane hooks, Crane hook blocks, Hook groups & Hook pulleys

What are the types of crane hooks? According to different standards, the crane hook blocks can be grouped into different types, including the the single hook and double hook, the forging hook and laminated hook, closed crane hook and semi-closed hook, and other featured crane hooks, such as, electric rotary crane hook, and European style crane hook, etc. etc. according to the different features, these types of crane hook groups are widely used in different applications.

Single hook & Double hook

In terms of crane hook shapes, the lifting hooks can be grouped in to single hook and double hook which can be selected according to your applications and lifting requirements.

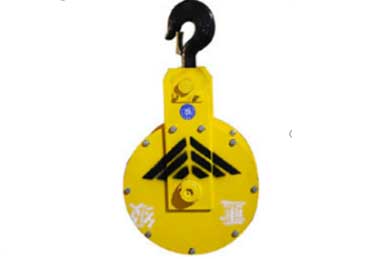

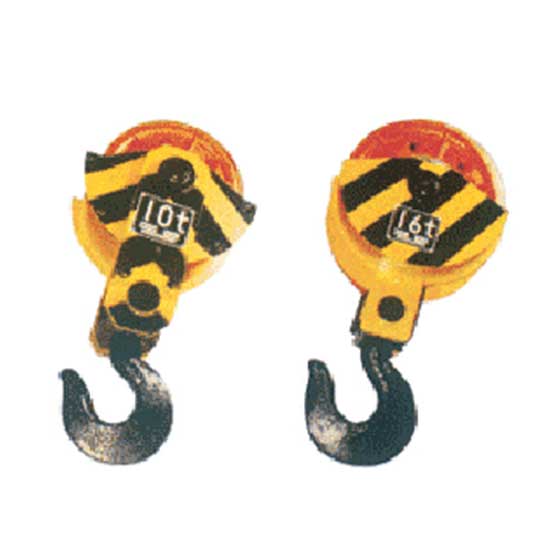

Single hook

Double hook

Single crane hook is a good solution when the lifting loads is below 75 tons with the features of simple, easy to use and wide selections. Double crane hooks provide superior bearing capacity which are widely used for heavier loads of over 75 tons. If you need tailored single hook and double hook design, please feel free to contact us to get particular hook design service.

Forging hook & Laminated Hook

How many types of crane hooks are there?According to the ways of processing,crane hooks can be classified into forging hooks andLaminated hooks.

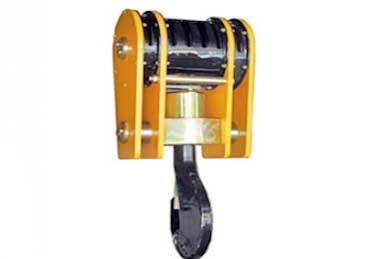

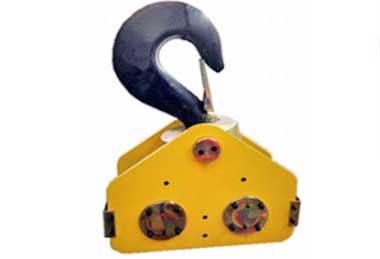

Forging hook block

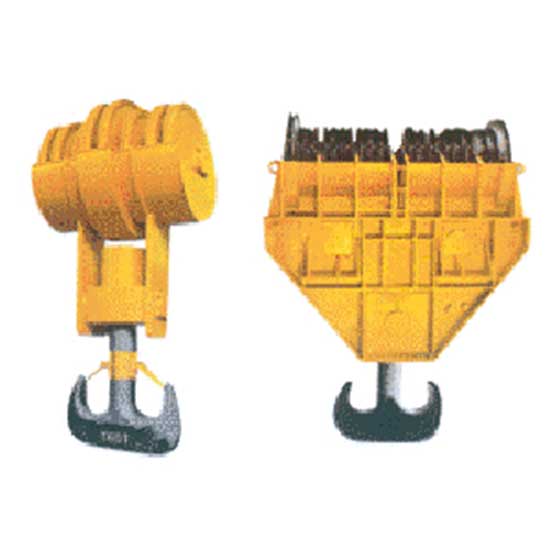

Double hook crane block

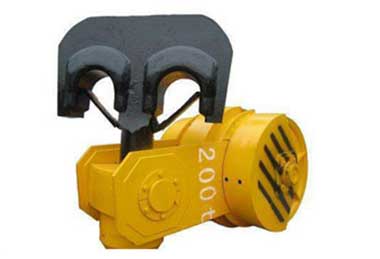

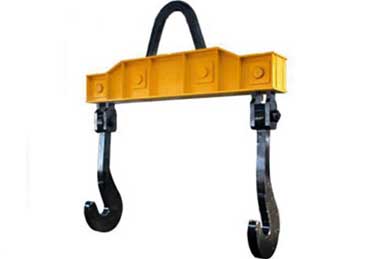

Laminated crane hook beam spreader

Forging Hook-The forged lifting hook is used for lifting loads with capacity below 75tons with single hook design and for heavier loads handling with double hook design. The forged crane hooks are made of high quality low carbon steel or low carbon alloy steel, such as16Mn,20MnSi,36MnSi, which is annealed after being forged with simple processing and easy operation however its stress condition is not as good as laminated hook. If you need tailored forging hook design, please feel free to contact us to get particular hook design service.

Laminated Hook-Laminated hook are made of several pieces of steel plates which are riveted to provide high safety when one individual steel plate has flaws, the whole crane hook still can work without being damaged. With high safety and large dead weight, laminated hook is usually adopted on heavy duty crane with large lifting capacity, such as, steel mill ladle cranes, etc.

Laminated hooks also can be classified into single hook design and double hook design. If you have any need, please feel free to contact us to get your tailored crane hook design.

Closed and semi-closed crane hook groups

For added security for heavy loads handling, you can select the right crane hook design from the semi-closed crane hook groups and full closed crane hook blocks.

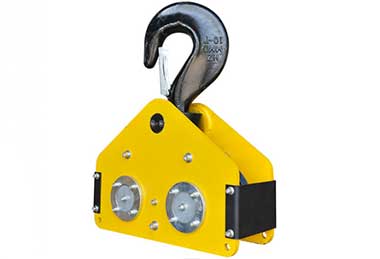

Closed crane hook group

Closed crane hook group

Closed Crane Hooks -The closed crane hook groups are somewhat difficult to install and take more time but provide thehighest possible safety and load bearing potential. If you need tailored closed crane hook design, please feel free to contact us to get particular hook design service.

Semi-Closed Crane Hooks -The semi-closed crane hook groups are designed to offer higher security levelscompared to standard crane hooks, and at same time offering reasonably simpler attachment and dismount than closed lifting hooks.If you need tailored semi-closed crane hook design, please feel free to contact us to get particular hook design service.

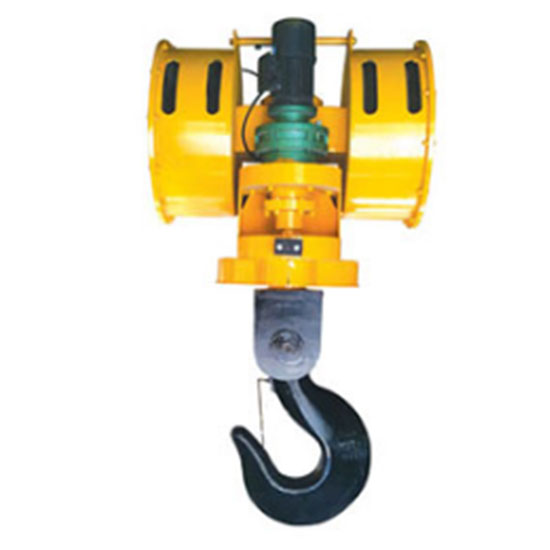

Electric rotary hook

Anelectric rotary hookis a sophisticated piece of crane hook block which helps to improve the manoeuvrability and effectiveness of overhead travelling cranes when handling containers.The electric rotary hook offers strong holding ability while rotating which isextremely convenient and productivewhen handling numerous containers in limited spaces.

Electric rotary hook

Electric rotary hook

The electric rotating hook blocks can be worked with other rigging accessories to change the lifting angle and the direction of rotation to provide high loading and unloading efficiency to meet the busy material handling working condition in applications such as in steel mills, docks, stations, pile yards, etc.If you need tailored electric rotary crane hook design, please feel free to contact us to get particular hook design service.

Crane Hook Safety Latches

Crane hook safety latches is a small but vital device which can secure your lifting safety during operation to prevent unexpected unhooking.The hook safety latches is made of locknut and color plated rust-proof thick steel plate,etc.

Crane hook

Hook safety latch

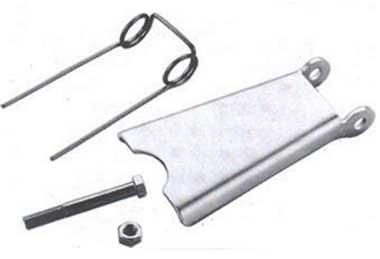

Self-Closing crane hook safety latch Kits

Self-closing crane hook safety latch kits are spring loaded hook latches which come as a standard part of a lifting hook or be added to the crane hook post-sale. The crane hook safe latch can be replaced when it is damaged. Self-closing safety latch kits is a perfect solution for most rigging applications however it is necessary to test the integrity of the hook safety latch when it comes into use especially when it is applied to the rugged and heavy-duty rigging applications

Positive latching hooks

A positive latching hook is a lifting hook with the hook safety latch as an integrated whole which is applied to heavy duty application. The positive latching hooks are virtually indestructible once the load is in the air, which cannot open until the lifting hook is no longer bearing the load. With the special hook design, the positive latching hooks can withstand even the most demanding application condition and a perfect solution for heavy-duty application.

Crane hook design service

If you need a hoist hook, crane hook, crane hook block, hook pulley or hook group for you overhead travelling cranes, please feel free to contact us. Tailored crane hook design and processing services are available, including independent hook design & hook fabrication, and hook processing based on given hook drawing, etc. Any tailored crane hook design is needed for your overhead travelling crane, gantry crane, jib crane, hoist crane, open winch crane or other process cranes, please feel free to contact us to get your particular hook design.
