Overview:
Engineered and manufactured by Yuantai Crane Machinery, this technical drawing package features a heavy-duty 2 Ton BZ Pillar Jib Crane (Model: BZ2t-4m A5). Built to ISO A5 medium-heavy duty standards, this custom lifting solution offers a 4.0m valid radius (center of column to arm end), 3.2m lifting height, and a total height capped at 4.3m. Equipped with a premium Dingchen European-style dual-speed electric chain hoist and full 360° VFD variable-speed motorized rotation, it provides smooth, precise, and reliable local material handling for heavy industrial applications.
Project & Technical Overview
- Equipment Type: BZ Pillar Jib Crane
- Model Number: BZ2t-4m A5
- Drawing Number: BZ2-4 A5
- Crane Manufacturer: Yuantai Crane Machinery
- Duty Class: ISO A5
- Control Method: Pendant control
- Lifting Mechanism: Dingchen European Electric Chain Hoist 2t (Dual Speed, Φ10mm Chain)
- Rotation & Travel Control: VFD Inverter Speed Control
- Key Dimensions: Valid Radius 4.0m (Center to Arm End), Total Height 4.3m, Lifting Height 3.2m, Hoist Headroom 600mm

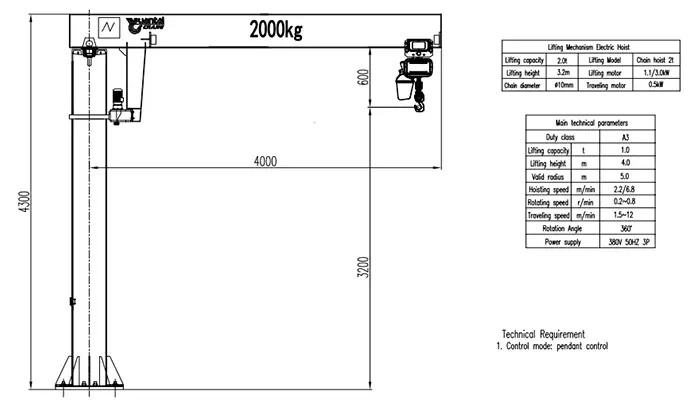

- PDF Drawing : 2 Ton Pillar Jib Crane Valid Radius 4.0m (Center to Arm End), Total Height 4.3m, Lifting Height 3.2m, Hoist Headroom 600mm
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | ISO A5 |
| Lifting Capacity | 2.0 t (2000 kg) |
| Lifting Height | 3.2 m |
| Valid Radius (Center to End) | 4.0 m |
| Hoisting Speed | 2.2 / 6.8 m/min (Dual Speed) |
| Rotating Speed | 0.2 ~ 0.8 r/min (VFD Inverter Control) |
| Traveling Speed | 1.5 ~ 12 m/min (VFD Inverter Control) |
| Rotation Angle | 360° (Motorized) |
| Power Supply | 380V / 50Hz / 3P |
| Total Height | 4300 mm (Max Limit) |
| Hoist Headroom / Clearance | 600 mm |
Lifting Mechanism & Motor Parameters
| Component / Parameter | Specification |
|---|---|
| Lifting Mechanism | Dingchen European Electric Chain Hoist |
| Lifting Model | Chain Hoist 2t |
| Chain Diameter | Φ 10 mm |
| Lifting Motor Power | 1.1 / 3.0 kW (Dual Speed Motor) |
| Traveling Motor Power | 0.5 kW |
Technical Requirement
Note:
- Control Mode: Pendant control.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Frequently Asked Questions on the Drawing
1. What is the difference between the 4.0m valid radius and the total arm length?
The 4.0m valid radius is the actual working reach measured from the center of the column to the arm end (hoist hook). The total beam length is slightly longer to account for the column and trolley clearance, so your effective lifting area is based on the 4.0m radius.
2. What is the maximum lifting height and total height of this 2T pillar jib crane?
The lifting height is 3.2m, with the total crane height capped at 4.3m and a hoist headroom/clearance of 600mm. This low-headroom design is ideal for workshops with strict vertical space constraints while still handling 2-ton loads.
3. What hoist and chain does this 2T jib crane use?
This crane is equipped with a premium Dingchen European-style dual-speed electric chain hoist (2t capacity) with a Φ10mm high-strength load chain and a 1.1/3.0kW dual-speed lifting motor, delivering smooth and precise heavy-load handling.
4. What is VFD variable-speed control and why is it important?
VFD (Variable Frequency Drive) inverter control allows smooth acceleration and deceleration of the 360° motorized rotation (0.2~0.8 r/min) and trolley travel (1.5~12 m/min). This minimizes load swinging and enables precise positioning of heavy 2-ton workpieces.
5. What power supply does this jib crane require?
This unit is designed for 380V / 50Hz / 3-phase power. It can be fully customized to 400V, 415V, 440V, or 60Hz to match your site's power standard on request.
6. What is the duty class of this jib crane and what does it mean?
This crane is built to ISO A5 medium-heavy duty standards, meaning it is designed for high-frequency, continuous multi-shift lifting operations—ideal for heavy machine tool loading, assembly lines, and fabrication workshops.
7. Can this jib crane be customized for my facility?
Yes. Capacity, valid radius, lifting height, rotation angle, motor power, control method, and foundation specs can all be tailored. Yuantai provides a free CAD layout drawing and quote within 24 hours.
How to Get Your Customized Yuantai Jib Crane
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Crane customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, valid radius / arm length, lifting height, rotation angle, and power supply. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, rotation speed, control methods, and foundation specs based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Pillar Jib Crane Solution
Yuantai Cranes provides customized BZ-Series of pillar jib crane solutions for factories, workshops, warehouses, assembly lines, and general industrial material handling. Each jib crane is configured according to the required capacity, valid radius, lifting height, rotation angle, duty class, building conditions, and operating environment.
Typical Technical Specifications:
- Capacity: 0.5–10 ton (This Model: 2.0 t)
- Valid Radius / Arm Length: 3–12 m (This Model: 4.0 m)
- Lifting Height: Customized according to application (This Model: 3.2 m / 4.3 m max total height)
- Rotation Angle: 180° / 270° / 360° (This Model: 360° Motorized)
- Duty Class: ISO A3–A5 (This Model: ISO A5)
- Hoist Type: Electric Chain Hoist / Electric Wire Rope Hoist (This Model: Dingchen European Dual Speed Electric Chain Hoist 2t, Φ10mm chain)
- Hoisting Speed: 2.2 / 6.8 m/min
- Rotating Speed: 0.2 ~ 0.8 r/min (VFD Variable Speed)
- Traveling Speed: 1.5 ~ 12 m/min (VFD Variable Speed)
- Control Method: Pendant Control / Radio Remote (This Model: Pendant Control)
- Power Supply: 380/400/415V, 50/60Hz, 3Ph (This Model: 380V 50Hz 3P)
- Lifting Motor Power: 1.1 / 3.0 kW
- Traveling Motor Power: 0.5 kW
- Lifting Attachments: Hook / C Hook / Magnetic / Grab / Spreader / Customized
- Applications: Workstations, assembly lines, heavy machine tool loading/unloading, maintenance bays, and fabrication workshops
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete pillar jib crane projects.
Engineering Support & Workshop Adaptability
Need a robust, high-duty local lifting solution for 2-ton heavy workpieces with strict height limits? This technical drawing illustrates how Yuantai Crane customizes heavy-duty ISO A5 pillar-mounted jib cranes with European-style hoists and VFD controls to fit precise plant constraints.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Strict vertical space constraints Requiring maximum hook travel under a strict total height ceiling of 4.3m. | Engineered low-headroom structural beam layout combined with a European compact electric hoist, optimizing lifting clearance. | Max Total Height: 4.3m | Lifting Height: 3.2m | Headroom: 600mm |
| Heavy 2-ton load with smooth Positioning Handling heavy workpieces safely without load swinging during movement. | Integrated Dingchen European dual-speed hoist with inverter-driven rotation and trolley travel motors for smooth acceleration and deceleration. | Capacity: 2.0t | VFD Rotation Speed: 0.2~0.8 r/min | VFD Travel Speed: 1.5~12 m/min |
| High-frequency, heavy-duty operation Requiring equipment that endures intense multi-shift production cycles. | Built to ISO A5 heavy-duty classification with robust Φ10mm load chain and high-power 1.1/3.0kW lifting motor. | Duty Class: ISO A5 | Lifting Motor: 1.1/3.0kW |
How to Evaluate If This Solution Fits Your Facility
- Height Check: Ensure your workshop clear height under roof trusses is at least 4.5 meters (total crane height is 4.3m).
- Radius & Coverage Check: The effective working radius is 4.0 meters from the center column to the arm end, offering full 360° coverage across an 8-meter diameter area.
- Foundation Requirement: Requires a heavy-duty reinforced concrete foundation slab or anchor-bolt pad designed to support 2.0t capacity and high rotational torque.
- Power Supply Compatibility: Pre-configured for 380V / 50Hz / 3P power supply (fully customizable to local site voltage standards).
Unsure If This Layout Fits Your Plant?
Send us your site dimensions (Available Height, Rotation Radius, and Capacity requirements). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
