Engineered and manufactured by Yuantai Crane Machinery, this technical drawing package features a heavy-duty 2 Ton BZ Mobile Trackless Pillar Jib Crane (Model: BZ2t-3.5m A5). Built to ISO A5 duty standards with IP55 motor protection, this flexible, wheel-mounted mobile lifting solution requires no fixed foundation. It provides a 3.5m valid radius, 2.2m lifting height, full 360° motorized jib rotation, and a trackless electric drive base for seamless relocation across factory floors and open workshop bays.
Project & Technical Overview
- Equipment Type: Mobile Trackless Pillar Jib Crane
- Model Number: BZ2t-3.5m A5
- Crane Manufacturer: Yuantai Crane Machinery
- Duty Class & Protection: ISO A5 / IP55 Motor Enclosure
- Control Method: Pendant control & Remote control
- Lifting Mechanism: Electric Chain Hoist 2t
- Mobility System: Trackless Electric Motorized Traveling Base
- Key Dimensions: Valid Radius 3.5m, Total Beam Length approx. 4.2m, Lifting Height 2.2m

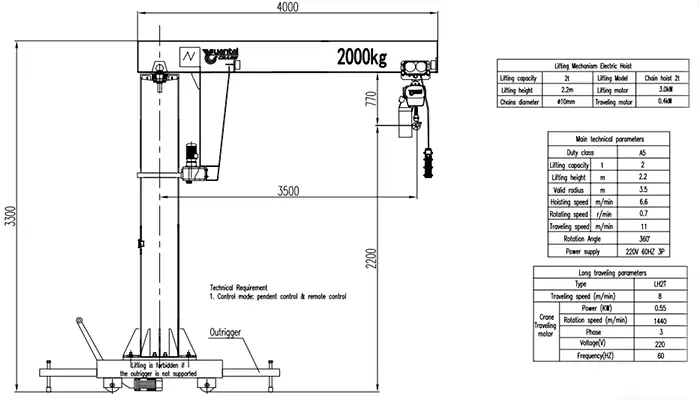

- PDF Drawing:BZ 2 Ton Mobile Trackless Pillar Jib Crane Drawing - BZ2t-3.5m A5
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | ISO A5 |
| Protection Rating | IP55 (Full Crane Motors) |
| Lifting Capacity | 2.0 t (2000 kg) |
| Lifting Height | 2.2 m |
| Valid Radius | 3.5 m |
| Rotation Angle | 360° (Motorized Electric Rotation) |
| Mobility Mechanism | Trackless Electric Motorized Base (No Rail Needed) |
| Power Supply | 380V - 415V / 50Hz / 3P (Customizable) |
| Control Voltage | 24V / 36V Safety Voltage |
Lifting Mechanism & Motor Parameters
| Component / Parameter | Specification |
|---|---|
| Lifting Mechanism | Electric Chain Hoist 2t |
| Hoisting Duty Rating | ISO A5 |
| Motor Protection Grade | IP55 (Dust-proof and Water-resistant) |
| Base Drive Motors | Heavy-Duty Electric Drive Motors for Trackless Travel |
| Safety Features | Overload Limiter, Limit Switches, Emergency Stop Button |
Technical Requirement
Note:
- Control Mode: Pendant control & wireless remote control.
- Site Floor Requirement: Ground must be smooth, reinforced concrete flat floor suitable for trackless wheel movement.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Frequently Asked Questions on the Drawing
1. What makes this 2T pillar jib crane "mobile and trackless"?
Unlike a standard fixed pillar jib crane, this model is mounted on a self-contained weighted mobile chassis with trackless electric drive motors. It requires no foundation pit, anchor bolts, or floor rails—so it can be repositioned freely across your factory floor or between work bays.
2. What is the maximum lifting height and valid radius of this mobile jib crane?
The lifting height is 2.2m with a 3.5m valid radius, providing full 360° motorized rotation coverage for a 7.0m diameter working circle. It is ideal for low-headroom workshops and multi-station handling.
3. What does ISO A5 duty class and IP55 protection mean for this crane?
ISO A5 is a heavy-duty rating, meaning the crane is designed for frequent, continuous multi-shift lifting operations. IP55 motor protection makes all crane motors dust-proof and water-resistant, suitable for harsh or outdoor environments.
4. What are the floor requirements for operating this mobile jib crane?
The workshop floor must be smooth, flat, and made of reinforced concrete capable of supporting the point load of the heavy mobile wheels under a 2.0t capacity. No foundation pit, embedded bolts, or floor rails are required.
5. What power supply and control options are available?
This unit is pre-configured for 380V–415V / 50Hz / 3-phase power with a 24V/36V safety control voltage. It comes with pendant control and wireless remote control, and can be customized with a power cable reel or battery power system.
6. What safety features are included on this mobile jib crane?
The crane includes an overload limiter, upper/lower limit switches, and an emergency stop button. The 360° motorized rotation and trackless electric drive base are also engineered for stable, controlled movement during precision positioning.
7. Can this mobile jib crane be customized for my facility?
Yes. Capacity, valid radius, lifting height, rotation angle, motor power, control method, and mobility base specs can all be tailored. Yuantai provides a free CAD layout drawing and quote within 24 hours.
How to Get Your Customized Yuantai Jib Crane
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Crane customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, valid radius / arm length, lifting height, rotation angle, and power supply. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, rotation speed, control methods, and foundation specs based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Mobile Pillar Jib Crane Solution
Yuantai Cranes provides customized BZ-Series of mobile pillar jib crane solutions for factories, workshops, warehouses, assembly lines, and general industrial material handling. Each jib crane is configured according to the required capacity, valid radius, lifting height, rotation angle, duty class, building conditions, and operating environment.
Typical Technical Specifications:
- Capacity: 0.5–2.0 ton (This Model: 2.0 t)
- Valid Radius / Arm Length: 2–6 m (This Model: 3.5 m)
- Lifting Height: Customized according to application (This Model: 2.2 m)
- Rotation Angle: 180° / 270° / 360° (This Model: 360° Motorized)
- Duty Class: ISO A3–A5 (This Model: ISO A5)
- Protection Grade: IP54 / IP55 (This Model: Full IP55 Motors)
- Hoist Type: Electric Chain Hoist (This Model: Electric Chain Hoist 2t)
- Mobility: Trackless Electric Drive Base (No Foundation Pit Required)
- Control Method: Pendant Control / Radio Remote
- Power Supply: 380/400/415V, 50/60Hz, 3Ph
- Applications: Multi-workstation operations, leased workshops without standard foundations, maintenance bays, and flexible assembly lines
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete pillar jib crane projects.
Engineering Support & Workshop Adaptability
Need a highly flexible lifting solution that can move between multiple work bays without installing embedded foundation bolts or laying floor tracks? This technical drawing illustrates how Yuantai Crane customizes mobile trackless pillar-mounted jib cranes to deliver flexible material handling across versatile plant environments.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Leased workshop / No civil foundation permitted Ideal for rented industrial halls or locations where digging or pouring concrete foundations is forbidden. | Self-contained weighted mobile chassis base with trackless electric motor drive, allowing complete repositioning around the facility. | Mobile Trackless Base (Model: BZ2t-3.5m A5) |
| Heavy duty cycle & outdoor/harsh environment Requiring high durability against dust, moisture, and continuous multi-shift production. | Heavy-duty ISO A5 rating combined with full IP55 motor protection class to withstand dust, water spray, and continuous workloads. | ISO A5 Duty Class / IP55 All-Motor Protection |
| Full 360° coverage across multiple stations Handling up to 2-ton loads within a flexible 3.5m radius area. | Motorized 360° rotation gear with smooth speed control and dual remote/pendant operation for maximum operator safety. | Rotation Angle: 360° | Capacity: 2.0 t | Valid Radius: 3.5m |
How to Evaluate If This Solution Fits Your Facility
- Floor Flatness & Bearing Capacity: Ensure the workshop concrete floor is smooth, flat, and capable of handling the point load of heavy mobile wheels under a 2.0t capacity.
- Radius & Coverage Check: The effective working radius is 3.5 meters, offering complete 360° rotation coverage for a 7.0-meter diameter working circle at any station.
- Height Clearance Check: Ensure your clear ceiling or truss height allows unhindered travel with a lifting height of 2.2 meters.
- Power Supply Compatibility: Pre-configured for 380V–415V / 50Hz / 3P with option for power cable reel or battery power system customization.
