Engineered and manufactured by Yuantai Crane Machinery, this technical drawing package features a 1 Ton BZ Pillar Jib Crane (Model: BZ1t-7m A3) designed for outdoor material handling applications. Built to ISO A4 medium-duty standards, this custom lifting solution offers a 6.4m valid radius (7.0m total beam length), 4.75m lifting height, 5.95m total height (5.4m beam bottom height), and a full 360° motorized rotation angle equipped with a dual-speed electric chain hoist for flexible, precise, and reliable local material handling.
Project & Technical Overview
- Equipment Type: BZ Pillar Jib Crane (Outdoor Duty)
- Model Number: BZ1t-7m A3
- Drawing Number: BZ1-7 A3
- Crane Manufacturer: Yuantai Crane Machinery
- Duty Class: ISO A4
- Control Method: Pendant control
- Lifting Mechanism: Dual-Speed Electric Chain Hoist (Single Fall, Φ7.1mm) with Overload Limiter
- Key Dimensions: Total Beam Length 7.0m, Valid Radius 6.4m, Total Height 5.95m, Beam Bottom Clearance 5.4m, Lifting Height 4.75m

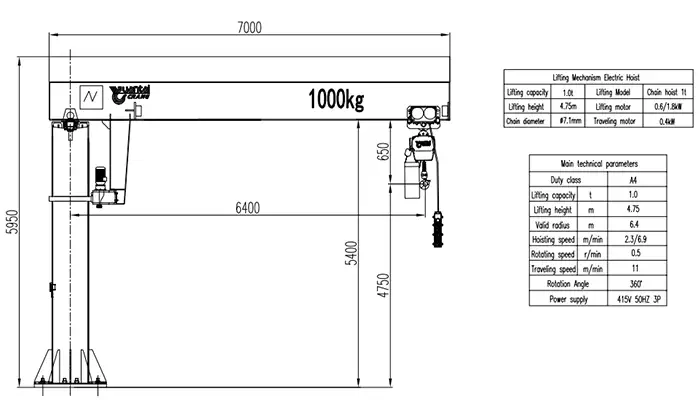

- Click to check the PDF drawing of Yuantai Crane BZ 1t Pillar Jib Crane Drawing (Valid Radius 6.4m, Lifting Height 4.75m, ISO A4)
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | ISO A4 |
| Lifting Capacity | 1.0 t (1000 kg) |
| Lifting Height | 4.75 m |
| Valid Radius | 6.4 m |
| Hoisting Speed | 2.3 / 6.9 m/min (Dual Speed) |
| Rotating Speed | 0.5 r/min |
| Traveling Speed | 11 m/min (Single Speed) |
| Rotation Angle | 360° (Motorized Rotation) |
| Power Supply | 415V / 50Hz / 3P |
| Total Beam Length | 7000 mm |
| Beam Bottom to Ground Height | 5400 mm |
| Total Height | 5950 mm |
| Hoist Headroom / Clearance | 650 mm |
| Total Crane Weight | 1.9 t (approx.) |
Lifting Mechanism & Motor Parameters
| Component / Parameter | Specification |
|---|---|
| Lifting Mechanism | WANBO Electric Chain Hoist (Outdoor Specification) |
| Lifting Model | Chain Hoist 1t (Single Fall) |
| Chain Diameter | Φ 7.1 mm |
| Safety Protection | Integrated Overload Protection Device |
| Lifting Motor Power | 0.6 / 1.8 kW (Dual Speed Motor) |
| Traveling Motor Power | 0.4 kW |
Technical Requirement
Note:
- Control Mode: Pendant control.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Frequently Asked Questions on the Drawing
1. What is the difference between the 6.4m valid radius and the 7.0m total beam length?
The 7.0m total beam length is the physical length of the jib arm, while the 6.4m valid radius is the actual working reach from the pillar center to the hoist hook. The remaining 0.6m accounts for the pillar and trolley clearance, so your effective lifting area is based on the 6.4m radius.
2. What is the maximum lifting height of this 1T pillar jib crane?
The lifting height is 4.75m, with a total crane height of 5.95m and a beam bottom-to-ground clearance of 5.4m. The hoist headroom/clearance is 650mm, making it suitable for outdoor yards and tall workshops requiring higher vertical lift.
3. What power supply does this jib crane require?
This unit is designed for 415V / 50Hz / 3-phase power. It can be fully customized to 380V, 400V, 440V, or 60Hz to match your site's power standard on request.
4. What control options are available for operating the crane?
This model comes with pendant control, and radio remote control is available as an option. The 360° motorized rotation at 0.5 r/min and dual-speed electric chain hoist (2.3/6.9 m/min) provide flexible and precise handling from a safe distance.
5. What is the duty class of this jib crane and what does it mean?
This crane is built to ISO A4 medium-duty standards, meaning it is designed for moderate-frequency lifting operations with a longer service life than light-duty A3 cranes—ideal for outdoor material handling, loading bays, and fabrication yards.
6. Can this jib crane be customized for my outdoor site?
Yes. Capacity, valid radius, lifting height, rotation angle, motor power, control method, and foundation specs can all be tailored. Yuantai provides a free CAD layout drawing and quote within 24 hours.
How to Get Your Customized Yuantai Jib Crane
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Crane customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, valid radius / arm length, lifting height, rotation angle, and power supply. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, rotation speed, control methods, and foundation specs based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Pillar Jib Crane Solution
Yuantai Cranes provides customized BZ-Series of pillar jib crane solutions for factories, workshops, warehouses, assembly lines, and general industrial material handling. Each jib crane is configured according to the required capacity, valid radius, lifting height, rotation angle, duty class, building conditions, and operating environment.
Typical Technical Specifications:
- Capacity: 0.5–10 ton (This Model: 1.0 t)
- Valid Radius / Arm Length: 3–12 m (This Model: 6.4 m / 7.0 m total beam)
- Lifting Height: Customized according to application (This Model: 4.75 m / 5.95 m total height)
- Rotation Angle: 180° / 270° / 360° (This Model: 360° Motorized)
- Duty Class: ISO A3–A5 (This Model: ISO A4)
- Hoist Type: Electric Chain Hoist / Electric Wire Rope Hoist (This Model: Dual Speed Electric Chain Hoist 1t, Φ7.1mm single chain)
- Hoisting Speed: 2.3 / 6.9 m/min
- Rotating Speed: 0.5 r/min
- Traveling Speed: 11 m/min
- Control Method: Pendant Control / Radio Remote (This Model: Pendant Control)
- Power Supply: 380/400/415V, 50/60Hz, 3Ph (This Model: 415V 50Hz 3P)
- Lifting Motor Power: 0.6 / 1.8 kW
- Traveling Motor Power: 0.4 kW
- Lifting Attachments: Hook / C Hook / Magnetic / Grab / Spreader / Customized
- Applications: Workstations, outdoor yards, machine tool loading/unloading, maintenance bays, and fabrication workshops
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete pillar jib crane projects.
Engineering Support & Workshop Adaptability
Need an efficient local lifting solution for a dedicated outdoor workstation or open-air assembly bay without depending on building walls or overhead bridge cranes? This technical drawing illustrates how Yuantai Crane customizes self-standing pillar-mounted jib cranes to deliver flexible 360° coverage for outdoor operations.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Extended coverage area without building support Ideal for outdoor storage yards, open floor spaces, or heavy localized material positioning. | Self-standing heavy-duty pillar base design fixed directly to reinforced foundation, providing full 360° rotation independence over an extended 6.4m radius. | 5.95m Total Height / 6.4m Valid Radius pillar jib design (Model: BZ1t-7m A3) |
| Dual-speed precise positioning & high lifting height Requiring precise load handling with high vertical lifting distance in outdoor environments. | Integrated WANBO dual-speed electric chain hoist with 0.6/1.8kW dual-speed motor and 650mm compact headroom design. | Lifting height: 4.75m with dual hoisting speeds (2.3/6.9 m/min) |
| Full 360° motorized rotation Handling goods smoothly across a wide working radius with safety protection. | Controlled motorized rotation mechanism with steady 0.5 r/min rotation speed and integrated overload protection. | Rotation Angle: 360° | Rotating Speed: 0.5 r/min | Overload Limit Included |
| Outdoor durability & safety operation Designed to withstand outdoor working conditions with robust chain mechanism. | Single-fall Φ7.1mm high-strength load chain with pendant control system tailored for outdoor environments. | Pendant control with 0.6/1.8kW lifting & 0.4kW traveling motors |
How to Evaluate If This Solution Fits Your Facility
- Height Check: Ensure your outdoor clear height under any overhead structures or trusses is greater than 6.2 meters (equipment total height: 5.95m, allowing proper top clearance).
- Radius & Coverage Check: The effective working radius is 6.4 meters with a 7.0m total beam length, providing full 360° rotation coverage for a 12.8-meter diameter circular area.
- Foundation Requirement: Requires a reinforced concrete foundation slab or dedicated bolt-embedded foundation pad capable of supporting 1.0t safe working load and dynamic rotation moment.
- Power Supply Compatibility: Pre-configured for 415V / 50Hz / 3P power input (can be 100% customized to 380V, 400V, 440V, or 60Hz per your site power standard).
