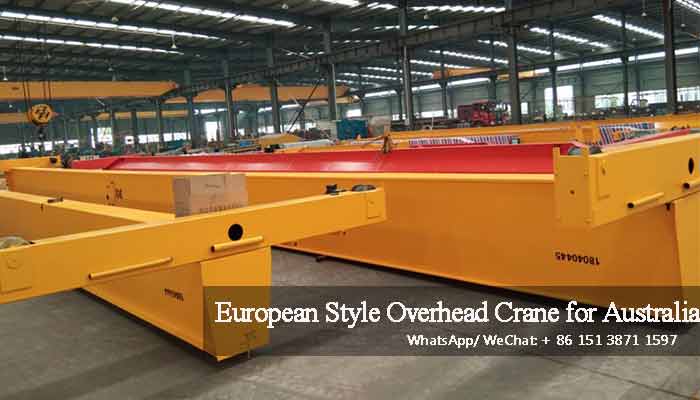

Remote Control Overhead Cranes for Melbourne Australia
Advanced European Style Electric Hoists 5Ton, 3 Ton + 3 Ton
Advanced overhead crane, dual electric hoists, remote control, lifting up & down at same time. Check remote control overhead crane specifications now.
Basics of European style electric hoist crane for sale Australia
- Crane Type：European style electric hoist remote control overhead crane
- Date of Placing Oder： 2018-6-04
- Date of Delivery ： 2018-7-3
- Way of Transportation： 40GP container * 2,By Sea
- Way of Payment：50% TT prepaid, 50% paid before shipment
- Destination country： Australia
- Destination port：CIF Melbourne
- First Contact： 2018-2
General requirements & overhead crane main specifications
Crane type | European style single girder electric hoist overhead crane | |
Model | HD | HD |
Working Class | A5 | A5 |
Capacity | 3 ton + 3 ton( click to learn more on double hoist overhead crane) | |
Span length (m) | 22.28 m | 22.28 m |
Lifting Height（M） | 5 m | 5 m |
Crane control | Remote control | Remote control |
Voltage | 4150v,50hz,3p | 4150v,50hz,3p |
Color | Standard | Standard |
Quantity | 1 | 1 |
Crane motor | SZW | SZW |
Hoist motor | ABM | ABM |
Customized features of electric hoist bridge crane for Australia
- 1.HD type FEM standard advanced single girder overhead with two trolleys 3 ton +3 ton, equipped with 1 remote control. The two electric wire rope hoists hoists are required to lift up and lower at the same time, 2 remote controls are used to control two electric hoists independently
- 2. P30 crane track, a total of 100 meters (50 meters on each side), 14 pairs of clamping plates, 336 pressure plates
- 3. Supporting columns of the electric hoist overhead cranes are H250～450*220*10*14, 16 in total
- 4. Rail bearing beam model H650*350*8*14*240*12, a total of 14, each 7.25 meters
- 5. seamless sliding line, 10 mm2, a total of 50 meters.
- 6.2 collectors
- 7. One set of remote control will be sent free of charge for each set of HD type overhead bridge crane as a backup.
- 8. The 22.5 long main girder of single girder overhead crane needs to be cut.
Customs declaration information registration
- The actual Chinese and English name of the goods: Overhead crane
- Chinese and English name of cargo declaration: Overhead crane
- Inland freight: USD1250. 5
- Others: USD1500
- Sea freight: USD3100
Gallary of remote control overhead crane for Australia

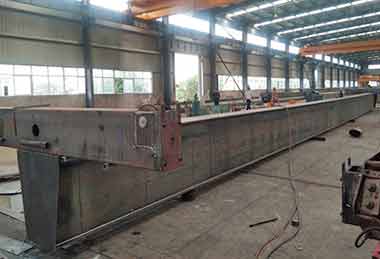

Production of main girder of remote control overhead crane for sale Australia

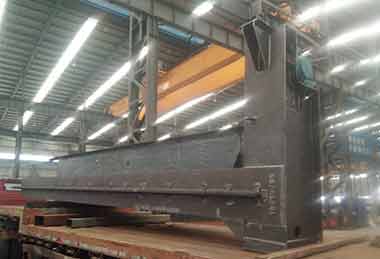

Production of main girder of remote control overhead crane for sale Australia

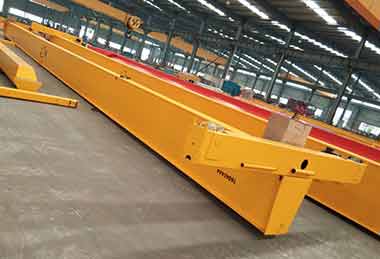

Painted main girder of European style single girder overhead crane for sale Australia

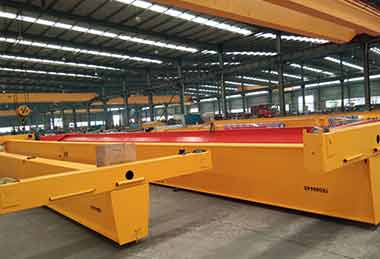

Painted main girder of European style single girder overhead crane for sale Australia

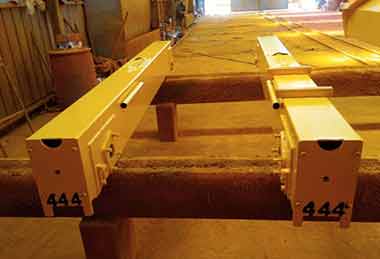

Painted end girder of European style single girder overhead bridge crane for sale Australia

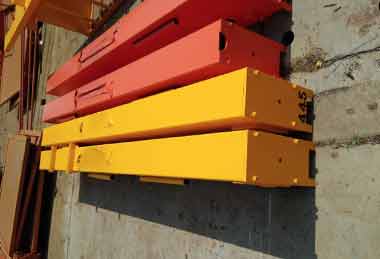

Painted end carriages of European style single girder overhead travelling crane for sale Australia

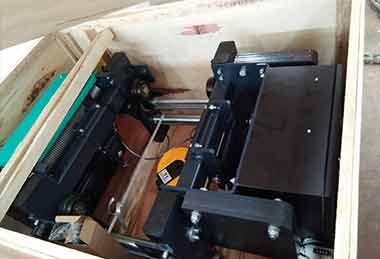

European style low head room electric hoist for single girder overhead crane for sale Australia

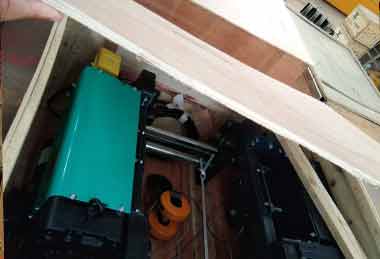

European style low head room electric hoist for single girder overhead crane for sale Australia
